Package net.paulhertz.pixelaudio.example

Class ArgosyMixer

java.lang.Object

processing.core.PApplet

net.paulhertz.pixelaudio.example.ArgosyMixer

All Implemented Interfaces:

processing.core.PConstants

public class ArgosyMixer
extends processing.core.PApplet

ArgosyMixer demonstrates how the Argosy class can create and animate patterns and save them to video. This is experimental code.

The Argosy class turns arrays of integers into color patterns. It steps through the Pattern array to create blocks of pixels and assigns color to the blocks as it steps through the Colors arrays. The arrays don't have to be the same size--this creates variations in the pattern color sequences. For example, we might have blocks that are [5, 3, 8] units and assign them just two colors, say black and white:

    |    5     |  3   |       8        |    5     |  3   |       8        |
    |    B     |  W   |       B        |    W     |  B   |       W        |


As you can see, the two patterns together generate a larger repeating unit. If the "Repeat" filed in the GUI is set to 0, the patterns fill the Argosy array, which is the same size as the pixels[] array for the display image. A non-zero Repeat value determines how many times the pattern repeats. The way the Argosy array fills the display image is determined by the Map parameter. The map is a PixelAudioMapper determined by a PixelMapGen: basically, it creates a path (the "signal path") that visits every pixel in the display image once. Experiment with the GUI Map menu to find out more about how paths work. Read PixelAudioMapper and PixelMapGen documentation if you want detailed information. You can also browse the code for quite a few MultiGen PixelMapGens in this sketch and in the static methods appended to PixelAudio PixelMapGen classes.

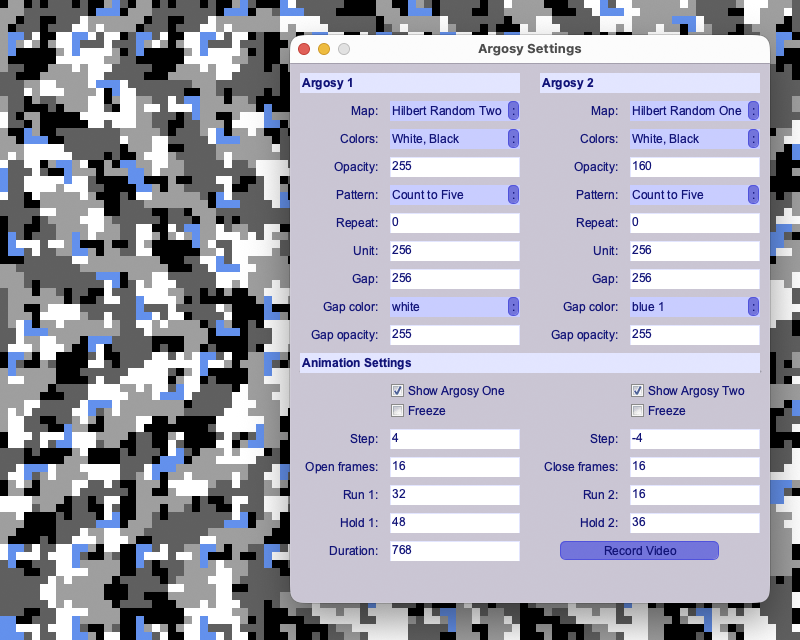

ArgosyMixer provides a GUI for modifying argosy and animation parameters, plus a series of key commands that can shift patterns along the signal path. There are two Argosy patterns involved: the top one, Argosy 2, is transparent (Opacity = 127, initially).

In the GUI, the following parameters are exposed for each Argosy pattern:

   Map          -- select the PixelMapGen for each Argosy instance
   Colors       -- select a preset palette from a drop down list
   Opacity      -- opacity of the colors in the palette, 0-255
   Pattern      -- select a preset numeric pattern from a drop down list
   Repeat       -- number of times to repeat the pattern; enter 0 for maximum repetitions
   Unit         -- the number of pixels in each unit of the pattern
   Gap          -- the number of pixels between each repeated pattern
   Gap color    -- select a preset gap color from a drop down list
   Gap opacity  -- enter the alpha channel value 0-255 for the gap color
   == ANIMATION ==
   Show         -- show or hide Argosy 1 or Argosy 2
   Freeze       -- freeze animation of Argosy 1 or Argsoy 2
   Step         -- number of pixels to shift on each animation step (negative to shift right)
   Open frames  -- number of frames to hold at animation start, applies both Argosy 1 and Argosy 2
   Close frames -- number of frames to hold at animation end, applies to both Argsoy 1 and Argosy 2
   Run frames   -- number of frames to animate before a hold, sets Argosy 1 and Argosy 2 separately
   Hold frames  -- number of frames to hold after a run of frames, sets Argosy 1 and Argosy 2 separately
   Duration     -- number of frames in the animation
   Record Video -- press to run and record animation from current display


I suggest you start by experimenting with the patterns "The One" and "One-one". They create repeating patterns of one or two elements. Setting the Unit value (the number of pixels in each pattern element) to a power of 2 or a sum of powers of 2 is a good place to start, especially with the Hilbert PixelMapGens in the Map menu.

Click on the image to hear the sounds made by the patterns with sampling rate 48KHz. The patterns produce step or pulse (square) waves, so they are buzzy. Opacity will change how loud the sound is.

You can create stereo drones with the 'e' command, which creates a series of audio events along the points of an ellipse.

Press the spacebar to start or stop animation.


 --------------------------------------------------------------------------------------------
 ***++ NOTE: Key commands only work when the image display window is the active window. ++***
 --------------------------------------------------------------------------------------------

 Key Commands

 Press ' ' to trigger audio at the current mouse position.
 Press TAB to toggle animation.
 Press 'e' to trigger elliptical trail of audio events.
 Press 'a' to shift left one argosy unit.
 Press 'A' to shift right one argosy unit.
 Press 'b' to shift left one argosy length.
 Press 'B' to shift right one argosy length.
 Press 'c' to shift left one argosy length + argosy gap.
 Press 'C' to shift right one argosy length + argosy gap.
 Press 'd' to advance one animation step.
 Press 'D' to go back one animation step.
 Press 'g' or 'G' to set the pixelShift of argosies to zero (reset return point).
 Press 'l' to shift argosies left one animation step.
 Press 'L' to shift argosies left one animation step.
 Press 'r' to shift argosies right one animation step.
 Press 'R' to shift argosies right one animation step.
 Press 'p' to shift argosies left one pixel.
 Press 'P' to shift argosies right one pixel.
 Press 'f' to freeze changes to argosy 1.
 Press 'F' to freeze changes to argosy 2.
 Press 'i' or 'I' to show stats about argosies.
 Press 'S' to save current Argosy signals to a stereo WAV file.
 Press 's' to save current display to a PNG file.
 Press 'u' or 'U' to reinitialize any argosies that aren't frozen.
 Press 'v' or 'V' to toggle video recording.
 Press 'w' to reset animation tracking.
 Press 'W' to reset animation tracking.
 Press 'z' to reset argosy 1 to initial position.
 Press 'Z' to reset argosy 2 to initial position.
 Press 'h' or 'H' to show help message in console.



TODO save two image files, two audio files -- one for each Argosy

Field Summary

Fields

Modifier and Type	Field	Description
(package private) ADSRParams	adsr1
(package private) ADSRParams	adsr2
(package private) g4p_controls.GLabel	alpha1Label
(package private) g4p_controls.GTextField	alpha1Text
(package private) g4p_controls.GLabel	alpha2Label
(package private) g4p_controls.GTextField	alpha2Text
(package private) g4p_controls.GLabel	animationLabel
(package private) ArrayList<TimedLocation>	animationLocsArray
(package private) int	animClose
(package private) g4p_controls.GLabel	animCloseLabel
(package private) g4p_controls.GTextField	animCloseText
(package private) int	animDuration
(package private) g4p_controls.GLabel	animDurationLabel
(package private) g4p_controls.GTextField	animDurationText
(package private) int	animHold1
(package private) int	animHold2
(package private) g4p_controls.GLabel	animHoldLabel1
(package private) g4p_controls.GLabel	animHoldLabel2
(package private) g4p_controls.GTextField	animHoldText1
(package private) g4p_controls.GTextField	animHoldText2
(package private) int	animOpen
(package private) g4p_controls.GLabel	animOpenLabel
(package private) g4p_controls.GTextField	animOpenText
(package private) int	animRun1
(package private) int	animRun2
(package private) g4p_controls.GLabel	animRunLabel1
(package private) g4p_controls.GLabel	animRunLabel2
(package private) g4p_controls.GTextField	animRunText1
(package private) g4p_controls.GTextField	animRunText2
(package private) int	animstep1
(package private) int	animstep2
(package private) ArrayList<processing.core.PVector>	aniPoints
(package private) Argosy	argo1
(package private) int	argo1Alpha
(package private) ddf.minim.MultiChannelBuffer	argo1Buffer
(package private) int[]	argo1Colors
(package private) g4p_controls.GCheckbox	argo1Freeze
(package private) int	argo1Gap
(package private) int	argo1GapAlpha
(package private) int	argo1GapColor
(package private) int	argo1GapColorIndex
(package private) PixelMapGen	argo1Gen
(package private) int	argo1GenSelect
(package private) processing.core.PImage	argo1Image
(package private) boolean	argo1IsCentered
(package private) g4p_controls.GLabel	argo1Label
(package private) PixelAudioMapper	argo1Mapper
(package private) int	argo1PaletteSelect
(package private) int[]	argo1Pattern
(package private) int	argo1PatternSelect
(package private) int	argo1PixelCount
(package private) int	argo1Reps
(package private) int	argo1SamplePos
(package private) g4p_controls.GCheckbox	argo1Show
(package private) float[]	argo1Signal
(package private) int	argo1Step
(package private) PASamplerInstrument	argo1Synth
(package private) int	argo1Unit
(package private) Argosy	argo2
(package private) int	argo2Alpha
(package private) ddf.minim.MultiChannelBuffer	argo2Buffer
(package private) int[]	argo2Colors
(package private) g4p_controls.GCheckbox	argo2Freeze
(package private) int	argo2Gap
(package private) int	argo2GapAlpha
(package private) int	argo2GapColor
(package private) int	argo2GapColorIndex
(package private) PixelMapGen	argo2Gen
(package private) int	argo2GenSelect
(package private) processing.core.PImage	argo2Image
(package private) boolean	argo2IsCentered
(package private) g4p_controls.GLabel	argo2Label
(package private) PixelAudioMapper	argo2Mapper
(package private) int	argo2PaletteSelect
(package private) int[]	argo2Pattern
(package private) int	argo2PatternSelect
(package private) int	argo2PixelCount
(package private) int	argo2Reps
(package private) int	argo2SamplePos
(package private) g4p_controls.GCheckbox	argo2Show
(package private) float[]	argo2Signal
(package private) int	argo2Step
(package private) PASamplerInstrument	argo2Synth
(package private) int	argo2Unit
(package private) int	argoStep
(package private) g4p_controls.GLabel	argoStepLabel1
(package private) g4p_controls.GLabel	argoStepLabel2
(package private) g4p_controls.GTextField	argoStepText1
(package private) g4p_controls.GTextField	argoStepText2
(package private) int	audioLength
(package private) ddf.minim.AudioOutput	audioOut
(package private) int	bgColor
(package private) int	black
(package private) int[]	blackAlone
(package private) int[]	blackGrayWhite
(package private) int[]	blackWhite
(package private) int	blanc
(package private) int	blau
(package private) int	blau2
(package private) int[]	blueCream
(package private) PixelAudioMapper.ChannelNames	chan
(package private) String[]	colorItems
(package private) g4p_controls.GDropList	colorMenu1
(package private) g4p_controls.GDropList	colorMenu2
(package private) g4p_controls.GLabel	colorsLabel1
(package private) g4p_controls.GLabel	colorsLabel2
(package private) int[][]	colorVars
(package private) g4p_controls.GWindow	controlWindow
(package private) int	count
(package private) int[]	countToFive
(package private) int[]	creamBlue
(package private) int	currentFrame
(package private) int[]	espectroOcho
(package private) int[]	espectroSeis
(package private) int[]	fiboLSystem55
(package private) int[]	fibonacciNums
(package private) int	fileIndex
(package private) int[]	fiveColor
(package private) AffineTransformType	flipx
(package private) AffineTransformType	flipy
(package private) int[]	fourColor
(package private) int[]	fourPower
(package private) AffineTransformType	fx270
(package private) AffineTransformType	fx90
(package private) g4p_controls.GTextField	gap1Text
(package private) g4p_controls.GTextField	gap2Text
(package private) g4p_controls.GLabel	gapAlpha1Label
(package private) g4p_controls.GTextField	gapAlpha1Text
(package private) g4p_controls.GLabel	gapAlpha2Label
(package private) g4p_controls.GTextField	gapAlpha2Text
(package private) String[]	gapColorItems
(package private) g4p_controls.GLabel	gapColorLabel1
(package private) g4p_controls.GLabel	gapColorLabel2
(package private) g4p_controls.GDropList	gapColorMenu1
(package private) g4p_controls.GDropList	gapColorMenu2
(package private) int[]	gapColorVars
(package private) g4p_controls.GLabel	gapLabel1
(package private) g4p_controls.GLabel	gapLabel2
(package private) String[]	genItems
(package private) g4p_controls.GLabel	genLabel1
(package private) g4p_controls.GLabel	genLabel2
(package private) g4p_controls.GDropList	genMenu1
(package private) g4p_controls.GDropList	genMenu2
(package private) int	grana
(package private) int	gray
(package private) int[]	grayRamp
(package private) int[]	grayTriangle
(package private) int	gris
(package private) int	groc
(package private) int	holdCount1
(package private) int	holdCount2
(package private) int	imageHeight
(package private) int	imageWidth
(package private) int	inc
(package private) boolean	isAnimating
(package private) boolean	isArgo1Freeze
(package private) boolean	isArgo2Freeze
(package private) boolean	isBufferStale
(package private) boolean	isLooping
(package private) boolean	isRecordingVideo
(package private) boolean	isSavePatterns
(package private) boolean	isShowArgo1
(package private) boolean	isShowArgo2
(package private) int[]	lucasNums
(package private) processing.core.PImage	mapImage
(package private) int	mapSize
(package private) ddf.minim.Minim	minim
(package private) int[]	multicolor
(package private) AffineTransformType	nada
(package private) int	negre
(package private) int	noteDuration
(package private) int[]	oddOneToSeven
(package private) int[]	oneOne
(package private) float	outputGain
(package private) float	panning
(package private) String[]	patternItems
(package private) g4p_controls.GLabel	patternLabel1
(package private) g4p_controls.GLabel	patternLabel2
(package private) g4p_controls.GDropList	patternMenu1
(package private) g4p_controls.GDropList	patternMenu2
(package private) int[][]	patternVars
(package private) float	pitchScaling
(package private) PixelAudio	pixelaudio
(package private) AffineTransformType	r180
(package private) AffineTransformType	r270
(package private) AffineTransformType	r90
(package private) Random	rand
(package private) g4p_controls.GButton	recordButton
(package private) g4p_controls.GLabel	repLabel1
(package private) g4p_controls.GLabel	repLabel2
(package private) g4p_controls.GTextField	repText1
(package private) g4p_controls.GTextField	repText2
(package private) int	roig
(package private) int	roigtar
(package private) int	runCount1
(package private) int	runCount2
(package private) int	samplelen
(package private) float	sampleRate
(package private) int	sampleX
(package private) int	sampleY
(package private) int[]	sevenFortyNine
(package private) int	taronja
(package private) int[]	theOne
(package private) ArrayList<TimedLocation>	timeLocsArray
(package private) int[]	totsElsColors
(package private) AffineTransformType[]	transArray
(package private) g4p_controls.GLabel	unitLabel1
(package private) g4p_controls.GLabel	unitLabel2
(package private) g4p_controls.GTextField	unitSize1
(package private) g4p_controls.GTextField	unitSize2
(package private) int	vert
(package private) String	videoFilename
(package private) int	videoFrameRate
(package private) String	videoPath
(package private) com.hamoid.VideoExport	videx
(package private) int	violet
(package private) int	white
(package private) int[]	whiteBlack
(package private) int	ypos

Fields inherited from class processing.core.PApplet

args, ARGS_BGCOLOR, ARGS_DISABLE_AWT, ARGS_DISPLAY, ARGS_EDITOR_LOCATION, ARGS_EXTERNAL, ARGS_FULL_SCREEN, ARGS_HIDE_STOP, ARGS_LOCATION, ARGS_PRESENT, ARGS_SKETCH_FOLDER, ARGS_STOP_COLOR, ARGS_UI_SCALE, ARGS_WINDOW_COLOR, DEFAULT_HEIGHT, DEFAULT_WIDTH, disableAWT, displayHeight, displayWidth, dmouseX, dmouseY, emouseX, emouseY, exitCalled, EXTERNAL_MOVE, EXTERNAL_STOP, finished, firstMouse, focused, frameCount, frameRate, frameRateLastNanos, g, height, insideDraw, javaPlatform, javaVersion, javaVersionName, key, keyCode, keyEvent, keyPressed, keyRepeatEnabled, looping, matchPatterns, mouseButton, mouseEvent, mousePressed, mouseX, mouseY, pixelDensity, pixelHeight, pixels, pixelWidth, platform, pmouseX, pmouseY, ratioLeft, ratioScale, ratioTop, recorder, redraw, rheight, rmouseX, rmouseY, rwidth, surface, useNativeSelect, width, windowX, windowY

Fields inherited from interface processing.core.PConstants

ADD, ALPHA, ALT, AMBIENT, ARC, ARGB, ARROW, BACKSPACE, BASELINE, BEVEL, BEZIER_VERTEX, BLEND, BLUR, BOTTOM, BOX, BREAK, BURN, CENTER, CHATTER, CHORD, CLAMP, CLOSE, CODED, COMPLAINT, CONTROL, CORNER, CORNERS, CROSS, CURVE_VERTEX, CUSTOM, DARKEST, DEG_TO_RAD, DELETE, DIAMETER, DIFFERENCE, DILATE, DIRECTIONAL, DISABLE_ASYNC_SAVEFRAME, DISABLE_BUFFER_READING, DISABLE_DEPTH_MASK, DISABLE_DEPTH_SORT, DISABLE_DEPTH_TEST, DISABLE_KEY_REPEAT, DISABLE_NATIVE_FONTS, DISABLE_OPENGL_ERRORS, DISABLE_OPTIMIZED_STROKE, DISABLE_STROKE_PERSPECTIVE, DISABLE_STROKE_PURE, DISABLE_TEXTURE_MIPMAPS, DODGE, DOWN, DXF, ELLIPSE, ENABLE_ASYNC_SAVEFRAME, ENABLE_BUFFER_READING, ENABLE_DEPTH_MASK, ENABLE_DEPTH_SORT, ENABLE_DEPTH_TEST, ENABLE_KEY_REPEAT, ENABLE_NATIVE_FONTS, ENABLE_OPENGL_ERRORS, ENABLE_OPTIMIZED_STROKE, ENABLE_STROKE_PERSPECTIVE, ENABLE_STROKE_PURE, ENABLE_TEXTURE_MIPMAPS, ENTER, EPSILON, ERODE, ESC, EXCLUSION, FX2D, GIF, GRAY, GROUP, HALF_PI, HAND, HARD_LIGHT, HINT_COUNT, HSB, IMAGE, INVERT, JAVA2D, JPEG, LANDSCAPE, LEFT, LIGHTEST, LINE, LINE_LOOP, LINE_STRIP, LINES, LINUX, MACOS, MACOSX, MAX_FLOAT, MAX_INT, MIN_FLOAT, MIN_INT, MITER, MODEL, MODELVIEW, MOVE, MULTIPLY, NORMAL, OPAQUE, OPEN, OPENGL, ORTHOGRAPHIC, OTHER, OVERLAY, P2D, P3D, PATH, PDF, PERSPECTIVE, PI, PIE, platformNames, POINT, POINTS, POLYGON, PORTRAIT, POSTERIZE, PROBLEM, PROJECT, PROJECTION, QUAD, QUAD_BEZIER_VERTEX, QUAD_STRIP, QUADRATIC_VERTEX, QUADS, QUARTER_PI, RAD_TO_DEG, RADIUS, RECT, REPEAT, REPLACE, RETURN, RGB, RIGHT, ROUND, SCREEN, SHAPE, SHIFT, SOFT_LIGHT, SPAN, SPHERE, SPOT, SQUARE, SUBTRACT, SVG, TAB, TARGA, TAU, TEXT, THIRD_PI, THRESHOLD, TIFF, TOP, TRIANGLE, TRIANGLE_FAN, TRIANGLE_STRIP, TRIANGLES, TWO_PI, UP, VERTEX, WAIT, WHITESPACE, WINDOWS, X, Y, Z

Constructor Summary

Constructors

Constructor	Description
ArgosyMixer()

Method Summary

Modifier and Type	Method	Description
void	alphaText1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	alphaText2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	animate()	Drives animation and video recording.
void	animateArgosies()	Animates argo1 and argo2 argosy arrays.
ArrayList<processing.core.PVector>	animationPoints(float w, float h, int count)
void	animClose_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	animDuration_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	animHold1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	animHold2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	animOpen_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	animRun1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	animRun2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	argo1FreezeCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
void	argo1InitAndShift()
void	argo1ShowCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
void	argo2FreezeCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
void	argo2InitAndShift()
void	argo2ShowCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
void	argoStep1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	argoStep2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	audioMouseClick(int x, int y)	Typically called from mouseClicked with mouseX and mouseY, generates audio events.
MultiGen	boustrophRowRandom(int cols, int rows, int genW, int genH)	Creates a MultiGen with rows * cols BoustropheGens.
int	calcSampleLen()
int	clipToHeight(int y)
int	clipToWidth(int x)
void	colorMenu1_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
void	colorMenu2_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
void	createGUI()
void	draw()
void	drawCircle(int x, int y)	Draws a circle at the location of an audio trigger (mouseDown event).
void	drawControlWindow(processing.core.PApplet appc, g4p_controls.GWinData data)
processing.core.PImage	drawOffscreen()
void	gap1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	gap2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	gapColorMenu1_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
void	gapColorMenu2_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
void	gapOpacity1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	gapOpacity2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	genMenu1_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
void	genMenu2_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
Argosy	getArgosy(PixelAudioMapper mapper, int[] argosyPattern, int argosyUnitSize, int argosyReps, boolean isCentered, int[] argosyColors, int argosyGap, int argosyGapColor, int argoStep)	Creates a new Argosy instance using supplied arguments.
int	getSamplePos(Argosy argo, int x, int y, int shift)	Calculate position of the image pixel within the signal path, taking the shifting of pixels and audioSignal into account.
MultiGen	hilbertColumnOrtho(int cols, int rows, int genW, int genH)	This variation on hilbertRowOrtho arranges the gens vertically, in columns.
MultiGen	hilbertLoop3x2(int genW, int genH)	hilbertLoop3x2() returns a looping fractal signal path consisting of 6 Hilbert gens, 3 wide by 2 tall, to fit a 3 * genW by 2 * genH image.
MultiGen	hilbertLoop6x4(int genW)
MultiGen	hilbertRowOrtho(int cols, int rows, int genW, int genH)	This method creates rows of HilbertGens, starting each row from the left and adding gens.
MultiGen	hilbertRowRandomFlip(int cols, int rows, int genW, int genH)	Creates a MultiGen with rows * cols HilbertGens.
MultiGen	hilbertStackBou(int stacks, int rows, int units, int genW, int genH)	This method creates a vertical stacks of rows of HilbertGens.
MultiGen	hilbertStackOrtho(int stacks, int rows, int units, int genW, int genH)	This method creates a vertical stacks of rows of HilbertGens.
MultiGen	hilbertZigzagLoop6x4(int genW, int genH)	This method creates a MultiGen consisting of a mix of zigzag and Hilbert curves in 6 columns and 4 rows arranged to provide a continuous loop.
void	imageFileSelectedWrite(File selection)	Handles image file output once an output file is selected.
void	initAnimation()	Initializes some animation variables.
void	initArgo1(int shift)	Initializes Argosy instance argo1 and then shifts its pixels by shift pixels.
void	initArgo2(int shift)	Initializes Argosy instance argo2 and then shifts its pixels by shift pixels.
void	initArgosies()	Initializes argo1 and argo2 Argosy instances, sets some values for GUI, sets animation variables: your one-stop setup method for the argosies.
void	initAudio()	CALL THIS METHOD IN SETUP() Initializes Minim audio library and audio variables.
boolean	isCapsLockDown()	Detects Caps Lock state.
void	keyPressed()	The built-in keyPressed handler for Processing, forwards key and keyCode to parseKey().
static void	main(String[] args)
void	mouseClicked()	The built-in mouseClicked handler for Processing, forwards clipped mouse coords to audioMouseClick().
void	parseKey(char key, int keyCode)	Handles key press events passed on by the built-in keyPressed method.
void	patternMenu1_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
void	patternMenu2_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
int	playSample(PASamplerInstrument synth, int samplePos, int samplelen, float amplitude, ADSRParams env, float pan)	Plays an audio sample with a custom envelope and stereo pan.
AffineTransformType	randomTransform()	Returns a randomly selected AffineTransformType.
void	recordButton_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
void	recordVideo()	record a frame of video
void	renderSignals()	Calls Argosy to get a floating point representation of an argosy array.
void	repText1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	repText2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	runAnimationArray()
void	runTimeArray()	Run the animation for audio events.
void	saveImage()	Starts the image saving event chain.
void	saveImageToFile(processing.core.PImage img, String fileName)	Saves display image to a specified file.
void	saveToAudio(boolean isStereo)	Save audio buffer to a file
PixelAudioMapper	selectMapper(int selector, PixelMapGen gen)	A method for creating a PixelMapGen (MultiGen) to initialize and return a PixelAudioMapper, called by the GUI methods genMenu1_hit() and genMenu2_hit().
int[]	setArgoColorsAlpha(int[] colorArray, int alpha)	Applies alpha channel value alpha to all the RGB colors in colorArray and returns a new array with the modified colors.
void	setAudioGain(float g)	Sets audioOut.gain.
void	settings()
void	setup()
void	showArgosyStats()	Posts some information about the state of argo1 and argo2 to the console.
void	showHelp()	Posts key command help to the console.
void	toggleAnimation()	Toggle animation and handle any side effects (none for the moment).
void	unitSize1_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	unitSize2_change(g4p_controls.GTextField source, g4p_controls.GEvent event)
void	updateArgosies()	Updates argo1 and argo2 to reflect animation and other changes.
MultiGen	zigzagColumnAltOrtho(int cols, int rows, int genW, int genH)	Creates a MultiGen with rows * cols DiagonalZigzagGens.
MultiGen	zigzagColumnOrtho(int cols, int rows, int genW, int genH)	Creates a MultiGen with rows * cols DiagonalZigzagGens.
MultiGen	zigzagLoop6x4(int genW, int genH)
MultiGen	zigzagRowAltOrtho(int cols, int rows, int genW, int genH)	Creates a MultiGen with rows * cols DiagonalZigzagGens.
MultiGen	zigzagRowOrtho(int cols, int rows, int genW, int genH)	Creates a MultiGen with rows * cols DiagonalZigzagGens.
MultiGen	zigzagRowRandomFlip(int cols, int rows, int genW, int genH)	Creates a MultiGen with rows * cols DiagonalZigzagGens.

Methods inherited from class processing.core.PApplet

abs, abs, acos, alpha, ambient, ambient, ambient, ambientLight, ambientLight, append, append, append, append, append, append, applyMatrix, applyMatrix, applyMatrix, applyMatrix, applyMatrix, arc, arc, arraycopy, arraycopy, arraycopy, arrayCopy, arrayCopy, arrayCopy, asin, atan, atan2, attrib, attrib, attrib, attribColor, attribNormal, attribPosition, background, background, background, background, background, background, background, beginCamera, beginContour, beginPGL, beginRaw, beginRaw, beginRecord, beginRecord, beginShape, beginShape, bezier, bezier, bezierDetail, bezierPoint, bezierTangent, bezierVertex, bezierVertex, binary, binary, binary, binary, blend, blend, blendColor, blendMode, blue, box, box, brightness, calcSketchPath, camera, camera, ceil, checkAlpha, checkExtension, choice, choice, circle, clear, clip, color, color, color, color, color, color, color, color, colorMode, colorMode, colorMode, colorMode, concat, concat, concat, concat, concat, concat, concat, constrain, constrain, copy, copy, copy, cos, createFont, createFont, createFont, createGraphics, createGraphics, createGraphics, createImage, createInput, createInput, createInputRaw, createOutput, createOutput, createPath, createPath, createPrimaryGraphics, createReader, createReader, createReader, createShape, createShape, createShape, createWriter, createWriter, createWriter, cursor, cursor, cursor, cursor, curve, curve, curveDetail, curvePoint, curveTangent, curveTightness, curveVertex, curveVertex, dataFile, dataPath, day, debug, degrees, delay, dequeueEvents, desktopFile, desktopPath, die, die, directionalLight, displayDensity, displayDensity, dispose, dist, dist, edge, ellipse, ellipseMode, emissive, emissive, emissive, endCamera, endContour, endPGL, endRaw, endRecord, endShape, endShape, exec, exec, exit, exitActual, exitCalled, exp, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, fill, fill, fill, fill, fill, fill, filter, filter, filter, floor, flush, focusGained, focusLost, frameMoved, frameRate, frustum, fullScreen, fullScreen, fullScreen, fullScreen, get, get, get, getExtension, getGraphics, getMatrix, getMatrix, getMatrix, getSurface, green, handleDraw, handleKeyEvent, handleMethods, handleMouseEvent, hex, hex, hex, hex, hideMenuBar, hint, hour, hue, image, image, image, imageMode, initSurface, insertFrame, isLooping, join, join, keyPressed, keyReleased, keyReleased, keyTyped, keyTyped, launch, lerp, lerpColor, lerpColor, lightFalloff, lights, lightSpecular, line, line, link, listFiles, listFiles, listPaths, loadBytes, loadBytes, loadBytes, loadFont, loadImage, loadImage, loadJSONArray, loadJSONArray, loadJSONObject, loadJSONObject, loadPixels, loadShader, loadShader, loadShape, loadShape, loadStrings, loadStrings, loadStrings, loadStrings, loadTable, loadTable, loadXML, loadXML, log, loop, mag, mag, main, main, main, makeGraphics, map, mask, match, matchAll, max, max, max, max, max, max, method, millis, min, min, min, min, min, min, minute, modelX, modelY, modelZ, month, mouseClicked, mouseDragged, mouseDragged, mouseEntered, mouseEntered, mouseExited, mouseExited, mouseMoved, mouseMoved, mousePressed, mousePressed, mouseReleased, mouseReleased, mouseWheel, mouseWheel, nf, nf, nf, nf, nf, nf, nfc, nfc, nfc, nfc, nfp, nfp, nfp, nfp, nfs, nfs, nfs, nfs, noClip, noCursor, noFill, noise, noise, noise, noiseDetail, noiseDetail, noiseSeed, noLights, noLoop, norm, normal, noSmooth, noStroke, noTexture, noTint, orientation, ortho, ortho, ortho, parseBoolean, parseBoolean, parseBoolean, parseBoolean, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseChar, parseChar, parseChar, parseChar, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseJSONArray, parseJSONObject, parseXML, parseXML, pause, perspective, perspective, pixelDensity, point, point, pointLight, pop, popMatrix, popStyle, postEvent, postWindowMoved, postWindowResized, pow, print, print, print, print, print, print, print, print, print, printArray, printCamera, println, println, println, println, println, println, println, println, println, println, println, printMatrix, printProjection, printStackTrace, push, pushMatrix, pushStyle, quad, quadraticVertex, quadraticVertex, radians, random, random, randomGaussian, randomSeed, rect, rect, rect, rectMode, red, redraw, registerMethod, requestImage, requestImage, resetMatrix, resetShader, resetShader, resume, reverse, reverse, reverse, reverse, reverse, reverse, reverse, rotate, rotate, rotateX, rotateY, rotateZ, round, runSketch, runSketch, runSketch, saturation, save, saveBytes, saveBytes, saveBytes, saveFile, saveFrame, saveFrame, saveJSONArray, saveJSONArray, saveJSONObject, saveJSONObject, savePath, saveStream, saveStream, saveStream, saveStream, saveStream, saveStrings, saveStrings, saveStrings, saveTable, saveTable, saveXML, saveXML, scale, scale, scale, screenX, screenX, screenY, screenY, screenZ, second, selectCallback, selectFolder, selectFolder, selectFolder, selectInput, selectInput, selectInput, selectOutput, selectOutput, selectOutput, set, set, setMatrix, setMatrix, setMatrix, setSize, shader, shader, shape, shape, shape, shapeMode, shearX, shearY, shell, shininess, shorten, shorten, shorten, shorten, shorten, shorten, shorten, showDepthWarning, showDepthWarningXYZ, showMethodWarning, showMissingWarning, showSurface, showVariationWarning, sin, size, size, size, sketchDisplay, sketchFile, sketchFullScreen, sketchHeight, sketchOutputPath, sketchOutputStream, sketchPath, sketchPath, sketchPixelDensity, sketchRenderer, sketchSmooth, sketchWidth, sketchWindowColor, smooth, smooth, sort, sort, sort, sort, sort, sort, sort, sort, sort, sort, specular, specular, specular, sphere, sphereDetail, sphereDetail, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, split, split, splitTokens, splitTokens, spotLight, sq, sqrt, square, start, startSurface, stop, str, str, str, str, str, str, str, str, str, str, stroke, stroke, stroke, stroke, stroke, stroke, strokeCap, strokeJoin, strokeWeight, style, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, tan, text, text, text, text, text, text, text, text, text, text, text, textAlign, textAlign, textAscent, textDescent, textFont, textFont, textLeading, textMode, textSize, texture, textureMode, textureWrap, textWidth, textWidth, textWidth, thread, tint, tint, tint, tint, tint, tint, translate, translate, triangle, trim, trim, unbinary, unhex, unregisterMethod, updatePixels, updatePixels, urlDecode, urlEncode, vertex, vertex, vertex, vertex, vertex, windowMove, windowMoved, windowRatio, windowResizable, windowResize, windowResized, windowTitle, year

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Details

imageWidth

int imageWidth

imageHeight

int imageHeight

bgColor

int bgColor

pixelaudio

PixelAudio pixelaudio

mapSize

int mapSize

mapImage

processing.core.PImage mapImage

chan

PixelAudioMapper.ChannelNames chan

r270

AffineTransformType r270

r90

AffineTransformType r90

r180

AffineTransformType r180

flipx

AffineTransformType flipx

fx270

AffineTransformType fx270

fx90

AffineTransformType fx90

flipy

AffineTransformType flipy

nada

AffineTransformType nada

transArray

AffineTransformType[] transArray

rand

Random rand

roig

int roig

groc

int groc

blau

int blau

blau2

int blau2

blanc

int blanc

gris

int gris

negre

int negre

grana

int grana

vert

int vert

taronja

int taronja

roigtar

int roigtar

violet

int violet

black

int black

white

int white

gray

int gray

theOne

int[] theOne

oneOne

int[] oneOne

countToFive

int[] countToFive

oddOneToSeven

int[] oddOneToSeven

fourPower

int[] fourPower

sevenFortyNine

int[] sevenFortyNine

fiboLSystem55

int[] fiboLSystem55

fibonacciNums

int[] fibonacciNums

lucasNums

int[] lucasNums

blackAlone

int[] blackAlone

blackWhite

int[] blackWhite

whiteBlack

int[] whiteBlack

blackGrayWhite

int[] blackGrayWhite

grayRamp

int[] grayRamp

grayTriangle

int[] grayTriangle

espectroOcho

int[] espectroOcho

espectroSeis

int[] espectroSeis

totsElsColors

int[] totsElsColors

multicolor

int[] multicolor

blueCream

int[] blueCream

creamBlue

int[] creamBlue

fourColor

int[] fourColor

fiveColor

int[] fiveColor

argo1

Argosy argo1

argo1Gen

PixelMapGen argo1Gen

argo1Mapper

PixelAudioMapper argo1Mapper

argo1Pattern

int[] argo1Pattern

argo1Colors

int[] argo1Colors

argo1Alpha

int argo1Alpha

argo1Reps

int argo1Reps

argo1Unit

int argo1Unit

argo1Gap

int argo1Gap

argo1GapColor

int argo1GapColor

argo1GapColorIndex

int argo1GapColorIndex

argo1GapAlpha

int argo1GapAlpha

argo1IsCentered

boolean argo1IsCentered

argo1Image

processing.core.PImage argo1Image

isShowArgo1

boolean isShowArgo1

argo2

Argosy argo2

argo2Gen

PixelMapGen argo2Gen

argo2Mapper

PixelAudioMapper argo2Mapper

argo2Pattern

int[] argo2Pattern

argo2Colors

int[] argo2Colors

argo2Alpha

int argo2Alpha

argo2Reps

int argo2Reps

argo2Unit

int argo2Unit

argo2Gap

int argo2Gap

argo2GapColor

int argo2GapColor

argo2GapColorIndex

int argo2GapColorIndex

argo2GapAlpha

int argo2GapAlpha

argo2IsCentered

boolean argo2IsCentered

argo2Image

processing.core.PImage argo2Image

isShowArgo2

boolean isShowArgo2

argo1Step

int argo1Step

argo2Step

int argo2Step

animOpen

int animOpen

animClose

int animClose

animRun1

int animRun1

animHold1

int animHold1

animRun2

int animRun2

animHold2

int animHold2

animDuration

int animDuration

argoStep

int argoStep

isAnimating

boolean isAnimating

isLooping

boolean isLooping

animstep1

int animstep1

runCount1

int runCount1

holdCount1

int holdCount1

animstep2

int animstep2

runCount2

int runCount2

holdCount2

int holdCount2

isArgo1Freeze

boolean isArgo1Freeze

isArgo2Freeze

boolean isArgo2Freeze

argo1PixelCount

int argo1PixelCount

argo2PixelCount

int argo2PixelCount

videx

com.hamoid.VideoExport videx

videoPath

String videoPath

videoFilename

String videoFilename

videoFrameRate

int videoFrameRate

currentFrame

int currentFrame

isRecordingVideo

boolean isRecordingVideo

isSavePatterns

boolean isSavePatterns

minim

ddf.minim.Minim minim

audioOut

ddf.minim.AudioOutput audioOut

isBufferStale

boolean isBufferStale

sampleRate

float sampleRate

audioLength

int audioLength

noteDuration

int noteDuration

samplelen

int samplelen

pitchScaling

float pitchScaling

panning

float panning

outputGain

float outputGain

adsr1

ADSRParams adsr1

adsr2

ADSRParams adsr2

sampleX

int sampleX

sampleY

int sampleY

timeLocsArray

ArrayList<TimedLocation> timeLocsArray

animationLocsArray

ArrayList<TimedLocation> animationLocsArray

aniPoints

ArrayList<processing.core.PVector> aniPoints

count

int count

fileIndex

int fileIndex

argo1Buffer

ddf.minim.MultiChannelBuffer argo1Buffer

argo2Buffer

ddf.minim.MultiChannelBuffer argo2Buffer

argo1Synth

PASamplerInstrument argo1Synth

argo2Synth

PASamplerInstrument argo2Synth

argo1Signal

float[] argo1Signal

argo2Signal

float[] argo2Signal

argo1SamplePos

int argo1SamplePos

argo2SamplePos

int argo2SamplePos

argo1GenSelect

int argo1GenSelect

argo2GenSelect

int argo2GenSelect

argo1PaletteSelect

int argo1PaletteSelect

argo2PaletteSelect

int argo2PaletteSelect

argo1PatternSelect

int argo1PatternSelect

argo2PatternSelect

int argo2PatternSelect

controlWindow

g4p_controls.GWindow controlWindow

argo1Label

g4p_controls.GLabel argo1Label

genLabel1

g4p_controls.GLabel genLabel1

genMenu1

g4p_controls.GDropList genMenu1

colorsLabel1

g4p_controls.GLabel colorsLabel1

colorMenu1

g4p_controls.GDropList colorMenu1

alpha1Label

g4p_controls.GLabel alpha1Label

alpha1Text

g4p_controls.GTextField alpha1Text

patternLabel1

g4p_controls.GLabel patternLabel1

patternMenu1

g4p_controls.GDropList patternMenu1

repLabel1

g4p_controls.GLabel repLabel1

repText1

g4p_controls.GTextField repText1

unitLabel1

g4p_controls.GLabel unitLabel1

unitSize1

g4p_controls.GTextField unitSize1

gapLabel1

g4p_controls.GLabel gapLabel1

gap1Text

g4p_controls.GTextField gap1Text

gapColorLabel1

g4p_controls.GLabel gapColorLabel1

gapColorMenu1

g4p_controls.GDropList gapColorMenu1

gapAlpha1Label

g4p_controls.GLabel gapAlpha1Label

gapAlpha1Text

g4p_controls.GTextField gapAlpha1Text

argo1Show

g4p_controls.GCheckbox argo1Show

argo1Freeze

g4p_controls.GCheckbox argo1Freeze

argoStepLabel1

g4p_controls.GLabel argoStepLabel1

argoStepText1

g4p_controls.GTextField argoStepText1

argo2Label

g4p_controls.GLabel argo2Label

genLabel2

g4p_controls.GLabel genLabel2

genMenu2

g4p_controls.GDropList genMenu2

colorsLabel2

g4p_controls.GLabel colorsLabel2

colorMenu2

g4p_controls.GDropList colorMenu2

alpha2Label

g4p_controls.GLabel alpha2Label

alpha2Text

g4p_controls.GTextField alpha2Text

patternLabel2

g4p_controls.GLabel patternLabel2

patternMenu2

g4p_controls.GDropList patternMenu2

repLabel2

g4p_controls.GLabel repLabel2

repText2

g4p_controls.GTextField repText2

unitLabel2

g4p_controls.GLabel unitLabel2

unitSize2

g4p_controls.GTextField unitSize2

gapLabel2

g4p_controls.GLabel gapLabel2

gap2Text

g4p_controls.GTextField gap2Text

gapColorLabel2

g4p_controls.GLabel gapColorLabel2

gapColorMenu2

g4p_controls.GDropList gapColorMenu2

gapAlpha2Label

g4p_controls.GLabel gapAlpha2Label

gapAlpha2Text

g4p_controls.GTextField gapAlpha2Text

argo2Show

g4p_controls.GCheckbox argo2Show

argo2Freeze

g4p_controls.GCheckbox argo2Freeze

argoStepLabel2

g4p_controls.GLabel argoStepLabel2

argoStepText2

g4p_controls.GTextField argoStepText2

animationLabel

g4p_controls.GLabel animationLabel

animOpenLabel

g4p_controls.GLabel animOpenLabel

animOpenText

g4p_controls.GTextField animOpenText

animRunLabel1

g4p_controls.GLabel animRunLabel1

animRunText1

g4p_controls.GTextField animRunText1

animHoldLabel1

g4p_controls.GLabel animHoldLabel1

animHoldText1

g4p_controls.GTextField animHoldText1

animRunLabel2

g4p_controls.GLabel animRunLabel2

animRunText2

g4p_controls.GTextField animRunText2

animHoldLabel2

g4p_controls.GLabel animHoldLabel2

animHoldText2

g4p_controls.GTextField animHoldText2

animCloseLabel

g4p_controls.GLabel animCloseLabel

animCloseText

g4p_controls.GTextField animCloseText

animDurationLabel

g4p_controls.GLabel animDurationLabel

animDurationText

g4p_controls.GTextField animDurationText

recordButton

g4p_controls.GButton recordButton

genItems

String[] genItems

colorItems

String[] colorItems

colorVars

int[][] colorVars

patternItems

String[] patternItems

patternVars

int[][] patternVars

gapColorVars

int[] gapColorVars

gapColorItems

String[] gapColorItems

ypos

int ypos

inc

int inc

Constructor Details

ArgosyMixer

public ArgosyMixer()

Method Details

main

public static void main(String[] args)

settings

public void settings()

Overrides:

settings in class processing.core.PApplet

setup

public void setup()

Overrides:

setup in class processing.core.PApplet

initArgosies

public void initArgosies()

Initializes argo1 and argo2 Argosy instances, sets some values for GUI, sets animation variables: your one-stop setup method for the argosies.

setArgoColorsAlpha

public int[] setArgoColorsAlpha(int[] colorArray,
 int alpha)

Applies alpha channel value alpha to all the RGB colors in colorArray and returns a new array with the modified colors.

Parameters:

colorArray - an array of RGB colors

alpha - alpha channel value to apply to RGB colors

Returns:

a new array with the modified colors.

initArgo1

public void initArgo1(int shift)

Initializes Argosy instance argo1 and then shifts its pixels by shift pixels.

Parameters:

shift - number of pixels to rotate left argo1.argosyArray

initArgo2

public void initArgo2(int shift)

Initializes Argosy instance argo2 and then shifts its pixels by shift pixels.

Parameters:

shift - number of pixels to rotate left argo2.argosyArray

getArgosy

public Argosy getArgosy(PixelAudioMapper mapper,
 int[] argosyPattern,
 int argosyUnitSize,
 int argosyReps,
 boolean isCentered,
 int[] argosyColors,
 int argosyGap,
 int argosyGapColor,
 int argoStep)

Creates a new Argosy instance using supplied arguments. Display of the Argosy array of color values is managed through the supplied PixelAudioMapper argument. The array is created by stepping through the pattern and color values, creating blocks of color of argosyUnitSize, separated by argosyGap pixels.

Parameters:

mapper - a PixelAudioMapper instance, with width and height appropriate for display window

argosyPattern - a pattern of ints to step through in creating the argosy array

argosyUnitSize - number of pixels in each block of same-colored pixels in the Argosy.argosyArray

argosyReps - number of times to repeat the pattern, 0 for as many as will fit

isCentered - true if argosy pixel array should be centered

argosyColors - array of colors to step through

argosyGap - number of pixels between repeated patterns

argosyGapColor - color to apply to the argosy gap

argoStep - the number of pixels to rotate when animating, mostly ignored in this app

Returns:

a new Argosy instance

updateArgosies

public void updateArgosies()

Updates argo1 and argo2 to reflect animation and other changes.

initAnimation

public void initAnimation()

Initializes some animation variables.

draw

public void draw()

Overrides:

draw in class processing.core.PApplet

animate

public void animate()

Drives animation and video recording.

animateArgosies

public void animateArgosies()

Animates argo1 and argo2 argosy arrays. Note that we are supplying our own animation step values by calling the Argosy.shift() method. The total shift is stored in Argosy.argosyPixelShift if isCounted is true (last argument to argo1.shift() and argo2.shift()).

recordVideo

public void recordVideo()

record a frame of video

mouseClicked

public void mouseClicked()

The built-in mouseClicked handler for Processing, forwards clipped mouse coords to audioMouseClick().

Overrides:

mouseClicked in class processing.core.PApplet

clipToWidth

public int clipToWidth(int x)

clipToHeight

public int clipToHeight(int y)

isCapsLockDown

public boolean isCapsLockDown()

Detects Caps Lock state. We use Caps Lock state to switch between audio and graphics command sets.

Returns:

true if Caps Lock is down, false otherwise.

keyPressed

public void keyPressed()

The built-in keyPressed handler for Processing, forwards key and keyCode to parseKey().

Overrides:

keyPressed in class processing.core.PApplet

parseKey

public void parseKey(char key,
 int keyCode)

Handles key press events passed on by the built-in keyPressed method.

Parameters:

key - the key the user pressed, as a char

keyCode - numeric keycode for the key the user pressed

showHelp

public void showHelp()

Posts key command help to the console.

setAudioGain

public void setAudioGain(float g)

Sets audioOut.gain.

Parameters:

g - gain value for audioOut, in decibels

toggleAnimation

public void toggleAnimation()

Toggle animation and handle any side effects (none for the moment).

showArgosyStats

public void showArgosyStats()

Posts some information about the state of argo1 and argo2 to the console.

saveImage

public void saveImage()

Starts the image saving event chain.

imageFileSelectedWrite

public void imageFileSelectedWrite(File selection)

Handles image file output once an output file is selected.

Parameters:

selection - an output file for the image, forwarded from saveImage()

saveImageToFile

public void saveImageToFile(processing.core.PImage img,
 String fileName)

Saves display image to a specified file.

Parameters:

img - image to save, reference to a PImage

fileName - name of the file to save, typically a fully qualified file path + file name

drawOffscreen

public processing.core.PImage drawOffscreen()

Returns:

a PImage generated in an offscreen PGraphics buffer.

hilbertLoop3x2

public MultiGen hilbertLoop3x2(int genW,
 int genH)

hilbertLoop3x2() returns a looping fractal signal path consisting of 6 Hilbert gens, 3 wide by 2 tall, to fit a 3 * genW by 2 * genH image. Note that genH must equal genW and both must be powers of 2. For the image size we're using in this example, genW = image width / 3 and genH = image height / 2.

Parameters:

genW - width of each HilbertGen

genH - height of each HilbertGen

Returns:

a MultiGen consisting of 6 HilbertGens linked together by one signal path

hilbertLoop6x4

public MultiGen hilbertLoop6x4(int genW)

hilbertZigzagLoop6x4

public MultiGen hilbertZigzagLoop6x4(int genW,
 int genH)

This method creates a MultiGen consisting of a mix of zigzag and Hilbert curves in 6 columns and 4 rows arranged to provide a continuous loop.

Parameters:

genW -

genH -

Returns:

hilbertStackOrtho

public MultiGen hilbertStackOrtho(int stacks,
 int rows,
 int units,
 int genW,
 int genH)

This method creates a vertical stacks of rows of HilbertGens. Each row begins genH pixels down from the previous row, back at the beginning of the previous row (i.e., in "row major" order, like a bitmap). This method pairs nicely with an image with 3 columns of with 8 rows of words, using the image as a control surface for sampling an audio file with words recorded at the appropriate locations to match the screen order. I used it for a performance work, DeadBodyWorkFlow, which is included in the The signal path jumps from the end of the last gen in each row to the beginning of the first gen int he next row. The path in each row is continuous, which provides some interesting optical effects.

Parameters:

stacks - the number of stacks

rows - the number of rows in each stack

units - the number of gens in each row

genW - the width of each gen, a power of 2

genH - the height of each gen, equal to genW

Returns:

a Multigen consisting of stacks * rows * units PixelMapGens

hilbertStackBou

public MultiGen hilbertStackBou(int stacks,
 int rows,
 int units,
 int genW,
 int genH)

This method creates a vertical stacks of rows of HilbertGens. Each row begins genH pixels down from the previous row. Alternating rows add units in opposite directions. This means path continuity is possible in each stack by changing the orientation of the gens; however, it isn't fully implemented in this example. Hint: choosing the right orientation for each gen will assure path continuity.

Parameters:

stacks - the number of stacks

rows - the number of rows in each stack

units - the number of gens in each row

genW - the width of each gen, a power of 2

genH - the height of each gen, equal to genW

Returns:

a Multigen consisting of stacks * rows * units PixelMapGens

hilbertRowOrtho

public MultiGen hilbertRowOrtho(int cols,
 int rows,
 int genW,
 int genH)

This method creates rows of HilbertGens, starting each row from the left and adding gens. The odd rows are flipped vertically and the even rows are unchanged. The unchanged HilbertGen starts at upper left corner and ends at upper right corner, so this provides some possibilities of symmetry between rows. The path is not continuous.

Parameters:

cols - number of columns of gens wide

rows - number of rows of gens high

genW - width of each gen (same as genH and a power of 2)

genH - height of each gen

Returns:

a MultiGen composed of cols * rows PixelMapGens

hilbertColumnOrtho

public MultiGen hilbertColumnOrtho(int cols,
 int rows,
 int genW,
 int genH)

This variation on hilbertRowOrtho arranges the gens vertically, in columns.

Parameters:

cols - number of columns of gens wide

rows - number of rows of gens high

genW - width of each gen (same as genH and a power of 2)

genH - height of each gen

Returns:

a MultiGen composed of cols * rows PixelMapGens

zigzagLoop6x4

public MultiGen zigzagLoop6x4(int genW,
 int genH)

Parameters:

genW - width of each zigzag gen

genH - height of each zigzag gen

Returns:

a looping MultiGen with 6 rows x 4 columns of DiagonalZigzagGen instances

zigzagRowOrtho

public MultiGen zigzagRowOrtho(int cols,
 int rows,
 int genW,
 int genH)

Creates a MultiGen with rows * cols DiagonalZigzagGens. Note that you should set values for such that: (rows * genW) == width and (cols * genH) == height. "Ortho" implies that each row starts at the left edge. The orientation of the the diagonals changes for alternate rows.

Parameters:

cols - number of vertical columns

rows - number of horiaontal rows

genW - width of an individual PixelMapGen

genH - height of an indvidual PixelMapGen

Returns:

a MultiGen created from rows * cols PixelMapGens

zigzagRowAltOrtho

public MultiGen zigzagRowAltOrtho(int cols,
 int rows,
 int genW,
 int genH)

Creates a MultiGen with rows * cols DiagonalZigzagGens. Note that you should set values for such that: (rows * genW) == width and (cols * genH) == height. "Ortho" implies that each row starts at the left edge. The orientation of the the diagonals is more complex than zigzagRowOrtho(), hence the "Alt" in the method name.

Parameters:

cols - number of vertical columns

rows - number of horiaontal rows

genW - width of an individual PixelMapGen

genH - height of an indvidual PixelMapGen

Returns:

a MultiGen created from rows * cols PixelMapGens

zigzagColumnOrtho

public MultiGen zigzagColumnOrtho(int cols,
 int rows,
 int genW,
 int genH)

Creates a MultiGen with rows * cols DiagonalZigzagGens. Note that you should set values for such that: (rows * genW) == width and (cols * genH) == height. The MultiGen steps along columns rather than rows. "Ortho" implies that each column starts at the top edge. The orientation of the diagonals alternates one column to the next.

Parameters:

cols - number of vertical columns

rows - number of horiaontal rows

genW - width of an individual PixelMapGen

genH - height of an indvidual PixelMapGen

Returns:

a MultiGen created from rows * cols PixelMapGens

zigzagColumnAltOrtho

public MultiGen zigzagColumnAltOrtho(int cols,
 int rows,
 int genW,
 int genH)

Creates a MultiGen with rows * cols DiagonalZigzagGens. Note that you should set values for such that: (rows * genW) == width and (cols * genH) == height. The MultiGen steps along columns rather than rows. "Ortho" implies that each column starts at the top edge. The orientation of the diagonals is more complex than zigzagColumnOrtho(), hence "Alt" in the method name.

Parameters:

cols - number of vertical columns wide

rows - number of horiaontal rows high

genW - width of an individual PixelMapGen

genH - height of an indvidual PixelMapGen

Returns:

a MultiGen created from rows * cols PixelMapGens

zigzagRowRandomFlip

public MultiGen zigzagRowRandomFlip(int cols,
 int rows,
 int genW,
 int genH)

Creates a MultiGen with rows * cols DiagonalZigzagGens. Note that you should set values for such that: (rows * genW) == width and (cols * genH) == height. The MultiGen steps along rows. "Ortho" implies that each row starts at the left edge. The orientation of the diagonals is randomized.

Parameters:

cols - number of vertical columns

rows - number of horiaontal rows

genW - width of an individual PixelMapGen

genH - height of an indvidual PixelMapGen

Returns:

a MultiGen created from rows * cols PixelMapGens

boustrophRowRandom

public MultiGen boustrophRowRandom(int cols,
 int rows,
 int genW,
 int genH)

Creates a MultiGen with rows * cols BoustropheGens. Note that you should set values for such that: (rows * genW) == width and (cols * genH) == height.

Parameters:

cols - number of vertical columns wide

rows - number of horiaontal rows high

genW - width of an individual PixelMapGen

genH - height of an indvidual PixelMapGen

Returns:

a MultiGen created from rows * cols PixelMapGens

hilbertRowRandomFlip

public MultiGen hilbertRowRandomFlip(int cols,
 int rows,
 int genW,
 int genH)

Creates a MultiGen with rows * cols HilbertGens. Note that you should set values for such that: (rows * genW) == width and (cols * genH) == height and that genH == genW and both are powers of 2. The orientation of the HilbertGens is randomized.

Parameters:

cols - number of vertical columns wide

rows - number of horiaontal rows high

genW - width of an individual PixelMapGen

genH - height of an indvidual PixelMapGen

Returns:

a MultiGen created from rows * cols PixelMapGens

randomTransform

public AffineTransformType randomTransform()

Returns a randomly selected AffineTransformType. @see PixelMapGen.

Returns:

a random element from transArray

selectMapper

public PixelAudioMapper selectMapper(int selector,
 PixelMapGen gen)

A method for creating a PixelMapGen (MultiGen) to initialize and return a PixelAudioMapper, called by the GUI methods genMenu1_hit() and genMenu2_hit().

Parameters:

selector - number to select a particular method to create MultiGen, keyed to GUI.

gen - a PixelMapGen object that will contain the new PixelMapGen on completion

Returns:

a PixelAudioMapper created with the new PixelMapGen

createGUI

public void createGUI()

drawControlWindow

public void drawControlWindow(processing.core.PApplet appc,
 g4p_controls.GWinData data)

genMenu1_hit

public void genMenu1_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

colorMenu1_hit

public void colorMenu1_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

alphaText1_change

public void alphaText1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

patternMenu1_hit

public void patternMenu1_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

repText1_change

public void repText1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

unitSize1_change

public void unitSize1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

gap1_change

public void gap1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

gapColorMenu1_hit

public void gapColorMenu1_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

gapOpacity1_change

public void gapOpacity1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

argoStep1_change

public void argoStep1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

argo1ShowCheck_hit

public void argo1ShowCheck_hit(g4p_controls.GCheckbox source,
 g4p_controls.GEvent event)

argo1FreezeCheck_hit

public void argo1FreezeCheck_hit(g4p_controls.GCheckbox source,
 g4p_controls.GEvent event)

argo1InitAndShift

public void argo1InitAndShift()

genMenu2_hit

public void genMenu2_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

colorMenu2_hit

public void colorMenu2_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

alphaText2_change

public void alphaText2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

patternMenu2_hit

public void patternMenu2_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

repText2_change

public void repText2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

unitSize2_change

public void unitSize2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

gap2_change

public void gap2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

gapColorMenu2_hit

public void gapColorMenu2_hit(g4p_controls.GDropList source,
 g4p_controls.GEvent event)

gapOpacity2_change

public void gapOpacity2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

argoStep2_change

public void argoStep2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

argo2ShowCheck_hit

public void argo2ShowCheck_hit(g4p_controls.GCheckbox source,
 g4p_controls.GEvent event)

argo2FreezeCheck_hit

public void argo2FreezeCheck_hit(g4p_controls.GCheckbox source,
 g4p_controls.GEvent event)

argo2InitAndShift

public void argo2InitAndShift()

animOpen_change

public void animOpen_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

animClose_change

public void animClose_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

animRun1_change

public void animRun1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

animHold1_change

public void animHold1_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

animRun2_change

public void animRun2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

animHold2_change

public void animHold2_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

animDuration_change

public void animDuration_change(g4p_controls.GTextField source,
 g4p_controls.GEvent event)

recordButton_hit

public void recordButton_hit(g4p_controls.GButton source,
 g4p_controls.GEvent event)

initAudio

public void initAudio()

CALL THIS METHOD IN SETUP() Initializes Minim audio library and audio variables.

saveToAudio

public void saveToAudio(boolean isStereo)

Save audio buffer to a file

renderSignals

public void renderSignals()

Calls Argosy to get a floating point representation of an argosy array. Values in the returned array are scaled by argosy alpha / 255.0f, so that opacity corresponds to audio gain. The arrays from Argosy are loaded into audio buffers so that we can hear the patterns for argo1 and argo2.

audioMouseClick

public void audioMouseClick(int x,
 int y)

Typically called from mouseClicked with mouseX and mouseY, generates audio events. TODO play these argo1 and argo2 signals in a stereo buffer.

Parameters:

x - x-coordinate within a PixelAudioMapper's width

y - y-coordinate within a PixelAudioMapper's height

playSample

public int playSample(PASamplerInstrument synth,
 int samplePos,
 int samplelen,
 float amplitude,
 ADSRParams env,
 float pan)

Plays an audio sample with a custom envelope and stereo pan.

Parameters:

samplePos - position of the sample in the audio buffer

samplelen - length of the sample (will be adjusted)

amplitude - amplitude of the sample on playback

env - an ADSR envelope for the sample

pan - position of sound in the stereo audio field (-1.0 = left, 0.0 = center, 1.0 = right)

Returns:

the calculated sample length in samples

calcSampleLen

public int calcSampleLen()

getSamplePos

public int getSamplePos(Argosy argo,
 int x,
 int y,
 int shift)

Calculate position of the image pixel within the signal path, taking the shifting of pixels and audioSignal into account. See MusicBoxBuffer for use of a windowed buffer in this calculation.

runTimeArray

public void runTimeArray()

Run the animation for audio events.

runAnimationArray

public void runAnimationArray()

drawCircle

public void drawCircle(int x,
 int y)

Draws a circle at the location of an audio trigger (mouseDown event).

Parameters:

x - x coordinate of circle

y - y coordinate of circle

animationPoints

public ArrayList<processing.core.PVector> animationPoints(float w,
 float h,
 int count)
