Package net.paulhertz.pixelaudio.example

Class LoadImageToAudio

java.lang.Object
processing.core.PApplet
net.paulhertz.pixelaudio.example.LoadImageToAudio
All Implemented Interfaces:
processing.core.PConstants
public class LoadImageToAudio extends processing.core.PApplet
LoadImageToAudio shows how to load an image and turn it into an audio file that can be played by clicking on the image. You can also load an audio file and turn it into an image.

QUICK START

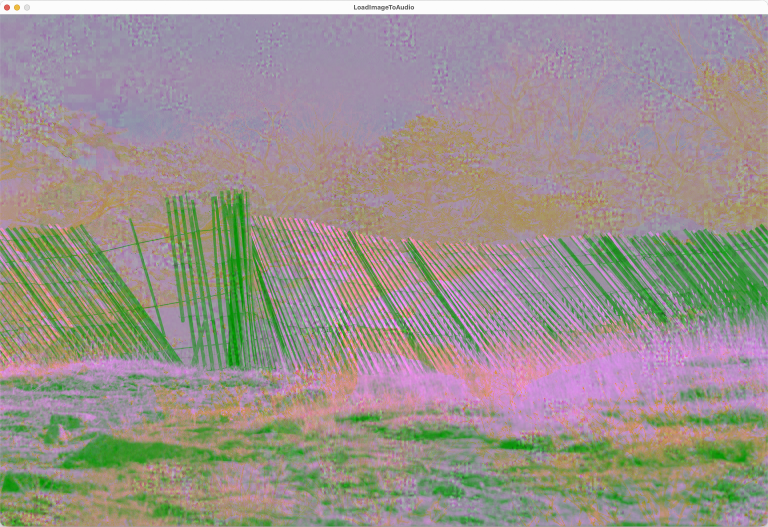

  1. Run LoadImageToAudio. The sketch shows a rainbow-colored image generated by the getColors() method.
  2. Press 'o' to open an image file. Image and audio files for the PixelAudio example sketches can be found in the PixelAudio library "examples/example_data/" directory. Your selected image appears in the display and is transcoded to audio.
  3. Press the spacebar while the mouse is over the image to play its transcoded audio signal.
  4. Experiment with loading images and audio files to the various color channels. Press '?' to see the available key commands ('h' is reserved for the Hue channel).

You can write the current image to the audio signal with the 'w' key command. The sound of an image will probably be noisy since it is not designed with cyclic functions along the arbitrary signal path we impose on it with a PixelMapGen. RGB values range in integer steps from 0 to 255. When we transcode them to audio values in the range (-1.0, 1.0), we have less resolution than the full range of floating point values. There's always some noise in values transcoded from images. In most of the examples for the PixelAudio library, when you load an audio file and it gets transcoded into an image we still use the audio signal with all its resolution to play sounds. When you click in the image, you will be playing a sample from the signal.

You can write the audio signal to the image with the 'W' key command. This will convert the audioSignal into HSB Brightness values and write them to mapImage. If you open this image in all color channels or in the HSB Brightness channel and then write it to the audio channel, you will get a reasonably good recreation of the audio, at 8-bit resolution.

An audio signal or image can be loaded to various channels of the image: Red, Green, Blue or all channels in the RGB color space or Hue, Brightness, or Saturation in the HSB color space. HSB Hue operations on grayscale images may result in no change to the image. Grayscale images have no saturation or hue, only brightness, when they are represented in the HSB color space. Loading the saturation of a grayscale image or a transcoded audio file to a color image will turn it gray. To work more effectively with HSB, we can load both hue and saturation from a color image to another color image or to a grayscale image, maintaining the brightness channel of the target image, with the 'c' command key.

You can enhance image contrast by stretching its histogram ('m' key). You can make the image brighter ('=' and '+' keys) or darker ('-' or '_' key) using a gamma function, a non-linear adjustment.

 Press ' ' to play audio for the point the mouse is currently over.
 Press TAB to toggle animation.
 Press 'o' to open an audio or image file in all RGB channels.
 Press 'r' to open an audio or image file in the RED channel of the image.
 Press 'g' to open an audio or image file in the GREEN channel of the image.
 Press 'b' to open an audio or image file in the BLUE channel of the image.
 Press 'h' to open an audio or image file in the HSB Hue channel of the image.
 Press 'v' to open an audio or image file in the HSB Saturation channel of the image.
 Press 'l' to open an audio or image file in the HSB Brightness channel of the image.
 Press 'c' to apply color from an image file to the display image.
 Press 'k' to apply the hue and saturation in the colors array to mapImage.
 Press 'O' to reload the most recent image or audio file or show an Open File dialog.
 Press 'm' to remap the histogram of the image.
 Press '=' to use a gamma function to make the image lighter.
 Press '-' to use a gamma function to make the image darker.
 Press 'S' to save the audio signal to an audio file.
 Press 's' to save the image to a PNG file.
 Press 'f' to print the current frame rate to the console.
 Press 'w' to transcode the image and write it to the audio signal.
 Press 'W' to transcode the audio signal and write it to the image.
 Press '?' to show the Help Message in the console.
PLEASE NOTE: Hue (H) and Saturation (V) operations may have no effect on gray pixels.
ALSO: Image brightness determines image audio. Images with uniform brightness will be silent.

  • Field Summary

    Fields
    Modifier and Type
    Field
    Description
    (package private) ADSRParams
    adsr

    (package private) float
    attackTime

    (package private) File
    audioFile

    (package private) int
    audioFileLength

    (package private) String
    audioFileName

    (package private) String
    audioFilePath

    (package private) String
    audioFileTag

    (package private) int
    audioLength

    (package private) ddf.minim.AudioOutput
    audioOut

    (package private) float[]
    audioSignal

    (package private) PixelAudioMapper.ChannelNames
    chan

    (package private) int[]
    colors

    (package private) int
    count

    (package private) float
    decayTime

    (package private) int
    durationMS

    (package private) float
    gammaDarker

    (package private) float
    gammaLighter

    (package private) int[]
    gammaTable

    (package private) int
    genHeight

    (package private) ArrayList<PixelMapGen>
    genList

    (package private) int
    genWidth

    (package private) int
    histoHigh

    (package private) int
    histoLow

    (package private) File
    imageFile

    (package private) int
    imageFileHeight

    (package private) String
    imageFileName

    (package private) String
    imageFilePath

    (package private) String
    imageFileTag

    (package private) int
    imageFileWidth

    (package private) boolean
    isAnimating

    (package private) boolean
    isBufferStale

    (package private) boolean
    isLoadFromImage

    (package private) boolean
    isLooping

    (package private) processing.core.PImage
    mapImage

    (package private) PixelAudioMapper
    mapper

    (package private) int
    mapSize

    (package private) float
    maxAmplitude

    (package private) ddf.minim.Minim
    minim
    Minim audio library
    (package private) MultiGen
    multigen

    (package private) ArrayList<int[]>
    offsetList

    (package private) boolean
    oldIsAnimating

    (package private) PixelAudio
    pixelaudio

    (package private) ddf.minim.MultiChannelBuffer
    playBuffer

    (package private) Random
    rando

    (package private) float
    releaseTime

    (package private) int[]
    rgbSignal

    (package private) int
    sampleLen

    (package private) int
    samplePos

    (package private) float
    sampleRate

    (package private) int
    sampleX

    (package private) int
    sampleY

    (package private) int
    shift

    (package private) float
    sustainLevel

    (package private) PASamplerInstrument
    synth

    (package private) ArrayList<TimedLocation>
    timeLocsArray

    (package private) int
    totalShift


    Fields inherited from class processing.core.PApplet

    args, ARGS_BGCOLOR, ARGS_DISABLE_AWT, ARGS_DISPLAY, ARGS_EDITOR_LOCATION, ARGS_EXTERNAL, ARGS_FULL_SCREEN, ARGS_HIDE_STOP, ARGS_LOCATION, ARGS_PRESENT, ARGS_SKETCH_FOLDER, ARGS_STOP_COLOR, ARGS_UI_SCALE, ARGS_WINDOW_COLOR, DEFAULT_HEIGHT, DEFAULT_WIDTH, disableAWT, displayHeight, displayWidth, dmouseX, dmouseY, emouseX, emouseY, exitCalled, EXTERNAL_MOVE, EXTERNAL_STOP, finished, firstMouse, focused, frameCount, frameRate, frameRateLastNanos, g, height, insideDraw, javaPlatform, javaVersion, javaVersionName, key, keyCode, keyEvent, keyPressed, keyRepeatEnabled, looping, matchPatterns, mouseButton, mouseEvent, mousePressed, mouseX, mouseY, pixelDensity, pixelHeight, pixels, pixelWidth, platform, pmouseX, pmouseY, ratioLeft, ratioScale, ratioTop, recorder, redraw, rheight, rmouseX, rmouseY, rwidth, surface, useNativeSelect, width, windowX, windowY

    Fields inherited from interface processing.core.PConstants

    ADD, ALPHA, ALT, AMBIENT, ARC, ARGB, ARROW, BACKSPACE, BASELINE, BEVEL, BEZIER_VERTEX, BLEND, BLUR, BOTTOM, BOX, BREAK, BURN, CENTER, CHATTER, CHORD, CLAMP, CLOSE, CODED, COMPLAINT, CONTROL, CORNER, CORNERS, CROSS, CURVE_VERTEX, CUSTOM, DARKEST, DEG_TO_RAD, DELETE, DIAMETER, DIFFERENCE, DILATE, DIRECTIONAL, DISABLE_ASYNC_SAVEFRAME, DISABLE_BUFFER_READING, DISABLE_DEPTH_MASK, DISABLE_DEPTH_SORT, DISABLE_DEPTH_TEST, DISABLE_KEY_REPEAT, DISABLE_NATIVE_FONTS, DISABLE_OPENGL_ERRORS, DISABLE_OPTIMIZED_STROKE, DISABLE_STROKE_PERSPECTIVE, DISABLE_STROKE_PURE, DISABLE_TEXTURE_MIPMAPS, DODGE, DOWN, DXF, ELLIPSE, ENABLE_ASYNC_SAVEFRAME, ENABLE_BUFFER_READING, ENABLE_DEPTH_MASK, ENABLE_DEPTH_SORT, ENABLE_DEPTH_TEST, ENABLE_KEY_REPEAT, ENABLE_NATIVE_FONTS, ENABLE_OPENGL_ERRORS, ENABLE_OPTIMIZED_STROKE, ENABLE_STROKE_PERSPECTIVE, ENABLE_STROKE_PURE, ENABLE_TEXTURE_MIPMAPS, ENTER, EPSILON, ERODE, ESC, EXCLUSION, FX2D, GIF, GRAY, GROUP, HALF_PI, HAND, HARD_LIGHT, HINT_COUNT, HSB, IMAGE, INVERT, JAVA2D, JPEG, LANDSCAPE, LEFT, LIGHTEST, LINE, LINE_LOOP, LINE_STRIP, LINES, LINUX, MACOS, MACOSX, MAX_FLOAT, MAX_INT, MIN_FLOAT, MIN_INT, MITER, MODEL, MODELVIEW, MOVE, MULTIPLY, NORMAL, OPAQUE, OPEN, OPENGL, ORTHOGRAPHIC, OTHER, OVERLAY, P2D, P3D, PATH, PDF, PERSPECTIVE, PI, PIE, platformNames, POINT, POINTS, POLYGON, PORTRAIT, POSTERIZE, PROBLEM, PROJECT, PROJECTION, QUAD, QUAD_BEZIER_VERTEX, QUAD_STRIP, QUADRATIC_VERTEX, QUADS, QUARTER_PI, RAD_TO_DEG, RADIUS, RECT, REPEAT, REPLACE, RETURN, RGB, RIGHT, ROUND, SCREEN, SHAPE, SHIFT, SOFT_LIGHT, SPAN, SPHERE, SPOT, SQUARE, SUBTRACT, SVG, TAB, TARGA, TAU, TEXT, THIRD_PI, THRESHOLD, TIFF, TOP, TRIANGLE, TRIANGLE_FAN, TRIANGLE_STRIP, TRIANGLES, TWO_PI, UP, VERTEX, WAIT, WHITESPACE, WINDOWS, X, Y, Z

  • Constructor Summary

    Constructors
    Constructor
    Description
    LoadImageToAudio()


  • Method Summary

    Modifier and Type
    Method
    Description
    int[]
    adjustGamma(int[] source)

    int[]
    applyColor(int[] colorSource, int[] graySource, int[] lut)
    Utility method for applying hue and saturation values from a source array of RGB values to the brightness values in a target array of RGB values, using a lookup table to redirect indexing.
    void
    applyImageColor(File imgFile, processing.core.PImage targetImage)
    Apply the hue and saturation of a chosen image file to the brightness channel of the display image.
    void
    audioFileSelectedWrite(File selection)

    int
    audioMouseClick(int x, int y)

    int
    calcSampleLen(int durationMS)

    void
    chooseColorImage()
    Call to initiate process of opening an image file to get its color data.
    void
    chooseFile()
    Wrapper method for Processing's selectInput command
    int
    clipToHeight(int y)

    int
    clipToWidth(int x)

    void
    colorFileSelected(File selectedFile)
    callback method for chooseColorImage()
    void
    draw()

    void
    drawCircle(int x, int y)

    void
    fileSelected(File selectedFile)
    callback method for chooseFile(), handles standard audio and image formats for Processing.
    double
    gauss(double mean, double variance)
    Returns a Gaussian variable using a Java library call to Random.nextGaussian.
    int[]
    getColors()

    int[]
    getHistoBounds(int[] source)

    int
    getSamplePos(int x, int y)
    Calculates the index of the image pixel within the signal path, taking the shifting of pixels and audioSignal into account.
    void
    imageFileSelectedWrite(File selection)

    void
    initAudio()
    Initialize audio variables
    void
    initImage()
    Initialize mapImage and associated variables
    void
    keyPressed()

    void
    loadAudioFile(File audioFile)
    Attempts to load audio data from a selected file into playBuffer, then calls writeAudioToImage() to transcode audio data and write it to mapImage
    void
    loadImageFile(File imgFile)
    Attempts to load image data from a selected file into mapImage, then calls writeImageToAudio() to transcode HSB brightness color data from the image to audio and writes it to audioBuffer and audioSignal.
    static void
    main(String[] args)

    void
    mouseClicked()

    int
    playSample(int samplePos, int sampleCount, float amplitude)
    Plays an audio sample with PASamplerInstrument and default ADSR.
    void
    runTimeArray()

    void
    saveAudioToFile(float[] samples, float sampleRate, String fileName)
    Saves audio data to 16-bit integer PCM format, which Processing can also open.
    void
    saveImageToFile(processing.core.PImage img, String fileName)

    void
    saveToAudio()

    void
    saveToImage()

    void
    setGamma(float gamma)

    void
    settings()

    void
    setup()

    void
    showHelp()

    void
    stepAnimation()

    int[]
    stretch(int[] source, int low, int high)

    void
    writeAudioToImage()
    Convenience method to call writeAudioToImage(float[], PixelAudioMapper, PImage, PixelAudioMapper.ChannelNames) with audioSignal, mapper, and mapImage and ChannelNames.L as arguments.
    void
    writeAudioToImage(float[] sig, PixelAudioMapper mapper, processing.core.PImage img, PixelAudioMapper.ChannelNames chan)
    Transcodes audio data in sig[] and writes it to color channel chan of mapImage using the lookup tables in mapper to redirect indexing.
    void
    writeImageToAudio()

    void
    writeImageToAudio(processing.core.PImage img, PixelAudioMapper mapper, float[] sig, PixelAudioMapper.ChannelNames chan)
    This method writes a color channel from the an image to an audio signal, fulfilling a central concept of the PixelAudio library: image is sound.

    Methods inherited from class processing.core.PApplet

    abs, abs, acos, alpha, ambient, ambient, ambient, ambientLight, ambientLight, append, append, append, append, append, append, applyMatrix, applyMatrix, applyMatrix, applyMatrix, applyMatrix, arc, arc, arraycopy, arraycopy, arraycopy, arrayCopy, arrayCopy, arrayCopy, asin, atan, atan2, attrib, attrib, attrib, attribColor, attribNormal, attribPosition, background, background, background, background, background, background, background, beginCamera, beginContour, beginPGL, beginRaw, beginRaw, beginRecord, beginRecord, beginShape, beginShape, bezier, bezier, bezierDetail, bezierPoint, bezierTangent, bezierVertex, bezierVertex, binary, binary, binary, binary, blend, blend, blendColor, blendMode, blue, box, box, brightness, calcSketchPath, camera, camera, ceil, checkAlpha, checkExtension, choice, choice, circle, clear, clip, color, color, color, color, color, color, color, color, colorMode, colorMode, colorMode, colorMode, concat, concat, concat, concat, concat, concat, concat, constrain, constrain, copy, copy, copy, cos, createFont, createFont, createFont, createGraphics, createGraphics, createGraphics, createImage, createInput, createInput, createInputRaw, createOutput, createOutput, createPath, createPath, createPrimaryGraphics, createReader, createReader, createReader, createShape, createShape, createShape, createWriter, createWriter, createWriter, cursor, cursor, cursor, cursor, curve, curve, curveDetail, curvePoint, curveTangent, curveTightness, curveVertex, curveVertex, dataFile, dataPath, day, debug, degrees, delay, dequeueEvents, desktopFile, desktopPath, die, die, directionalLight, displayDensity, displayDensity, dispose, dist, dist, edge, ellipse, ellipseMode, emissive, emissive, emissive, endCamera, endContour, endPGL, endRaw, endRecord, endShape, endShape, exec, exec, exit, exitActual, exitCalled, exp, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, fill, fill, fill, fill, fill, fill, filter, filter, filter, floor, flush, focusGained, focusLost, frameMoved, frameRate, frustum, fullScreen, fullScreen, fullScreen, fullScreen, get, get, get, getExtension, getGraphics, getMatrix, getMatrix, getMatrix, getSurface, green, handleDraw, handleKeyEvent, handleMethods, handleMouseEvent, hex, hex, hex, hex, hideMenuBar, hint, hour, hue, image, image, image, imageMode, initSurface, insertFrame, isLooping, join, join, keyPressed, keyReleased, keyReleased, keyTyped, keyTyped, launch, lerp, lerpColor, lerpColor, lightFalloff, lights, lightSpecular, line, line, link, listFiles, listFiles, listPaths, loadBytes, loadBytes, loadBytes, loadFont, loadImage, loadImage, loadJSONArray, loadJSONArray, loadJSONObject, loadJSONObject, loadPixels, loadShader, loadShader, loadShape, loadShape, loadStrings, loadStrings, loadStrings, loadStrings, loadTable, loadTable, loadXML, loadXML, log, loop, mag, mag, main, main, main, makeGraphics, map, mask, match, matchAll, max, max, max, max, max, max, method, millis, min, min, min, min, min, min, minute, modelX, modelY, modelZ, month, mouseClicked, mouseDragged, mouseDragged, mouseEntered, mouseEntered, mouseExited, mouseExited, mouseMoved, mouseMoved, mousePressed, mousePressed, mouseReleased, mouseReleased, mouseWheel, mouseWheel, nf, nf, nf, nf, nf, nf, nfc, nfc, nfc, nfc, nfp, nfp, nfp, nfp, nfs, nfs, nfs, nfs, noClip, noCursor, noFill, noise, noise, noise, noiseDetail, noiseDetail, noiseSeed, noLights, noLoop, norm, normal, noSmooth, noStroke, noTexture, noTint, orientation, ortho, ortho, ortho, parseBoolean, parseBoolean, parseBoolean, parseBoolean, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseChar, parseChar, parseChar, parseChar, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseJSONArray, parseJSONObject, parseXML, parseXML, pause, perspective, perspective, pixelDensity, point, point, pointLight, pop, popMatrix, popStyle, postEvent, postWindowMoved, postWindowResized, pow, print, print, print, print, print, print, print, print, print, printArray, printCamera, println, println, println, println, println, println, println, println, println, println, println, printMatrix, printProjection, printStackTrace, push, pushMatrix, pushStyle, quad, quadraticVertex, quadraticVertex, radians, random, random, randomGaussian, randomSeed, rect, rect, rect, rectMode, red, redraw, registerMethod, requestImage, requestImage, resetMatrix, resetShader, resetShader, resume, reverse, reverse, reverse, reverse, reverse, reverse, reverse, rotate, rotate, rotateX, rotateY, rotateZ, round, runSketch, runSketch, runSketch, saturation, save, saveBytes, saveBytes, saveBytes, saveFile, saveFrame, saveFrame, saveJSONArray, saveJSONArray, saveJSONObject, saveJSONObject, savePath, saveStream, saveStream, saveStream, saveStream, saveStream, saveStrings, saveStrings, saveStrings, saveTable, saveTable, saveXML, saveXML, scale, scale, scale, screenX, screenX, screenY, screenY, screenZ, second, selectCallback, selectFolder, selectFolder, selectFolder, selectInput, selectInput, selectInput, selectOutput, selectOutput, selectOutput, set, set, setMatrix, setMatrix, setMatrix, setSize, shader, shader, shape, shape, shape, shapeMode, shearX, shearY, shell, shininess, shorten, shorten, shorten, shorten, shorten, shorten, shorten, showDepthWarning, showDepthWarningXYZ, showMethodWarning, showMissingWarning, showSurface, showVariationWarning, sin, size, size, size, sketchDisplay, sketchFile, sketchFullScreen, sketchHeight, sketchOutputPath, sketchOutputStream, sketchPath, sketchPath, sketchPixelDensity, sketchRenderer, sketchSmooth, sketchWidth, sketchWindowColor, smooth, smooth, sort, sort, sort, sort, sort, sort, sort, sort, sort, sort, specular, specular, specular, sphere, sphereDetail, sphereDetail, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, split, split, splitTokens, splitTokens, spotLight, sq, sqrt, square, start, startSurface, stop, str, str, str, str, str, str, str, str, str, str, stroke, stroke, stroke, stroke, stroke, stroke, strokeCap, strokeJoin, strokeWeight, style, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, tan, text, text, text, text, text, text, text, text, text, text, text, textAlign, textAlign, textAscent, textDescent, textFont, textFont, textLeading, textMode, textSize, texture, textureMode, textureWrap, textWidth, textWidth, textWidth, thread, tint, tint, tint, tint, tint, tint, translate, translate, triangle, trim, trim, unbinary, unhex, unregisterMethod, updatePixels, updatePixels, urlDecode, urlEncode, vertex, vertex, vertex, vertex, vertex, windowMove, windowMoved, windowRatio, windowResizable, windowResize, windowResized, windowTitle, year

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Field Details

    • pixelaudio

      PixelAudio pixelaudio

    • multigen

      MultiGen multigen

    • genList

      ArrayList<PixelMapGen> genList

    • offsetList

      ArrayList<int[]> offsetList

    • genWidth

      int genWidth

    • genHeight

      int genHeight

    • mapper

      PixelAudioMapper mapper

    • mapSize

      int mapSize

    • mapImage

      processing.core.PImage mapImage

    • chan

      PixelAudioMapper.ChannelNames chan

    • colors

      int[] colors

    • rando

      Random rando

    • minim

      ddf.minim.Minim minim
      Minim audio library

    • audioOut

      ddf.minim.AudioOutput audioOut

    • playBuffer

      ddf.minim.MultiChannelBuffer playBuffer

    • isBufferStale

      boolean isBufferStale

    • sampleRate

      float sampleRate

    • audioSignal

      float[] audioSignal

    • rgbSignal

      int[] rgbSignal

    • audioLength

      int audioLength

    • audioFileLength

      int audioFileLength

    • sampleLen

      int sampleLen

    • durationMS

      int durationMS

    • synth

      PASamplerInstrument synth

    • adsr

      ADSRParams adsr

    • maxAmplitude

      float maxAmplitude

    • attackTime

      float attackTime

    • decayTime

      float decayTime

    • sustainLevel

      float sustainLevel

    • releaseTime

      float releaseTime

    • audioFile

      File audioFile

    • audioFilePath

      String audioFilePath

    • audioFileName

      String audioFileName

    • audioFileTag

      String audioFileTag

    • imageFile

      File imageFile

    • imageFilePath

      String imageFilePath

    • imageFileName

      String imageFileName

    • imageFileTag

      String imageFileTag

    • imageFileWidth

      int imageFileWidth

    • imageFileHeight

      int imageFileHeight

    • isLoadFromImage

      boolean isLoadFromImage

    • isAnimating

      boolean isAnimating

    • oldIsAnimating

      boolean oldIsAnimating

    • shift

      int shift

    • totalShift

      int totalShift

    • isLooping

      boolean isLooping

    • sampleX

      int sampleX

    • sampleY

      int sampleY

    • samplePos

      int samplePos

    • timeLocsArray

      ArrayList<TimedLocation> timeLocsArray

    • count

      int count

    • histoHigh

      int histoHigh

    • histoLow

      int histoLow

    • gammaLighter

      float gammaLighter

    • gammaDarker

      float gammaDarker

    • gammaTable

      int[] gammaTable

  • Constructor Details

    • LoadImageToAudio

      public LoadImageToAudio()

  • Method Details

    • main

      public static void main(String[] args)

    • settings

      public void settings()
      Overrides:
      settings in class processing.core.PApplet

    • setup

      public void setup()
      Overrides:
      setup in class processing.core.PApplet

    • initAudio

      public void initAudio()
      Initialize audio variables

    • initImage

      public void initImage()
      Initialize mapImage and associated variables

    • getColors

      public int[] getColors()
      Returns:
      an array of RGB colors that cover a full rainbow spectrum

    • draw

      public void draw()
      Overrides:
      draw in class processing.core.PApplet

    • stepAnimation

      public void stepAnimation()

    • runTimeArray

      public void runTimeArray()

    • drawCircle

      public void drawCircle(int x, int y)

    • keyPressed

      public void keyPressed()
      Overrides:
      keyPressed in class processing.core.PApplet

    • showHelp

      public void showHelp()

    • applyColor

      public int[] applyColor(int[] colorSource, int[] graySource, int[] lut)
      Utility method for applying hue and saturation values from a source array of RGB values to the brightness values in a target array of RGB values, using a lookup table to redirect indexing.
      Parameters:
      colorSource - a source array of RGB data from which to obtain hue and saturation values
      graySource - an target array of RGB data from which to obtain brightness values
      lut - a lookup table, must be the same size as colorSource and graySource
      Returns:
      the graySource array of RGB values, with hue and saturation values changed
      Throws:
      IllegalArgumentException - if array arguments are null or if they are not the same length

    • mouseClicked

      public void mouseClicked()
      Overrides:
      mouseClicked in class processing.core.PApplet

    • clipToWidth

      public int clipToWidth(int x)
      Parameters:
      x - a value to constrain to the current window width
      Returns:
      the constrained value

    • clipToHeight

      public int clipToHeight(int y)
      Parameters:
      y - a value to constrain to the current window height
      Returns:
      the constrained value

    • audioMouseClick

      public int audioMouseClick(int x, int y)

    • getSamplePos

      public int getSamplePos(int x, int y)
      Calculates the index of the image pixel within the signal path, taking the shifting of pixels and audioSignal into account. See the MusicWindowBox sketch for use of a windowed buffer in this calculation.
      Parameters:
      x - an x coordinate within mapImage and display bounds
      y - a y coordinate within mapImage and display bounds
      Returns:
      the index of the sample corresponding to (x,y) on the signal path

    • calcSampleLen

      public int calcSampleLen(int durationMS)
      Returns:
      a length in samples with some Gaussian variation

    • gauss

      public double gauss(double mean, double variance)
      Returns a Gaussian variable using a Java library call to Random.nextGaussian.
      Parameters:
      mean -
      variance -
      Returns:
      a Gaussian-distributed random number with mean mean and variance variance

    • playSample

      public int playSample(int samplePos, int sampleCount, float amplitude)
      Plays an audio sample with PASamplerInstrument and default ADSR.
      Parameters:
      samplePos - position of the sample in the audio buffer
      sampleCount - number of samples to play
      amplitude - amplitude of the samples on playback
      Returns:
      the calculated sample length in samples

    • writeImageToAudio

      public void writeImageToAudio()

    • getHistoBounds

      public int[] getHistoBounds(int[] source)

    • stretch

      public int[] stretch(int[] source, int low, int high)

    • setGamma

      public void setGamma(float gamma)

    • adjustGamma

      public int[] adjustGamma(int[] source)

    • chooseColorImage

      public void chooseColorImage()
      Call to initiate process of opening an image file to get its color data.

    • colorFileSelected

      public void colorFileSelected(File selectedFile)
      callback method for chooseColorImage()
      Parameters:
      selectedFile - the File the user selected

    • applyImageColor

      public void applyImageColor(File imgFile, processing.core.PImage targetImage)
      Apply the hue and saturation of a chosen image file to the brightness channel of the display image.
      Parameters:
      imgFile - selected image file, source of hue and saturation values
      targetImage - target image where brightness will remain unchanged

    • chooseFile

      public void chooseFile()
      Wrapper method for Processing's selectInput command

    • fileSelected

      public void fileSelected(File selectedFile)
      callback method for chooseFile(), handles standard audio and image formats for Processing. If a file has been successfully selected, continues with a call to loadAudioFile() or loadImageFile().
      Parameters:
      selectedFile - the File the user selected

    • loadAudioFile

      public void loadAudioFile(File audioFile)
      Attempts to load audio data from a selected file into playBuffer, then calls writeAudioToImage() to transcode audio data and write it to mapImage
      Parameters:
      audioFile - an audio file

    • writeAudioToImage

      public void writeAudioToImage()
      Convenience method to call writeAudioToImage(float[], PixelAudioMapper, PImage, PixelAudioMapper.ChannelNames) with audioSignal, mapper, and mapImage and ChannelNames.L as arguments.

    • writeAudioToImage

      public void writeAudioToImage(float[] sig, PixelAudioMapper mapper, processing.core.PImage img, PixelAudioMapper.ChannelNames chan)
      Transcodes audio data in sig[] and writes it to color channel chan of mapImage using the lookup tables in mapper to redirect indexing. Calls mapper.mapSigToImg(), which will throw an IllegalArgumentException if sig.length != img.pixels.length or sig.length != mapper.getSize().
      Parameters:
      sig - an source array of float, should be audio data in the range [-1.0, 1.0]
      mapper - a PixelAudioMapper
      img - a target PImage, modified by audio data in sig
      chan - a color channel

    • loadImageFile

      public void loadImageFile(File imgFile)
      Attempts to load image data from a selected file into mapImage, then calls writeImageToAudio() to transcode HSB brightness color data from the image to audio and writes it to audioBuffer and audioSignal.
      Parameters:
      imgFile - an image file

    • writeImageToAudio

      public void writeImageToAudio(processing.core.PImage img, PixelAudioMapper mapper, float[] sig, PixelAudioMapper.ChannelNames chan)
      This method writes a color channel from the an image to an audio signal, fulfilling a central concept of the PixelAudio library: image is sound. Calls mapper.mapImgToSig(), which will throw an IllegalArgumentException if img.pixels.length != sig.length or img.width * img.height != mapper.getWidth() * mapper.getHeight().
      Parameters:
      img - a PImage, a source of data
      mapper - a PixelAudioMapper, handles mapping between image and audio signal
      sig - an target array of float in audio format, rewritten by this method
      chan - a color channel

    • saveToAudio

      public void saveToAudio()

    • audioFileSelectedWrite

      public void audioFileSelectedWrite(File selection)

    • saveAudioToFile

      public void saveAudioToFile(float[] samples, float sampleRate, String fileName) throws IOException, UnsupportedAudioFileException
      Saves audio data to 16-bit integer PCM format, which Processing can also open. This same method can be called as a static method in PixelAudio.
      Parameters:
      samples - an array of floats in the audio range (-1.0f, 1.0f)
      sampleRate - audio sample rate for the file
      fileName - name of the file to save to
      Throws:
      IOException - an Exception you'll need to handle to call this method (see keyPressed entry for 's')
      UnsupportedAudioFileException - another Exception (see keyPressed entry for 's')

    • saveToImage

      public void saveToImage()

    • imageFileSelectedWrite

      public void imageFileSelectedWrite(File selection)

    • saveImageToFile

      public void saveImageToFile(processing.core.PImage img, String fileName)
