Package net.paulhertz.pixelaudio.example

Class LookupTables

java.lang.Object
processing.core.PApplet
net.paulhertz.pixelaudio.example.LookupTables
All Implemented Interfaces:
processing.core.PConstants
public class LookupTables extends processing.core.PApplet
Demo of a PixelAudio core concept: how to map a 1D audio signal onto a 2D bitmap, using lookup tables (LUTs) to create a one-to-one correspondence between audio samples and RGB pixels.

Because they are in one-to-one correspondence, the audio signal and image pixel arrays have the same number of entries. Imagine the audio signal as path that visits every pixel in a bitmap: the signal's lookup table for pixels is a list of the array indices of the pixels it visits, in the order it visits them. In PixelAudio documentation we refer to this path as the "signal path" over the image. By convention, pixel array coordinates start at (0,0) in the upper left corner of a bitmap, and proceed in "row major" order, left to right, top to bottom. We could call this the "image path" over the image. Unlike the signal path, the image path pixel order is fixed. The image has a corresponding lookup table, where the array indices of the audio signal are stored in the order of the pixel coordinates. The signal and bitmap lookup tables are inverses of each other, so that the signal can be mapped to the bitmap and the bitmap can be mapped to the signal. PixelAudio classes that implement the abstract PixelMapGen class just have to provide the coordinates of the signal path, then PixelMapGen will generate the lookup tables for the signal and the image. The coordinates may be generated by mathematical functions, but they only need to be calculated once.

In PixelAudio, I call a subclass of PixelMapGen a "gen" object. Gen objects plug in to PixelAudioMapper. PixelAudioMapper handles mapping back and forth between audio and images and can transcode audio and image data. It has methods for handling arrays of audio samples and RGB pixels and working with the RGB and HSB color spaces.

This example also shows 1) basic affine transforms of PixelMapGen objects, such as rotation and reflection, 2) how to change the PixelMapGen instance a PixelAudioMapper object is using, and 3) basic animation using array rotation.

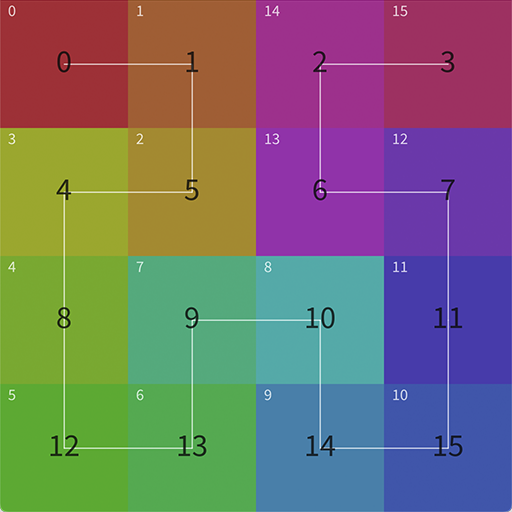

 Signal path index numbers are small white numbers.
 Bitmap index numbers are big black numbers.
 Read the signalToImageLUT values by following the white signal numbers
 and reading the black numbers.
 Read the imageToSignalLUT values by following the black pixel numbers
 and reading the white numbers.

 KEY COMMANDS

 Press 'a' to advance animation by one step.
 Press 'A' to rewind animation by one step.
 Press 'd' to print the current PixelMapGen's description String.
 Press 'g' to swap in a new PixelMapGen.
 Press 'n' to hide the numbers overlay.
 Press 'l' to hide the lines overlay.
 Press 'k' to print the imageToSignalLUT and the signalToImageLUT to the console.
 Press 't' to print affine maps to the console.
 Press 'f' to rotate current gen 90 degrees clockwise.
 Press 'b' to rotate current gen 90 degrees counterclockwise.
 Press 'r' to rotate current gen 180 degrees.
 Press 'x' to flip x-coordinates (reflect on y-axis).
 Press 'y' to flip y-coordinates (reflect on x-axis).
 Press '1' to mirror current gen on the primary diagonal, upper left to lower right.
 Press '2' to mirror current gen on the secondary diagonal, upper right to lower left.
 Press 'h' to show this help text in the console.

  • Field Summary

    Fields
    Modifier and Type
    Field
    Description
    (package private) BoustropheGen
    bGen

    (package private) int
    bigTextSize

    (package private) ArrayList<int[]>
    coords

    (package private) int
    drawingScale

    (package private) PixelMapGen
    gen

    (package private) int
    genH

    (package private) int
    genW

    (package private) HilbertGen
    hGen

    (package private) int
    imageHeight

    (package private) int[]
    imageLUT

    (package private) int
    imageWidth

    (package private) boolean
    isHideLines

    (package private) boolean
    isHideNumbers

    (package private) PixelAudioMapper
    mapper

    (package private) MooreGen
    mGen

    (package private) int
    offset

    (package private) PixelAudio
    pixelaudio

    (package private) int[]
    signalLUT

    (package private) int
    smallTextSize

    (package private) int[]
    spectrum

    (package private) DiagonalZigzagGen
    zGen


    Fields inherited from class processing.core.PApplet

    args, ARGS_BGCOLOR, ARGS_DISABLE_AWT, ARGS_DISPLAY, ARGS_EDITOR_LOCATION, ARGS_EXTERNAL, ARGS_FULL_SCREEN, ARGS_HIDE_STOP, ARGS_LOCATION, ARGS_PRESENT, ARGS_SKETCH_FOLDER, ARGS_STOP_COLOR, ARGS_UI_SCALE, ARGS_WINDOW_COLOR, DEFAULT_HEIGHT, DEFAULT_WIDTH, disableAWT, displayHeight, displayWidth, dmouseX, dmouseY, emouseX, emouseY, exitCalled, EXTERNAL_MOVE, EXTERNAL_STOP, finished, firstMouse, focused, frameCount, frameRate, frameRateLastNanos, g, height, insideDraw, javaPlatform, javaVersion, javaVersionName, key, keyCode, keyEvent, keyPressed, keyRepeatEnabled, looping, matchPatterns, mouseButton, mouseEvent, mousePressed, mouseX, mouseY, pixelDensity, pixelHeight, pixels, pixelWidth, platform, pmouseX, pmouseY, ratioLeft, ratioScale, ratioTop, recorder, redraw, rheight, rmouseX, rmouseY, rwidth, surface, useNativeSelect, width, windowX, windowY

    Fields inherited from interface processing.core.PConstants

    ADD, ALPHA, ALT, AMBIENT, ARC, ARGB, ARROW, BACKSPACE, BASELINE, BEVEL, BEZIER_VERTEX, BLEND, BLUR, BOTTOM, BOX, BREAK, BURN, CENTER, CHATTER, CHORD, CLAMP, CLOSE, CODED, COMPLAINT, CONTROL, CORNER, CORNERS, CROSS, CURVE_VERTEX, CUSTOM, DARKEST, DEG_TO_RAD, DELETE, DIAMETER, DIFFERENCE, DILATE, DIRECTIONAL, DISABLE_ASYNC_SAVEFRAME, DISABLE_BUFFER_READING, DISABLE_DEPTH_MASK, DISABLE_DEPTH_SORT, DISABLE_DEPTH_TEST, DISABLE_KEY_REPEAT, DISABLE_NATIVE_FONTS, DISABLE_OPENGL_ERRORS, DISABLE_OPTIMIZED_STROKE, DISABLE_STROKE_PERSPECTIVE, DISABLE_STROKE_PURE, DISABLE_TEXTURE_MIPMAPS, DODGE, DOWN, DXF, ELLIPSE, ENABLE_ASYNC_SAVEFRAME, ENABLE_BUFFER_READING, ENABLE_DEPTH_MASK, ENABLE_DEPTH_SORT, ENABLE_DEPTH_TEST, ENABLE_KEY_REPEAT, ENABLE_NATIVE_FONTS, ENABLE_OPENGL_ERRORS, ENABLE_OPTIMIZED_STROKE, ENABLE_STROKE_PERSPECTIVE, ENABLE_STROKE_PURE, ENABLE_TEXTURE_MIPMAPS, ENTER, EPSILON, ERODE, ESC, EXCLUSION, FX2D, GIF, GRAY, GROUP, HALF_PI, HAND, HARD_LIGHT, HINT_COUNT, HSB, IMAGE, INVERT, JAVA2D, JPEG, LANDSCAPE, LEFT, LIGHTEST, LINE, LINE_LOOP, LINE_STRIP, LINES, LINUX, MACOS, MACOSX, MAX_FLOAT, MAX_INT, MIN_FLOAT, MIN_INT, MITER, MODEL, MODELVIEW, MOVE, MULTIPLY, NORMAL, OPAQUE, OPEN, OPENGL, ORTHOGRAPHIC, OTHER, OVERLAY, P2D, P3D, PATH, PDF, PERSPECTIVE, PI, PIE, platformNames, POINT, POINTS, POLYGON, PORTRAIT, POSTERIZE, PROBLEM, PROJECT, PROJECTION, QUAD, QUAD_BEZIER_VERTEX, QUAD_STRIP, QUADRATIC_VERTEX, QUADS, QUARTER_PI, RAD_TO_DEG, RADIUS, RECT, REPEAT, REPLACE, RETURN, RGB, RIGHT, ROUND, SCREEN, SHAPE, SHIFT, SOFT_LIGHT, SPAN, SPHERE, SPOT, SQUARE, SUBTRACT, SVG, TAB, TARGA, TAU, TEXT, THIRD_PI, THRESHOLD, TIFF, TOP, TRIANGLE, TRIANGLE_FAN, TRIANGLE_STRIP, TRIANGLES, TWO_PI, UP, VERTEX, WAIT, WHITESPACE, WINDOWS, X, Y, Z

  • Constructor Summary

    Constructors
    Constructor
    Description
    LookupTables()


  • Method Summary

    Modifier and Type
    Method
    Description
    void
    draw()

    void
    drawLines()
    Draw lines to the display.
    void
    drawNumbers()
    Draw numbers to the display.
    void
    drawSquares()
    Draw color squares to the display.
    int[]
    getColors(int size)
    Creates an array of colors in rainbow (spectrum) order.
    void
    initGens()
    Initialize a HilbertGen, a DiagonalZigzagGen, a MooreGen, and a BoustropheGen that fit the width and height of this sketch.
    void
    initMapper(PixelMapGen gen)
    Initialize a PixelAudioMapper, mapper, with a supplied gen, and request some useful data structures from it.
    void
    keyPressed()

    static void
    main(String[] args)

    void
    printLUTs()
    Print the LUTs and gen coordinates to the console.
    void
    settings()

    void
    setup()

    void
    showHelp()

    void
    stepAnimation(int step)

    void
    testAffineMap(int w, int h)
    A test of the affine transforms in the BitmapTransform class, which uses indexing to perform bitmap rotation and reflection.
    void
    updateMapper(PixelMapGen gen)
    Swaps in a new gen to a previously created PixelAudioMapper instance, and reloads relevant data structures.

    Methods inherited from class processing.core.PApplet

    abs, abs, acos, alpha, ambient, ambient, ambient, ambientLight, ambientLight, append, append, append, append, append, append, applyMatrix, applyMatrix, applyMatrix, applyMatrix, applyMatrix, arc, arc, arraycopy, arraycopy, arraycopy, arrayCopy, arrayCopy, arrayCopy, asin, atan, atan2, attrib, attrib, attrib, attribColor, attribNormal, attribPosition, background, background, background, background, background, background, background, beginCamera, beginContour, beginPGL, beginRaw, beginRaw, beginRecord, beginRecord, beginShape, beginShape, bezier, bezier, bezierDetail, bezierPoint, bezierTangent, bezierVertex, bezierVertex, binary, binary, binary, binary, blend, blend, blendColor, blendMode, blue, box, box, brightness, calcSketchPath, camera, camera, ceil, checkAlpha, checkExtension, choice, choice, circle, clear, clip, color, color, color, color, color, color, color, color, colorMode, colorMode, colorMode, colorMode, concat, concat, concat, concat, concat, concat, concat, constrain, constrain, copy, copy, copy, cos, createFont, createFont, createFont, createGraphics, createGraphics, createGraphics, createImage, createInput, createInput, createInputRaw, createOutput, createOutput, createPath, createPath, createPrimaryGraphics, createReader, createReader, createReader, createShape, createShape, createShape, createWriter, createWriter, createWriter, cursor, cursor, cursor, cursor, curve, curve, curveDetail, curvePoint, curveTangent, curveTightness, curveVertex, curveVertex, dataFile, dataPath, day, debug, degrees, delay, dequeueEvents, desktopFile, desktopPath, die, die, directionalLight, displayDensity, displayDensity, dispose, dist, dist, edge, ellipse, ellipseMode, emissive, emissive, emissive, endCamera, endContour, endPGL, endRaw, endRecord, endShape, endShape, exec, exec, exit, exitActual, exitCalled, exp, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, fill, fill, fill, fill, fill, fill, filter, filter, filter, floor, flush, focusGained, focusLost, frameMoved, frameRate, frustum, fullScreen, fullScreen, fullScreen, fullScreen, get, get, get, getExtension, getGraphics, getMatrix, getMatrix, getMatrix, getSurface, green, handleDraw, handleKeyEvent, handleMethods, handleMouseEvent, hex, hex, hex, hex, hideMenuBar, hint, hour, hue, image, image, image, imageMode, initSurface, insertFrame, isLooping, join, join, keyPressed, keyReleased, keyReleased, keyTyped, keyTyped, launch, lerp, lerpColor, lerpColor, lightFalloff, lights, lightSpecular, line, line, link, listFiles, listFiles, listPaths, loadBytes, loadBytes, loadBytes, loadFont, loadImage, loadImage, loadJSONArray, loadJSONArray, loadJSONObject, loadJSONObject, loadPixels, loadShader, loadShader, loadShape, loadShape, loadStrings, loadStrings, loadStrings, loadStrings, loadTable, loadTable, loadXML, loadXML, log, loop, mag, mag, main, main, main, makeGraphics, map, mask, match, matchAll, max, max, max, max, max, max, method, millis, min, min, min, min, min, min, minute, modelX, modelY, modelZ, month, mouseClicked, mouseClicked, mouseDragged, mouseDragged, mouseEntered, mouseEntered, mouseExited, mouseExited, mouseMoved, mouseMoved, mousePressed, mousePressed, mouseReleased, mouseReleased, mouseWheel, mouseWheel, nf, nf, nf, nf, nf, nf, nfc, nfc, nfc, nfc, nfp, nfp, nfp, nfp, nfs, nfs, nfs, nfs, noClip, noCursor, noFill, noise, noise, noise, noiseDetail, noiseDetail, noiseSeed, noLights, noLoop, norm, normal, noSmooth, noStroke, noTexture, noTint, orientation, ortho, ortho, ortho, parseBoolean, parseBoolean, parseBoolean, parseBoolean, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseChar, parseChar, parseChar, parseChar, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseJSONArray, parseJSONObject, parseXML, parseXML, pause, perspective, perspective, pixelDensity, point, point, pointLight, pop, popMatrix, popStyle, postEvent, postWindowMoved, postWindowResized, pow, print, print, print, print, print, print, print, print, print, printArray, printCamera, println, println, println, println, println, println, println, println, println, println, println, printMatrix, printProjection, printStackTrace, push, pushMatrix, pushStyle, quad, quadraticVertex, quadraticVertex, radians, random, random, randomGaussian, randomSeed, rect, rect, rect, rectMode, red, redraw, registerMethod, requestImage, requestImage, resetMatrix, resetShader, resetShader, resume, reverse, reverse, reverse, reverse, reverse, reverse, reverse, rotate, rotate, rotateX, rotateY, rotateZ, round, runSketch, runSketch, runSketch, saturation, save, saveBytes, saveBytes, saveBytes, saveFile, saveFrame, saveFrame, saveJSONArray, saveJSONArray, saveJSONObject, saveJSONObject, savePath, saveStream, saveStream, saveStream, saveStream, saveStream, saveStrings, saveStrings, saveStrings, saveTable, saveTable, saveXML, saveXML, scale, scale, scale, screenX, screenX, screenY, screenY, screenZ, second, selectCallback, selectFolder, selectFolder, selectFolder, selectInput, selectInput, selectInput, selectOutput, selectOutput, selectOutput, set, set, setMatrix, setMatrix, setMatrix, setSize, shader, shader, shape, shape, shape, shapeMode, shearX, shearY, shell, shininess, shorten, shorten, shorten, shorten, shorten, shorten, shorten, showDepthWarning, showDepthWarningXYZ, showMethodWarning, showMissingWarning, showSurface, showVariationWarning, sin, size, size, size, sketchDisplay, sketchFile, sketchFullScreen, sketchHeight, sketchOutputPath, sketchOutputStream, sketchPath, sketchPath, sketchPixelDensity, sketchRenderer, sketchSmooth, sketchWidth, sketchWindowColor, smooth, smooth, sort, sort, sort, sort, sort, sort, sort, sort, sort, sort, specular, specular, specular, sphere, sphereDetail, sphereDetail, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, split, split, splitTokens, splitTokens, spotLight, sq, sqrt, square, start, startSurface, stop, str, str, str, str, str, str, str, str, str, str, stroke, stroke, stroke, stroke, stroke, stroke, strokeCap, strokeJoin, strokeWeight, style, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, tan, text, text, text, text, text, text, text, text, text, text, text, textAlign, textAlign, textAscent, textDescent, textFont, textFont, textLeading, textMode, textSize, texture, textureMode, textureWrap, textWidth, textWidth, textWidth, thread, tint, tint, tint, tint, tint, tint, translate, translate, triangle, trim, trim, unbinary, unhex, unregisterMethod, updatePixels, updatePixels, urlDecode, urlEncode, vertex, vertex, vertex, vertex, vertex, windowMove, windowMoved, windowRatio, windowResizable, windowResize, windowResized, windowTitle, year

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Field Details

    • pixelaudio

      PixelAudio pixelaudio

    • hGen

      HilbertGen hGen

    • mGen

      MooreGen mGen

    • zGen

      DiagonalZigzagGen zGen

    • bGen

      BoustropheGen bGen

    • gen

      PixelMapGen gen

    • mapper

      PixelAudioMapper mapper

    • spectrum

      int[] spectrum

    • coords

      ArrayList<int[]> coords

    • imageLUT

      int[] imageLUT

    • signalLUT

      int[] signalLUT

    • imageWidth

      int imageWidth

    • imageHeight

      int imageHeight

    • genW

      int genW

    • genH

      int genH

    • drawingScale

      int drawingScale

    • offset

      int offset

    • bigTextSize

      int bigTextSize

    • smallTextSize

      int smallTextSize

    • isHideNumbers

      boolean isHideNumbers

    • isHideLines

      boolean isHideLines

  • Constructor Details

    • LookupTables

      public LookupTables()

  • Method Details

    • main

      public static void main(String[] args)

    • settings

      public void settings()
      Overrides:
      settings in class processing.core.PApplet

    • setup

      public void setup()
      Overrides:
      setup in class processing.core.PApplet

    • initGens

      public void initGens()
      Initialize a HilbertGen, a DiagonalZigzagGen, a MooreGen, and a BoustropheGen that fit the width and height of this sketch.

    • initMapper

      public void initMapper(PixelMapGen gen)
      Initialize a PixelAudioMapper, mapper, with a supplied gen, and request some useful data structures from it.
      Parameters:
      gen - a PixelMapGen instance

    • updateMapper

      public void updateMapper(PixelMapGen gen)
      Swaps in a new gen to a previously created PixelAudioMapper instance, and reloads relevant data structures.
      Parameters:
      gen - a PixelMapGen instance

    • draw

      public void draw()
      Overrides:
      draw in class processing.core.PApplet

    • keyPressed

      public void keyPressed()
      Overrides:
      keyPressed in class processing.core.PApplet

    • showHelp

      public void showHelp()

    • getColors

      public int[] getColors(int size)
      Creates an array of colors in rainbow (spectrum) order.
      Parameters:
      size - size of the desired array
      Returns:
      an array of colors in rainbow (spectrum) order

    • printLUTs

      public void printLUTs()
      Print the LUTs and gen coordinates to the console.

    • testAffineMap

      public void testAffineMap(int w, int h)
      A test of the affine transforms in the BitmapTransform class, which uses indexing to perform bitmap rotation and reflection.
      Parameters:
      w - width of a hypothetical bitmap
      h - height of a hypothetical bitmap

    • drawSquares

      public void drawSquares()
      Draw color squares to the display.

    • drawLines

      public void drawLines()
      Draw lines to the display.

    • drawNumbers

      public void drawNumbers()
      Draw numbers to the display.

    • stepAnimation

      public void stepAnimation(int step)
