Package net.paulhertz.pixelaudio.example

Class MultiGenDemo

java.lang.Object
processing.core.PApplet
net.paulhertz.pixelaudio.example.MultiGenDemo
All Implemented Interfaces:
processing.core.PConstants
public class MultiGenDemo extends processing.core.PApplet
How to combine multiple PixelMapGens into a MultiGen with a single signal path.

MultiGen is child class of PixelMapGen that allows you to combine multiple PixelMapGens into a single PixelMapGen, with a single signal path through all the gens. There are four different constructors that you can use. The first two, MultiGen(int width, int height) and MultiGen(int width, int height, AffineTransformType type), create two DiagonalZigzagGens to fill whatever width and height you provide. Things get interesting with the two custom constructors, MultiGen(int width, int height, int rows, int columns, ArrayList<PixelMapGen> genList) and MultiGen(int width, int height, ArrayList<int[]> offsetList, ArrayList<PixelMapGen> genList).

Both custom constructors require an ArrayList of PixelMapGens. The dimensions of the gens should be tailored for the width and height of the application window, so that width == rows * genWidth and height == columns * genHeight. In the first custom constructor, the number of rows and columns is used to calculate the dimensions of the gens. It's easy to use.

The second custom constructor is the more flexible of the two. In the second constructor, you can specify the location of the top left corner of each gen in offsetList, an ArrayList of int[] arrays that specify x and y offsets for each gen in the genList. With some planning of the spatial location and the AffineTransformType applied to each gen in the genlist, you can often create a continuous signal path through the final image. This application demonstrates how to do that with HilbertGens.

The PixelMapGen subclasses HilbertGen, DiagonalZigzagGen, and BoustropheGen include various static methods to generate MultiGen objects. Check them out.

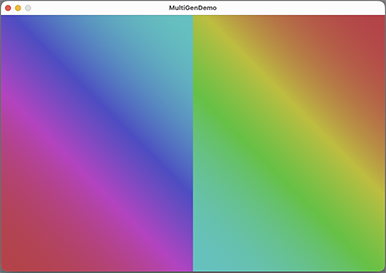

Animation helps to visualize the orientation of PixelMapGen objects. Press 'a' to toggle animation that shifts pixels along the signal path.

 KEY COMMANDS

 Press 'a' to toggle animation.
 Press 'd' to show default MultiGen.
 Press 't' to step through transformed MultiGen objects.
 Press 'r' to show random mix of HilbertGen and DiagonalZigzagGen objects with a discontinuous signal path.
 Press 'c' to show a MultiGen made of HilbertGen objects with a continuous signal path.
 Press 'C' to show a MultiGen made with a mix of HilbertGen and DiagonalZigzagGen objects with a continuous path.
 Press 'h' to show help message in Console.
