Package net.paulhertz.pixelaudio.example

Class SimpleWaveSynth

java.lang.Object
processing.core.PApplet
net.paulhertz.pixelaudio.example.SimpleWaveSynth
All Implemented Interfaces:
processing.core.PConstants
public class SimpleWaveSynth extends processing.core.PApplet
SimpleWaveSynth demonstrates the basics of setting up a WaveSynth as an animated visual display. We'll work with WaveSynth audio in other sketches.

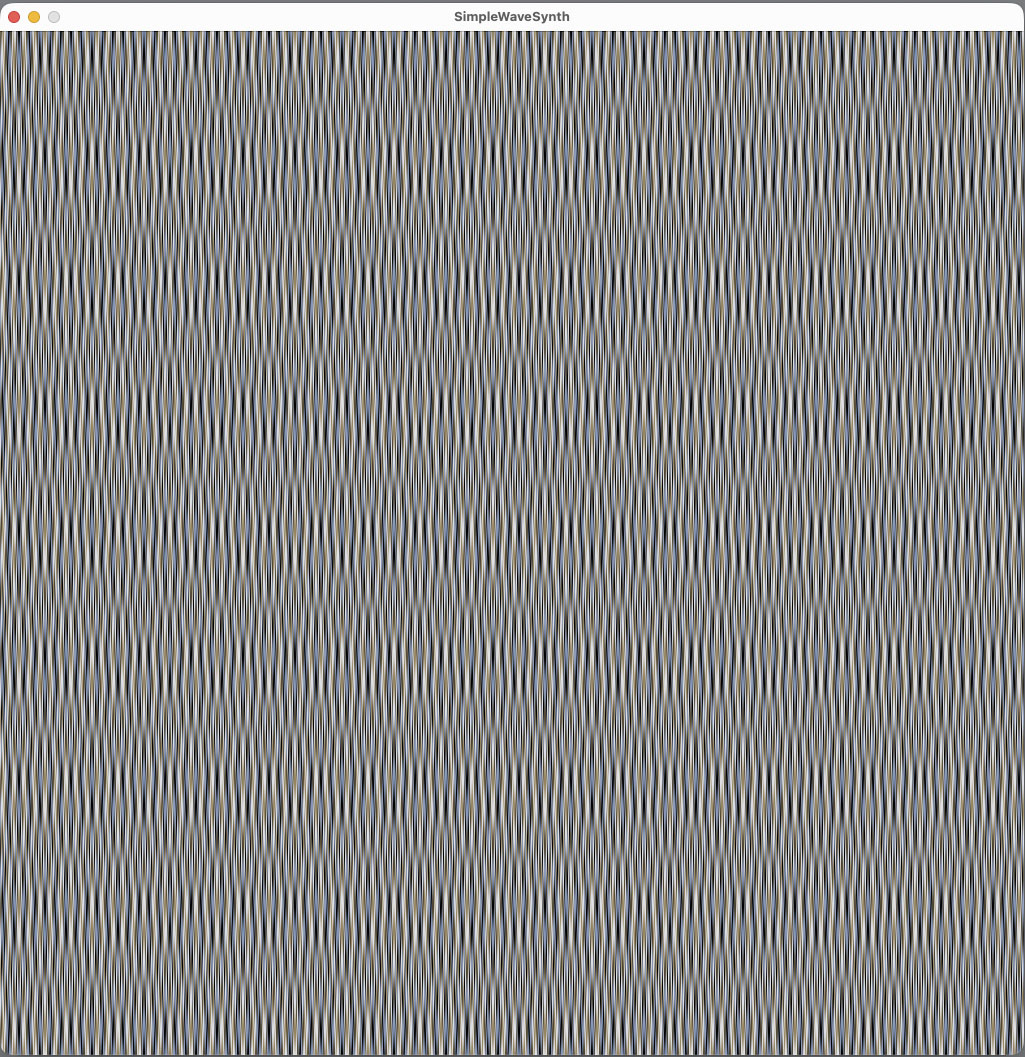

SimpleWaveSynth Screen
WaveSynth screen for a with a BoustropheGen PixelMapGen and WaveSynth.sampleRate == 48000.

A WaveSynth uses additive audio synthesis of sine wave "operators" to generate both an audio signal array and an RGB "color signal" array. The color signal serves as the pixel array of a PImage instance variable of the WaveSynth, WaveSynth.mapImage. In this sketch, the dimensions of the image are the same as the display image, this.mapImage.

The appearance of a WaveSynth is governed by the PixelMapGen we use and by the internal sampling rate of the WaveSynth. By default, WaveSynth.sampleRate = WaveSynth.mapSize, the dimensions of the PImage the WaveSynth uses for its derived image. The sine wave operators are stored as WaveData objects. Each WaveData object has fields for frequency, amplitude, phase, number of cycles per animation sequence, etc. When the internal sampling rate of the WaveSynth equals the width * height of its mapImage, this means that one cycle of a 1.0 Hz sine wave will fill its signal array. Similarly, the color controlled by that WaveData object in the color array will change its brightness over one cycle of a sine wave. When a WaveSynth is animated, it sums the operator sine waves to create an audio signal and it sums the operator colors to create a color array that it writes to its mapImage, moving through the operator values frame by frame. For more details, see the WaveSynth code and javadoc.

 Press '\t' (tab) to toggle animation.
 Press '1' to set WaveSynth gamma to 1.0.
 Press '2' to set WaveSynth gamma to 1.4.
 Press '3' to set WaveSynth gamma to 1.8.
 Press '4' to set WaveSynth gamma to 0.5.
 Press 'g' to swap in a different PixelMapGen for the WaveSynth.
 Press 'f' to set the WaveSynth to output an image rotated 90 degrees clockwise.
 Press 'r' to step though different values for the internal sample rate of the WaveSynth.
 Press 'R' to set the internal sample rate of the WaveSynth to mapSize.
 Press 't' to output the gamma table for the current gamma value myGamma.
 Press 'i' to output display frame rate to the console.
 Press 'h' to show the help message in the console.
