processing.core.PApplet

net.paulhertz.pixelaudio.example.TutorialOne_02_Animation

All Implemented Interfaces:: processing.core.PConstants

public class TutorialOne_02_Animation extends processing.core.PApplet

Pixel-shift animation, plus panning and pitch controls for the Sampler synth. Builds on TutorialOne_01_FileIO, which provided commands to open and display audio and image files, transcode image pixel data to audio samples, transcode audio samples to image pixel data, and save audio and image files. TutorialOne_01_FileIO also introduced a digital audio instrument, PASamplerInstrument, and provided an interface which responds to mouse clicks by playing the audio samples corresponding to the click location in the display image. In this sketch, we add panning and pitch control to PASamplerInstrument playSample(...) methods. The other audio instrument, the Granular Synthesis instrument, will be introduced later on. This sketch introduces the animation feature built-in to PixelAudioMapper, pixel-shifting along the Signal Path, which shifts pixels in the display and changes the correspondence between screen coordinates and audio signal index position. The animation provides an analog to visual "audio streaming" and can be used to create a sort of "music box" audio player.

QUICK START

Launch the sketch and then press the 'o' key to open an image or audio file. The "audioBlend.wav" file is good for experimenting. The audio data in it will be transcoded to gray scale pixel data and displayed in the window.
Press space or click on the display image to trigger audio events. To see the signal path as a color overlay, press the 'K' key.
Press 'm' to run the "Music Box" routine, which triggers an audio event every frame in the same location while animating the display image with pixel shifting.
Use the UP and DOWN arrow keys to change the amount of pixel shifting, and the 'A' key to reverse the direction of shifting. Use the 'p' and 'P' keys to change the pitch of the audio. Press 'r' to turn random ADSR envelope selection on and off. See below for more information.

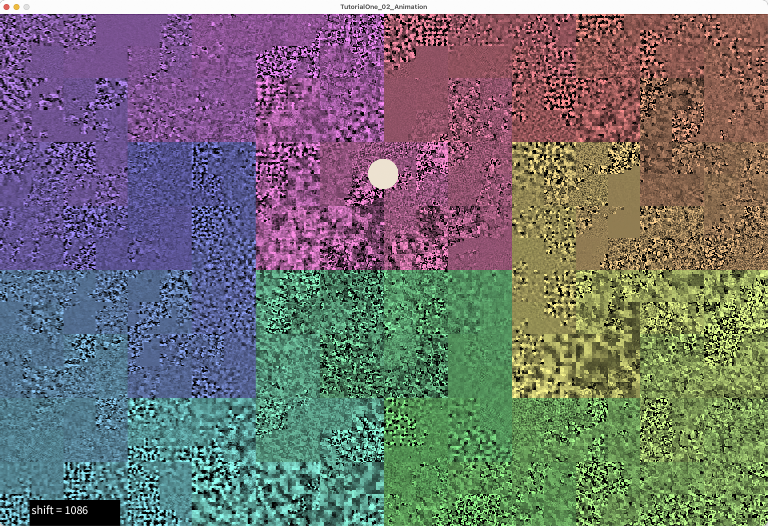

We add a simple form of animation in this sketch, which consists of shifting the pixels in the display image along the "signal path". This is a simple way to create an animation that is directly tied to the audio data. When the image we are animating is a representation of audio data or some other sort of periodic pattern, pixel-shfting can result in hypnotic animated patterns. This is demonstrated by the the WaveSynth class and the WaveSynthEditor and ArgosyMixer sample sketches. When the pixels in the display image are shifted, the correspondence between pixel coordinates and audio buffer index changes. This is particularly evident when the image is a visualization of the audio buffer. If you are looking at an image that represents audio data, such as Saucer_mixdown.wav, you can see how animation changes the apparent position of the audio data. When animation is running, repeated clicks at the same location in the window will trigger different audio events.

Pixel shifting animation works by moving the pixels in the display image mapImage once every frame by the number of pixels specified by the variable shift, and tracking the accummulated shifting with another variable, totalShift. The audio buffer itself is never shifted, nor is the canonic image baseImage. We just use totalShift to determine where to locate pixels or audio samples. The shifting is managed by the PixelAudioMapper object mapper, which provides methods for accessing pixel and audio data with shifting taken into account. Of course, if you only want to animate the image, you can just ignore the value of totalShift when accessing the audioBuffer.

The shift variable can be tied to the audio sample rate and the video frame rate in such a way that the animation is synchronized with the audio when we trigger an audio event once every frame. If the audio sample rate is 44100 and the video frame rate is 24, as it is in this example, then we can set shift to 44100/24, which is about 1838 ('m' key). If we then trigger an audio event once every frame in the same location in the window, the audio events will advance through the buffer in sync with the animation, and the audio will play more or less as it would if it were streaming from a file. If you double the shift or cut it in half (UP ARROW or DOWN ARROW), the audio events will happen at double or half speed. If you reverse the sign of shift ('A' key), the animation will run backwards, and the audio events will also happen in reverse order.

We also provide commands for saving an animation to video ('V' key) and saving the display image and audio buffer to files. To visualize the Signal Path, you can use the 'k' or 'K' keys to overlay a spectrum of color on the display image. The 'K' key will write the spectrum to baseImage, so that it will persist when running animation. The 'k' key will write color data to mapImage only.

We continue to use the Sampler instrument for audio events, showing how it can control the pitch and panning of an audio event. The playSample() methods in this sketch introduce the most complete audio triggering method available in PASamplerInstrument, one which can set sample start position, length, amplitude, ADSR-style envelope, pitch scaling and stereo pan location.

   samplelen = synth.playSample(samplePos, (int) samplelen, amplitude, env, pitchScaling, pan);

Pitch scaling by default is 1.0, which is to say that samples will be played back at the recorded frequency. Panning, if it is not supplied as an argument to playSample(), is centered in the stereo field. We calculate the panning value by mapping the x-coordinate of the mouse position to the stereo pan value.

Still to come, as the tutorial advances:

drawing to trigger audio events
the Granular Synthesis instruments
UDP communication with Max and other media applications

The key commands

   Press UP ARROW to increment pixel shift.
   Press DOWN ARROW to decrement pixel shift.
   Press ' ' (spacebar) to play sample at current mouse position.
   Press 'a' to turn animation on or off.
   Press 'A' to change animation direction.
   Press 'f' to rotate pixels by shift value .
   Press 'F' to rotate pixels by shift value .
   Press 'm' to play audio events synced to audio sample rate and video frame rate.
   Press 'c' to apply color from image file to display image (mapImage) only.
   Press 'C' to apply color from image file to base image and map image.
   Press 'k' to apply hue and saturation in the spectrum array to mapImage .
   Press 'K' to apply hue and saturation in the spectrum array to baseImage.
   Press 'o' or 'O' to open an audio or image file.
   Press 'p' to select low pitch scaling or default pitch scaling.
   Press 'P' to select high pitch scaling or default pitch scaling.
   Press 'd' or 'D' to turn rain on and off.
   Press 'r' or 'R' to toggle isRandomADSR, to use default envelope or a random choice.
   Press 's' to save display image to a PNG file.
   Press 'S' to save audio buffer to a .wav file.
   Press 'V' to record a video from frame 0 to frame animSteps.
   Press 'w' to show data values in display.
   Press 'h' or 'H' to show help message.

Field Summary

Fields

Modifier and Type

Field

Description

(package private) ArrayList<ADSRParams>

adsrList

(package private) int

animSteps

(package private) float

attackTime

(package private) File

audioFile

(package private) int

audioFileLength

(package private) String

audioFileName

(package private) String

audioFilePath

(package private) String

audioFileTag

(package private) float

audioGain

(package private) int

audioLength

(package private) ddf.minim.AudioOutput

audioOut

(package private) float[]

audioSignal

(package private) processing.core.PImage

baseImage

(package private) float

bufferSampleRate

(package private) PixelAudioMapper.ChannelNames

chan

(package private) int

count

(package private) float

decayTime

(package private) ADSRParams

defaultEnv

(package private) float

defaultPitchScaling

(package private) boolean

doResample

(package private) int

fileIndex

(package private) float

fileSampleRate

(package private) int

genHeight

(package private) int

genWidth

(package private) float

highPitchScaling

(package private) File

imageFile

(package private) int

imageFileHeight

(package private) String

imageFileName

(package private) String

imageFilePath

(package private) String

imageFileTag

(package private) int

imageFileWidth

(package private) boolean

isAnimating

(package private) boolean

isPlayMusicBox

(package private) boolean

isRaining

(package private) boolean

isRandomADSR

(package private) boolean

isRecordingVideo

(package private) boolean

isShowOverlay

(package private) float

lowPitchScaling

(package private) processing.core.PImage

mapImage

(package private) PixelAudioMapper

mapper

(package private) int

mapSize

(package private) float

maxAmplitude

(package private) ddf.minim.Minim

minim

Minim audio library

(package private) MultiGen

multigen

(package private) int

noteDuration

(package private) boolean

oldIsAnimating

(package private) float

pitchScaling

(package private) PixelAudio

pixelaudio

(package private) ddf.minim.MultiChannelBuffer

playBuffer

(package private) float

releaseTime

(package private) float

sampleRate

(package private) float

samplerGain

(package private) int

shift

(package private) int

shiftInc

(package private) int[]

spectrum

(package private) int

step

(package private) float

sustainLevel

(package private) PASamplerInstrument

synth

(package private) ArrayList<TimedLocation>

timeLocsArray

(package private) int

totalShift

(package private) int

videoFrameRate

(package private) com.hamoid.VideoExport

videx

Fields inherited from class processing.core.PApplet
args, ARGS_BGCOLOR, ARGS_DISABLE_AWT, ARGS_DISPLAY, ARGS_EDITOR_LOCATION, ARGS_EXTERNAL, ARGS_FULL_SCREEN, ARGS_HIDE_STOP, ARGS_LOCATION, ARGS_PRESENT, ARGS_SKETCH_FOLDER, ARGS_STOP_COLOR, ARGS_UI_SCALE, ARGS_WINDOW_COLOR, DEFAULT_HEIGHT, DEFAULT_WIDTH, disableAWT, displayHeight, displayWidth, dmouseX, dmouseY, emouseX, emouseY, exitCalled, EXTERNAL_MOVE, EXTERNAL_STOP, finished, firstMouse, focused, frameCount, frameRate, frameRateLastNanos, g, height, insideDraw, javaPlatform, javaVersion, javaVersionName, key, keyCode, keyEvent, keyPressed, keyRepeatEnabled, looping, matchPatterns, mouseButton, mouseEvent, mousePressed, mouseX, mouseY, pixelDensity, pixelHeight, pixels, pixelWidth, platform, pmouseX, pmouseY, ratioLeft, ratioScale, ratioTop, recorder, redraw, rheight, rmouseX, rmouseY, rwidth, surface, useNativeSelect, width, windowX, windowY

Fields inherited from interface processing.core.PConstants
ADD, ALPHA, ALT, AMBIENT, ARC, ARGB, ARROW, BACKSPACE, BASELINE, BEVEL, BEZIER_VERTEX, BLEND, BLUR, BOTTOM, BOX, BREAK, BURN, CENTER, CHATTER, CHORD, CLAMP, CLOSE, CODED, COMPLAINT, CONTROL, CORNER, CORNERS, CROSS, CURVE_VERTEX, CUSTOM, DARKEST, DEG_TO_RAD, DELETE, DIAMETER, DIFFERENCE, DILATE, DIRECTIONAL, DISABLE_ASYNC_SAVEFRAME, DISABLE_BUFFER_READING, DISABLE_DEPTH_MASK, DISABLE_DEPTH_SORT, DISABLE_DEPTH_TEST, DISABLE_KEY_REPEAT, DISABLE_NATIVE_FONTS, DISABLE_OPENGL_ERRORS, DISABLE_OPTIMIZED_STROKE, DISABLE_STROKE_PERSPECTIVE, DISABLE_STROKE_PURE, DISABLE_TEXTURE_MIPMAPS, DODGE, DOWN, DXF, ELLIPSE, ENABLE_ASYNC_SAVEFRAME, ENABLE_BUFFER_READING, ENABLE_DEPTH_MASK, ENABLE_DEPTH_SORT, ENABLE_DEPTH_TEST, ENABLE_KEY_REPEAT, ENABLE_NATIVE_FONTS, ENABLE_OPENGL_ERRORS, ENABLE_OPTIMIZED_STROKE, ENABLE_STROKE_PERSPECTIVE, ENABLE_STROKE_PURE, ENABLE_TEXTURE_MIPMAPS, ENTER, EPSILON, ERODE, ESC, EXCLUSION, FX2D, GIF, GRAY, GROUP, HALF_PI, HAND, HARD_LIGHT, HINT_COUNT, HSB, IMAGE, INVERT, JAVA2D, JPEG, LANDSCAPE, LEFT, LIGHTEST, LINE, LINE_LOOP, LINE_STRIP, LINES, LINUX, MACOS, MACOSX, MAX_FLOAT, MAX_INT, MIN_FLOAT, MIN_INT, MITER, MODEL, MODELVIEW, MOVE, MULTIPLY, NORMAL, OPAQUE, OPEN, OPENGL, ORTHOGRAPHIC, OTHER, OVERLAY, P2D, P3D, PATH, PDF, PERSPECTIVE, PI, PIE, platformNames, POINT, POINTS, POLYGON, PORTRAIT, POSTERIZE, PROBLEM, PROJECT, PROJECTION, QUAD, QUAD_BEZIER_VERTEX, QUAD_STRIP, QUADRATIC_VERTEX, QUADS, QUARTER_PI, RAD_TO_DEG, RADIUS, RECT, REPEAT, REPLACE, RETURN, RGB, RIGHT, ROUND, SCREEN, SHAPE, SHIFT, SOFT_LIGHT, SPAN, SPHERE, SPOT, SQUARE, SUBTRACT, SVG, TAB, TARGA, TAU, TEXT, THIRD_PI, THRESHOLD, TIFF, TOP, TRIANGLE, TRIANGLE_FAN, TRIANGLE_STRIP, TRIANGLES, TWO_PI, UP, VERTEX, WAIT, WHITESPACE, WINDOWS, X, Y, Z
Constructor Summary

Constructors

Constructor

Description

TutorialOne_02_Animation()
Method Summary

Modifier and Type

Method

Description

void

animate()

int[]

applyColor(int[] colorSource, int[] graySource, int[] lut)

Utility method for applying hue and saturation values from a source array of RGB values to the brightness values in a target array of RGB values, using a lookup table to redirect indexing.

void

applyColorMapToDisplay(boolean updateBaseImage)

Apply color map hue and saturation to mapImage or baseImage.

int[]

applyColorShifted(int[] colorSource, int[] graySource, int[] lut, int pixelShift)

Utility method for applying hue and saturation values from a source array of RGB values to the brightness values in a target array of RGB values, using a lookup table to redirect indexing.

void

applyImageColor(File imgFile, processing.core.PImage targetImage)

Apply the hue and saturation of a chosen image file to the brightness channel of the display image.

void

audioFileSelectedWrite(File selection)

void

audioMouseClick(int x, int y)

Typically called from mousePressed with mouseX and mouseY, generates audio events.

int

calcSampleLen()

void

chooseColorImage()

Call to initiate process of opening an image file to get its color data.

void

chooseColorImageAndStore()

void

chooseFile()

Wrapper method for Processing's selectInput command

int

clipToHeight(int y)

int

clipToWidth(int x)

void

colorFileSelected(File selectedFile)

callback method for chooseColorImage()

void

colorFileSelectedToStore(File selectedFile)

void

commitMapImageToAudio()

void

commitMapImageToBaseImage()

Writes the mapImage, which may change with animation, to the baseImage, a reference image that usually only changes when a new file is loaded.

void

commitNewBaseImage(processing.core.PImage img)

Copies the supplied PImage to mapImage and baseImage, sets totalShift to 0 (the images are identical).

void

doRain()

drop some random audio events, like unto the gentle rain

void

draw()

void

drawCircle(int x, int y)

Draws a circle at the location of an audio trigger (mouseDown event).

(package private) void

ensureSamplerReady()

Prepares Sampler instruments and assets

void

fileSelected(File selectedFile)

callback method for chooseFile(), handles standard audio and image formats for Processing.

int[]

getColors(int size)

Generates an array of rainbow colors using the HSB color space.

int

getSamplePos(int x, int y)

Calculates the index of the image pixel within the signal path, taking the shifting of pixels and audioSignal into account.

void

imageFileSelectedWrite(File selection)

void

initADSRList()

void

initAudio()

CALL THIS METHOD IN SETUP() Initializes Minim audio library and audio variables.

void

initImages()

Initializes mapImage with the colors array, copies mapImage to baseImage.

void

keyPressed()

built-in keyPressed handler, forwards events to parseKey.

void

loadAudioFile(File audFile)

Attempts to load audio data from a selected file into playBuffer, then calls writeAudioToImage() to transcode audio data and write it to mapImage If doResample is true, resamples files whose sample rate differs from the current audio output.

void

loadImageFile(File imgFile)

Attempts to load image data from a selected file into mapImage, then calls writeImageToAudio() to transcode HSB brightness color data from the image to audio and writes it to playBuffer and audioSignal.

static void

main(String[] args)

void

mouseClicked()

void

mouseDragged()

void

mousePressed()

The built-in mousePressed handler for Processing, not used yet...

void

mouseReleased()

void

parseKey(char key, int keyCode)

Handles key press events passed on by the built-in keyPressed method.

int

playSample(int samplePos, int samplelen, float amplitude, float pan)

Plays an audio sample with PASamplerInstrument and default ADSR.

int

playSample(int samplePos, int samplelen, float amplitude, ADSRParams env, float pan)

Plays an audio sample with PASamplerInstrument and custom ADSR.

void

refreshMapImageFromBase()

Writes baseImage to mapImage with an index position offset of totalShift.

void

renderAudioToMapImage(PixelAudioMapper.ChannelNames chan, int shift)

Render audio into mapImage at an arbitrary phase offset.

void

renderFrame(int step)

void

renderFrame(int step, boolean isInverseShift)

Renders a frame of animation: moving along the signal path, copies baseImage pixels to mapImage pixels, adjusting the index position of the copy using totalShift i.e.

void

renderMapImageToAudio(PixelAudioMapper.ChannelNames chan)

Writes a specified channel of mapImage to audioSignal.

void

runTimeArray()

Run the animation for audio events.

void

saveAudioToFile(float[] samples, float sampleRate, String fileName)

Saves audio data to 16-bit integer PCM format, which Processing can also open.

void

saveImageToFile(processing.core.PImage img, String fileName)

void

saveToAudio()

void

saveToImage()

void

settings()

void

setup()

void

showHelp()

to generate help output, run RegEx search/replace on parseKey case lines with: // case ('.'): // (.+) // println(" * Press $1 to $2.");

void

stepAnimation()

Step through the animation, called by the draw() method.

void

stop()

turn off audio processing when we exit

(package private) void

updateAudioChain(float[] sig)

(package private) void

updateAudioChain(float[] sig, float bufferSampleRate)

Bottleneck "commit" method for audio state.

void

writeAudioToImage(float[] sig, PixelAudioMapper mapper, processing.core.PImage img, PixelAudioMapper.ChannelNames chan, int shift)

Transcodes audio data in sig[] and writes it to color channel chan of img using the lookup tables in mapper to redirect indexing.

void

writeImageToAudio(processing.core.PImage img, PixelAudioMapper mapper, float[] sig, PixelAudioMapper.ChannelNames chan, int shift)

This method writes a color channel from an image to playBuffer, fulfilling a central concept of the PixelAudio library: image is sound.

void

writeToScreen(String msg, int x, int y, int weight, boolean isWhite)

Displays a line of text to the screen, usually in the draw loop.

Methods inherited from class processing.core.PApplet
abs, abs, acos, alpha, ambient, ambient, ambient, ambientLight, ambientLight, append, append, append, append, append, append, applyMatrix, applyMatrix, applyMatrix, applyMatrix, applyMatrix, arc, arc, arraycopy, arraycopy, arraycopy, arrayCopy, arrayCopy, arrayCopy, asin, atan, atan2, attrib, attrib, attrib, attribColor, attribNormal, attribPosition, background, background, background, background, background, background, background, beginCamera, beginContour, beginPGL, beginRaw, beginRaw, beginRecord, beginRecord, beginShape, beginShape, bezier, bezier, bezierDetail, bezierPoint, bezierTangent, bezierVertex, bezierVertex, binary, binary, binary, binary, blend, blend, blendColor, blendMode, blue, box, box, brightness, calcSketchPath, camera, camera, ceil, checkAlpha, checkExtension, choice, choice, circle, clear, clip, color, color, color, color, color, color, color, color, colorMode, colorMode, colorMode, colorMode, concat, concat, concat, concat, concat, concat, concat, constrain, constrain, copy, copy, copy, cos, createFont, createFont, createFont, createGraphics, createGraphics, createGraphics, createImage, createInput, createInput, createInputRaw, createOutput, createOutput, createPath, createPath, createPrimaryGraphics, createReader, createReader, createReader, createShape, createShape, createShape, createWriter, createWriter, createWriter, cursor, cursor, cursor, cursor, curve, curve, curveDetail, curvePoint, curveTangent, curveTightness, curveVertex, curveVertex, dataFile, dataPath, day, debug, degrees, delay, dequeueEvents, desktopFile, desktopPath, die, die, directionalLight, displayDensity, displayDensity, dispose, dist, dist, edge, ellipse, ellipseMode, emissive, emissive, emissive, endCamera, endContour, endPGL, endRaw, endRecord, endShape, endShape, exec, exec, exit, exitActual, exitCalled, exp, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, fill, fill, fill, fill, fill, fill, filter, filter, filter, floor, flush, focusGained, focusLost, frameMoved, frameRate, frustum, fullScreen, fullScreen, fullScreen, fullScreen, get, get, get, getExtension, getGraphics, getMatrix, getMatrix, getMatrix, getSurface, green, handleDraw, handleKeyEvent, handleMethods, handleMouseEvent, hex, hex, hex, hex, hideMenuBar, hint, hour, hue, image, image, image, imageMode, initSurface, insertFrame, isLooping, join, join, keyPressed, keyReleased, keyReleased, keyTyped, keyTyped, launch, lerp, lerpColor, lerpColor, lightFalloff, lights, lightSpecular, line, line, link, listFiles, listFiles, listPaths, loadBytes, loadBytes, loadBytes, loadFont, loadImage, loadImage, loadJSONArray, loadJSONArray, loadJSONObject, loadJSONObject, loadPixels, loadShader, loadShader, loadShape, loadShape, loadStrings, loadStrings, loadStrings, loadStrings, loadTable, loadTable, loadXML, loadXML, log, loop, mag, mag, main, main, main, makeGraphics, map, mask, match, matchAll, max, max, max, max, max, max, method, millis, min, min, min, min, min, min, minute, modelX, modelY, modelZ, month, mouseClicked, mouseDragged, mouseEntered, mouseEntered, mouseExited, mouseExited, mouseMoved, mouseMoved, mousePressed, mouseReleased, mouseWheel, mouseWheel, nf, nf, nf, nf, nf, nf, nfc, nfc, nfc, nfc, nfp, nfp, nfp, nfp, nfs, nfs, nfs, nfs, noClip, noCursor, noFill, noise, noise, noise, noiseDetail, noiseDetail, noiseSeed, noLights, noLoop, norm, normal, noSmooth, noStroke, noTexture, noTint, orientation, ortho, ortho, ortho, parseBoolean, parseBoolean, parseBoolean, parseBoolean, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseChar, parseChar, parseChar, parseChar, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseJSONArray, parseJSONObject, parseXML, parseXML, pause, perspective, perspective, pixelDensity, point, point, pointLight, pop, popMatrix, popStyle, postEvent, postWindowMoved, postWindowResized, pow, print, print, print, print, print, print, print, print, print, printArray, printCamera, println, println, println, println, println, println, println, println, println, println, println, printMatrix, printProjection, printStackTrace, push, pushMatrix, pushStyle, quad, quadraticVertex, quadraticVertex, radians, random, random, randomGaussian, randomSeed, rect, rect, rect, rectMode, red, redraw, registerMethod, requestImage, requestImage, resetMatrix, resetShader, resetShader, resume, reverse, reverse, reverse, reverse, reverse, reverse, reverse, rotate, rotate, rotateX, rotateY, rotateZ, round, runSketch, runSketch, runSketch, saturation, save, saveBytes, saveBytes, saveBytes, saveFile, saveFrame, saveFrame, saveJSONArray, saveJSONArray, saveJSONObject, saveJSONObject, savePath, saveStream, saveStream, saveStream, saveStream, saveStream, saveStrings, saveStrings, saveStrings, saveTable, saveTable, saveXML, saveXML, scale, scale, scale, screenX, screenX, screenY, screenY, screenZ, second, selectCallback, selectFolder, selectFolder, selectFolder, selectInput, selectInput, selectInput, selectOutput, selectOutput, selectOutput, set, set, setMatrix, setMatrix, setMatrix, setSize, shader, shader, shape, shape, shape, shapeMode, shearX, shearY, shell, shininess, shorten, shorten, shorten, shorten, shorten, shorten, shorten, showDepthWarning, showDepthWarningXYZ, showMethodWarning, showMissingWarning, showSurface, showVariationWarning, sin, size, size, size, sketchDisplay, sketchFile, sketchFullScreen, sketchHeight, sketchOutputPath, sketchOutputStream, sketchPath, sketchPath, sketchPixelDensity, sketchRenderer, sketchSmooth, sketchWidth, sketchWindowColor, smooth, smooth, sort, sort, sort, sort, sort, sort, sort, sort, sort, sort, specular, specular, specular, sphere, sphereDetail, sphereDetail, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, split, split, splitTokens, splitTokens, spotLight, sq, sqrt, square, start, startSurface, str, str, str, str, str, str, str, str, str, str, stroke, stroke, stroke, stroke, stroke, stroke, strokeCap, strokeJoin, strokeWeight, style, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, tan, text, text, text, text, text, text, text, text, text, text, text, textAlign, textAlign, textAscent, textDescent, textFont, textFont, textLeading, textMode, textSize, texture, textureMode, textureWrap, textWidth, textWidth, textWidth, thread, tint, tint, tint, tint, tint, tint, translate, translate, triangle, trim, trim, unbinary, unhex, unregisterMethod, updatePixels, updatePixels, urlDecode, urlEncode, vertex, vertex, vertex, vertex, vertex, windowMove, windowMoved, windowRatio, windowResizable, windowResize, windowResized, windowTitle, year

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Details
- pixelaudio

  PixelAudio pixelaudio
- multigen

  MultiGen multigen
- genWidth

  int genWidth
- genHeight

  int genHeight
- mapper

  PixelAudioMapper mapper
- mapSize

  int mapSize
- baseImage

  processing.core.PImage baseImage
- mapImage

  processing.core.PImage mapImage
- chan

  PixelAudioMapper.ChannelNames chan
- spectrum

  int[] spectrum
- audioFile

  File audioFile
- audioFilePath

  String audioFilePath
- audioFileName

  String audioFileName
- audioFileTag

  String audioFileTag
- audioFileLength

  int audioFileLength
- imageFile

  File imageFile
- imageFilePath

  String imageFilePath
- imageFileName

  String imageFileName
- imageFileTag

  String imageFileTag
- imageFileWidth

  int imageFileWidth
- imageFileHeight

  int imageFileHeight
- minim

  ddf.minim.Minim minim

  Minim audio library
- audioOut

  ddf.minim.AudioOutput audioOut
- audioGain

  float audioGain
- sampleRate

  float sampleRate
- fileSampleRate

  float fileSampleRate
- bufferSampleRate

  float bufferSampleRate
- doResample

  boolean doResample
- audioSignal

  float[] audioSignal
- playBuffer

  ddf.minim.MultiChannelBuffer playBuffer
- audioLength

  int audioLength
- noteDuration

  int noteDuration
- synth

  PASamplerInstrument synth
- samplerGain

  float samplerGain
- defaultEnv

  ADSRParams defaultEnv
- maxAmplitude

  float maxAmplitude
- attackTime

  float attackTime
- decayTime

  float decayTime
- sustainLevel

  float sustainLevel
- releaseTime

  float releaseTime
- adsrList

  ArrayList<ADSRParams> adsrList
- isRandomADSR

  boolean isRandomADSR
- pitchScaling

  float pitchScaling
- defaultPitchScaling

  float defaultPitchScaling
- lowPitchScaling

  float lowPitchScaling
- highPitchScaling

  float highPitchScaling
- timeLocsArray

  ArrayList<TimedLocation> timeLocsArray
- count

  int count
- fileIndex

  int fileIndex
- shift

  int shift
- shiftInc

  int shiftInc
- totalShift

  int totalShift
- isAnimating

  boolean isAnimating
- oldIsAnimating

  boolean oldIsAnimating
- animSteps

  int animSteps
- isRecordingVideo

  boolean isRecordingVideo
- videoFrameRate

  int videoFrameRate
- step

  int step
- videx

  com.hamoid.VideoExport videx
- isRaining

  boolean isRaining
- isShowOverlay

  boolean isShowOverlay
- isPlayMusicBox

  boolean isPlayMusicBox
Constructor Details
- TutorialOne_02_Animation

  public TutorialOne_02_Animation()
Method Details
- main

  public static void main(String[] args)
- settings

  public void settings()

  Overrides:

  settings in class processing.core.PApplet
- setup

  public void setup()

  Overrides:

  setup in class processing.core.PApplet
- stop

  public void stop()

  turn off audio processing when we exit

  Overrides:

  stop in class processing.core.PApplet
- getColors

  public int[] getColors(int size)

  Generates an array of rainbow colors using the HSB color space.

  Parameters:

  size - the number of entries in the colors array

  Returns:

  an array of RGB colors ordered by hue
- initImages

  public void initImages()

  Initializes mapImage with the colors array, copies mapImage to baseImage. MapImage handles the color data for mapper and also serves as our display image. BaseImage is intended as a reference image that typically only changes when you load a new image.
- draw

  public void draw()

  Overrides:

  draw in class processing.core.PApplet
- animate

  public void animate()
- stepAnimation

  public void stepAnimation()

  Step through the animation, called by the draw() method. Will also record a frame of video, if we're recording.
- renderFrame

  public void renderFrame(int step, boolean isInverseShift)

  Renders a frame of animation: moving along the signal path, copies baseImage pixels to mapImage pixels, adjusting the index position of the copy using totalShift i.e. we don't actually rotate the pixels, we just shift the position they're copied to

  Parameters:

  isInverseShift - boolean, if true shift is negative
- renderFrame

  public void renderFrame(int step)
- doRain

  public void doRain()

  drop some random audio events, like unto the gentle rain
- writeToScreen

  public void writeToScreen(String msg, int x, int y, int weight, boolean isWhite)

  Displays a line of text to the screen, usually in the draw loop. Handy for debugging. typical call: writeToScreen("When does the mind stop and the world begin?", 64, 1000, 24, true);

  Parameters:

  msg - message to write

  x - x coordinate

  y - y coordinate

  weight - font weight

  isWhite - if true, white text, otherwise, black text
- mousePressed

  public void mousePressed()

  The built-in mousePressed handler for Processing, not used yet...

  Overrides:

  mousePressed in class processing.core.PApplet
- mouseClicked

  public void mouseClicked()

  Overrides:

  mouseClicked in class processing.core.PApplet
- mouseDragged

  public void mouseDragged()

  Overrides:

  mouseDragged in class processing.core.PApplet
- mouseReleased

  public void mouseReleased()

  Overrides:

  mouseReleased in class processing.core.PApplet
- keyPressed

  public void keyPressed()

  built-in keyPressed handler, forwards events to parseKey.

  Overrides:

  keyPressed in class processing.core.PApplet
- parseKey

  public void parseKey(char key, int keyCode)

  Handles key press events passed on by the built-in keyPressed method. By moving key event handling outside the built-in keyPressed method, we make it possible to post key commands without an actual key event. Methods and interfaces and even other threads can call parseKey(). This opens up many possibilities and a some dangers, too.

  Parameters:

  key -

  keyCode -
- showHelp

  public void showHelp()

  to generate help output, run RegEx search/replace on parseKey case lines with: // case ('.'): // (.+) // println(" * Press $1 to $2.");
- applyColor

  public int[] applyColor(int[] colorSource, int[] graySource, int[] lut)

  Utility method for applying hue and saturation values from a source array of RGB values to the brightness values in a target array of RGB values, using a lookup table to redirect indexing.

  Parameters:

  colorSource - a source array of RGB data from which to obtain hue and saturation values

  graySource - an target array of RGB data from which to obtain brightness values

  lut - a lookup table, must be the same size as colorSource and graySource

  Returns:

  the graySource array of RGB values, with hue and saturation values changed

  Throws:

  IllegalArgumentException - if array arguments are null or if they are not the same length
- applyColorShifted

  public int[] applyColorShifted(int[] colorSource, int[] graySource, int[] lut, int pixelShift)

  Utility method for applying hue and saturation values from a source array of RGB values to the brightness values in a target array of RGB values, using a lookup table to redirect indexing.

  Parameters:

  colorSource - a source array of RGB data from which to obtain hue and saturation values

  graySource - an target array of RGB data from which to obtain brightness values

  lut - a lookup table, must be the same size as colorSource and graySource

  pixelShift - total amount of pixel shifting in the image

  Returns:

  the graySource array of RGB values, with hue and saturation values changed

  Throws:

  IllegalArgumentException - if array arguments are null or if they are not the same length
- applyColorMapToDisplay

  public void applyColorMapToDisplay(boolean updateBaseImage)

  Apply color map hue and saturation to mapImage or baseImage.

  Parameters:

  updateBaseImage - if true, update baseImage, otherwise just update mapImage
- chooseColorImage

  public void chooseColorImage()

  Call to initiate process of opening an image file to get its color data.
- chooseColorImageAndStore

  public void chooseColorImageAndStore()
- colorFileSelected

  public void colorFileSelected(File selectedFile)

  callback method for chooseColorImage()

  Parameters:

  selectedFile - the File the user selected
- colorFileSelectedToStore

  public void colorFileSelectedToStore(File selectedFile)
- applyImageColor

  public void applyImageColor(File imgFile, processing.core.PImage targetImage)

  Apply the hue and saturation of a chosen image file to the brightness channel of the display image.

  Parameters:

  imgFile - selected image file, source of hue and saturation values

  targetImage - target image where brightness will remain unchanged
- chooseFile

  public void chooseFile()

  Wrapper method for Processing's selectInput command
- fileSelected

  public void fileSelected(File selectedFile)

  callback method for chooseFile(), handles standard audio and image formats for Processing. If a file has been successfully selected, continues with a call to loadAudioFile() or loadImageFile().

  Parameters:

  selectedFile - the File the user selected
- loadAudioFile

  public void loadAudioFile(File audFile)

  Attempts to load audio data from a selected file into playBuffer, then calls writeAudioToImage() to transcode audio data and write it to mapImage If doResample is true, resamples files whose sample rate differs from the current audio output.

  Parameters:

  audFile - an audio file
- renderAudioToMapImage

  public void renderAudioToMapImage(PixelAudioMapper.ChannelNames chan, int shift)

  Render audio into mapImage at an arbitrary phase offset. In simple examples, shift will usually be 0. In later examples or in your own code, shifted renders may be layered, blended, or used as temporary performance/display operations without committing them to baseImage.
- writeAudioToImage

  public void writeAudioToImage(float[] sig, PixelAudioMapper mapper, processing.core.PImage img, PixelAudioMapper.ChannelNames chan, int shift)

  Transcodes audio data in sig[] and writes it to color channel chan of img using the lookup tables in mapper to redirect indexing. Calls mapper.mapSigToImgShifted(), which will throw an IllegalArgumentException if sig.length != img.pixels.length or sig.length != mapper.getSize().

  Parameters:

  sig - an array of float, should be audio data in the range [-1.0, 1.0]

  mapper - a PixelAudioMapper

  img - a PImage

  chan - a color channel

  shift - the number of indices to shift when writing audio
- loadImageFile

  public void loadImageFile(File imgFile)

  Attempts to load image data from a selected file into mapImage, then calls writeImageToAudio() to transcode HSB brightness color data from the image to audio and writes it to playBuffer and audioSignal.

  Parameters:

  imgFile - an image file
- writeImageToAudio

  public void writeImageToAudio(processing.core.PImage img, PixelAudioMapper mapper, float[] sig, PixelAudioMapper.ChannelNames chan, int shift)

  This method writes a color channel from an image to playBuffer, fulfilling a central concept of the PixelAudio library: image is sound. Calls mapper.mapImgToSig(), which will throw an IllegalArgumentException if img.pixels.length != sig.length or img.width * img.height != mapper.getWidth() * mapper.getHeight(). Sets totalShift = 0 on completion: the image and audio are now in sync. TODO

  Parameters:

  img - a PImage, a source of data

  mapper - a PixelAudioMapper, handles mapping between image and audio signal

  sig - an target array of float in audio format

  chan - a color channel

  shift - number of indices to shift
- renderMapImageToAudio

  public void renderMapImageToAudio(PixelAudioMapper.ChannelNames chan)

  Writes a specified channel of mapImage to audioSignal.

  Parameters:

  chan - the selected color channel
- commitMapImageToAudio

  public void commitMapImageToAudio()
- commitMapImageToBaseImage

  public void commitMapImageToBaseImage()

  Writes the mapImage, which may change with animation, to the baseImage, a reference image that usually only changes when a new file is loaded.
- commitNewBaseImage

  public void commitNewBaseImage(processing.core.PImage img)

  Copies the supplied PImage to mapImage and baseImage, sets totalShift to 0 (the images are identical).

  Parameters:

  img -
- refreshMapImageFromBase

  public void refreshMapImageFromBase()

  Writes baseImage to mapImage with an index position offset of totalShift.
- saveToAudio

  public void saveToAudio()
- audioFileSelectedWrite

  public void audioFileSelectedWrite(File selection)
- saveAudioToFile

  public void saveAudioToFile(float[] samples, float sampleRate, String fileName) throws IOException, UnsupportedAudioFileException

  Saves audio data to 16-bit integer PCM format, which Processing can also open. This same method can be called as a static method in PixelAudio.

  Parameters:

  samples - an array of floats in the audio range (-1.0f, 1.0f)

  sampleRate - audio sample rate for the file

  fileName - name of the file to save to

  Throws:

  IOException - an Exception you'll need to handle to call this method

  UnsupportedAudioFileException - another Exception
- saveToImage

  public void saveToImage()
- imageFileSelectedWrite

  public void imageFileSelectedWrite(File selection)
- saveImageToFile

  public void saveImageToFile(processing.core.PImage img, String fileName)
- initAudio

  public void initAudio()

  CALL THIS METHOD IN SETUP() Initializes Minim audio library and audio variables.
- ensureSamplerReady

  void ensureSamplerReady()

  Prepares Sampler instruments and assets
- initADSRList

  public void initADSRList()
- audioMouseClick

  public void audioMouseClick(int x, int y)

  Typically called from mousePressed with mouseX and mouseY, generates audio events.

  Parameters:

  x - x-coordinate within a PixelAudioMapper's width

  y - y-coordinate within a PixelAudioMapper's height
- clipToWidth

  public int clipToWidth(int x)

  Parameters:

  x - a value to constrain to the current window width

  Returns:

  the constrained value
- clipToHeight

  public int clipToHeight(int y)

  Parameters:

  y - a value to constrain to the current window height

  Returns:

  the constrained value
- getSamplePos

  public int getSamplePos(int x, int y)

  Calculates the index of the image pixel within the signal path, taking the shifting of pixels and audioSignal into account. See the MusicWindowBox sketch for use of a windowed buffer in this calculation.

  Parameters:

  x - an x coordinate within mapImage and display bounds

  y - a y coordinate within mapImage and display bounds

  Returns:

  the index of the sample corresponding to (x,y) on the signal path
- playSample

  public int playSample(int samplePos, int samplelen, float amplitude, ADSRParams env, float pan)

  Plays an audio sample with PASamplerInstrument and custom ADSR.

  Parameters:

  samplePos - position of the sample in the audio buffer

  samplelen - length of the sample (will be adjusted)

  amplitude - amplitude of the sample on playback

  env - an ADSRParams envelope for the sample

  Returns:

  the calculated sample length in samples
- playSample

  public int playSample(int samplePos, int samplelen, float amplitude, float pan)

  Plays an audio sample with PASamplerInstrument and default ADSR.

  Parameters:

  samplePos - position of the sample in the audio buffer

  samplelen - length of the sample (will be adjusted)

  amplitude - amplitude of the sample on playback

  Returns:

  the calculated sample length in samples
- calcSampleLen

  public int calcSampleLen()
- updateAudioChain

  void updateAudioChain(float[] sig, float bufferSampleRate)

  Bottleneck "commit" method for audio state. Takes an arbitrary input signal and installs it as the canonical audio signal used by the application. This method: - Resizes/pads/truncates the input to mapper.getSize() - Copies the data to ensure no external aliasing - Updates audioSignal (canonical signal handled by application code) - Updates playBuffer (audio buffer used by Minim audio library methods) - Propagates the buffer to active instruments: edit for your own instruments This is the ONLY method that should mutate the global audio signal state. In PixelAudio examples, the signal is typically loaded from a file, but it could also be signal cached in memory, a signal generated by code, audio captured live, etc.

  Parameters:

  sig - an audio signal

  bufferSampleRate - audio sample rate for sig, usually obtained when reading an audio file
- updateAudioChain

  void updateAudioChain(float[] sig)
- runTimeArray

  public void runTimeArray()

  Run the animation for audio events.
- drawCircle

  public void drawCircle(int x, int y)

  Draws a circle at the location of an audio trigger (mouseDown event).

  Parameters:

  x - x coordinate of circle

  y - y coordinate of circle

Class TutorialOne_02_Animation

QUICK START

Field Summary

Fields inherited from class processing.core.PApplet

Fields inherited from interface processing.core.PConstants

Constructor Summary

Method Summary

Methods inherited from class processing.core.PApplet

Methods inherited from class java.lang.Object

Field Details

pixelaudio

multigen

genWidth

genHeight

mapper

mapSize

baseImage

mapImage

chan

spectrum

audioFile

audioFilePath

audioFileName

audioFileTag

audioFileLength

imageFile

imageFilePath

imageFileName

imageFileTag

imageFileWidth

imageFileHeight

minim

audioOut

audioGain

sampleRate

fileSampleRate

bufferSampleRate

doResample

audioSignal

playBuffer

audioLength

noteDuration

synth

samplerGain

defaultEnv

maxAmplitude

attackTime

decayTime

sustainLevel

releaseTime

adsrList

isRandomADSR

pitchScaling

defaultPitchScaling

lowPitchScaling

highPitchScaling

timeLocsArray

count

fileIndex

shift

shiftInc

totalShift

isAnimating

oldIsAnimating

animSteps

isRecordingVideo

videoFrameRate

step

videx

isRaining

isShowOverlay

isPlayMusicBox

Constructor Details

TutorialOne_02_Animation

Method Details

main

settings

setup

stop

getColors
