processing.core.PApplet

net.paulhertz.pixelaudio.example.WaveSynthEditor

All Implemented Interfaces:: processing.core.PConstants

public class WaveSynthEditor extends processing.core.PApplet

Additive audio synthesis engine produces colorful animated patterns and electronic synth sounds.

WaveSynth Editor Sketch

The PixelAudio demo application WaveSynthEditor makes hypnotic animated patterns that can be saved to video or played as an additive synthesis audio source. It provides an introduction to the WaveSynth class and the WaveData objects that WaveSynths use to generate visual patterns and audio signals.

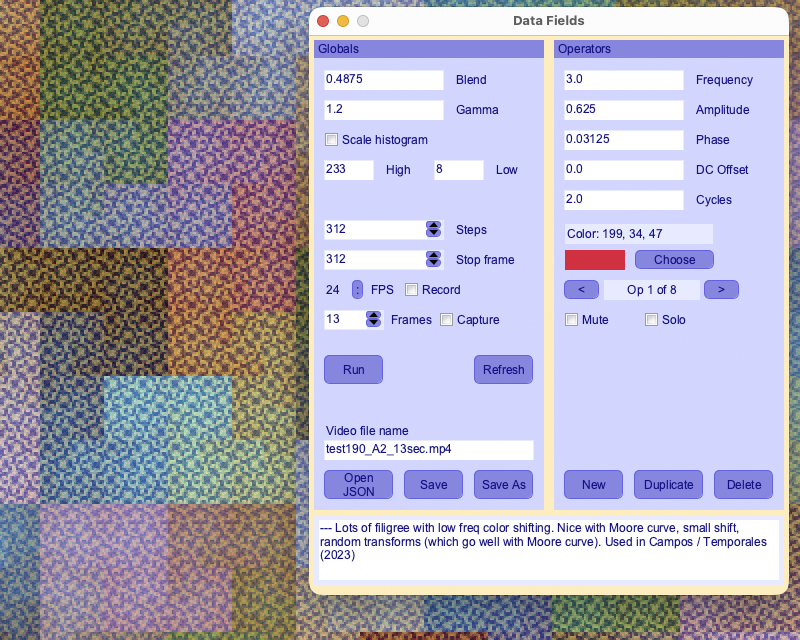

This application lets you edit a PixelAudio WaveSynth, including its individual WaveData operators, using a nice GUI made with g4p_controls for Processing. This sketch shows some of what you can do with the HilbertGen, BoustropheGen and DiagonalZigzzgGen for making patterns with the WaveSynth. There are lots of other possibilities. Patterns can be loaded from and saved to JSON files.

For audio signals, a WaveSynth behaves like an audio synthesizer that adds together sine waves at different frequencies. The BigWaveSynthAudio and WaveSynthSequencer example sketches also produce audio with a WaveSynth. This example provides a graphical user interface for editing frequencies, colors and other properties of a WaveSynth.

Click on the WaveSynth image or press spacebar to hear the audio version of the image. Note that the appearance of the image is determined by the current sampling frequency, set in the initWaveSynth() method. For a higher sampling rate, there are more samples. One sampling rate I commonly use for the WaveSynth Editor is the number of pixels in the WaveSynth image, 1024 * 1024 = 1048576. Though it may have more or less samples, the sound of the audio will not vary, as its frequency is governed by the sampling rate. If you want to save the audio to a file, you should probably set a standard sampling rate like 48000 in the initWaveSynth() method.

A WaveSynth depends on global attributes, such as gain (i.e. loudness or brightness) and gamma (a sort of contrast setting), and on data objects. The data objects include a bitmap, mapImage, that is a Processing PImage instance for the image representation of the WaveSynth, a PixelAudioMapper that allows the WaveSynth to mediate between audio data and image data, and an array of WaveData objects that define the individual sine wave components of the WaveSynth. The PixelAudioMapper arranges colors controlled by the WaveSynth audio functions along the PixelAudioMapper signal path. The WaveData objects control individual "operators" (sine waves) that combine to make the image.

NOTE: Changes to data fields in the Control Panel may not be applied immediately to the WaveSynth image and audio. Click the Refresh button or hit return to force an update. Stepping to the next or previous operator will also refresh audio and image. If the display window is active, stepping to another frame 'y', 'u', or 'e' key commands) will also force an update.

When a WaveSynth is used to produce color patterns, each WaveData object in the waveDataList controls a color. The colors of the various WaveData objects are added together. The amplitude of the controlling sine wave controls the brightness of each color. The control panel in this example allows you to isolate individual WaveData operators to see how they affect the color patterns.

SAMPLING RATES FOR AUDIO AND FOR WAVESYNTH IMAGES

We use different sampling rates for audio playback and recording and for WaveSynth's additive synthesis algorithm. We use the standard sampling rate 48000 Hz for audio output. A 48000 Hz sampling rate fits conveniently with Hilbert curve dimensions. For the WaveSynth, which in this demo app relies on Hilbert curves to make patterns, we use (genWidth * genWidth) as the sampling rate for the sine waves that are added together to produce the WaveSynth image. If genWidth = 512, this value is 262144. You can change the audio sampling rate in the instance variables list or in setup(). You can change WaveSynth's sampling rate in the initWaveSynth() method.

In addition to the GUI commands, there are some useful key commands.

--------------------------------------------------------------------------------------------- ***]] NOTE: Key commands only work when the image display window is the front window. [[*** ---------------------------------------------------------------------------------------------

Key commands will NOT work when the control panel is the active window. Click on the display window to make it the active window and then try the commands. See the parseKey() method and the methods it calls for more information about key commands.

The quickest way to record a video, from frame 0 to the stop frame value in the control panel, is to press the 'V' (capital 'v') key.

The code in this example is extensively annotated. We the author heartily recommend you read the notes for the various methods.

::: KEY COMMANDS ONLY WORK WHEN DISPLAY WINDOW IS ACTIVE :::

Press the UP arrow to increase audio output gain by 3.0 dB.
Press the DOWN arrow to decrease audio output gain by 3.0 dB.
Press ' ' (spacebar) to trigger audio playback at the current mouse position.
Press TAB to turn animation on or off.
Press 'a' to scale all active WaveSynth amplitudes by ampFac.
Press 'A' to scale all active WaveSynth amplitudes by 1/ampFac.
Press 'c' to shift all active WaveSynth colors by colorShift * 360 degrees in the HSB color space.
Press 'C' to shift all active WaveSynth colors by -colorShift * 360 degrees in the HSB color space.
Press 'd' to print animation data to the console.
Press 'D' to print WaveSynth data to the console.
Press 'f' to scale all active WaveSynth frequencies by freqFac.
Press 'F' to scale all active WaveSynth frequencies by 1/freqFac.
Press 'p' to shift all active WaveSynth phases by phaseFac.
Press 'P' to shift all active WaveSynth phases by -phaseFac.
Press 'k' to show all current phase values in the console.
Press 'K' to set all phase values so that first frame looks like the current frame, then go to first frame.
Press '+' or '=' to make the image brighter.
Press '-' or '_' to make the image darker.
// ------------- COMMANDS FOR ANIMATION STEPPING ------------- //
Press 'e' to fast forward animation 1/8 of total steps.
Press 'E' to rewind animation 1/8 of total steps (loops back from end, if required).
Press 'i' to reset current animation step to initial value, 0.
Press 'u' to advance animation by 1 step.
Press 'U' to advance animation by 10 steps.
Press 'y' to rewind animation by 1 step.
Press 'Y' to rewind animation by 10 steps.
Press 'l' or 'L' to toggle animation looping on or off.
// ------------- MUTING COMMANDS ------------- //
press keys 1-8 to mute or unmute first eight wave data operators
press 'm' to print current WaveData muting states to console.
press 'M' to unmute all current WaveData operators.
// ------------- JSON COMMANDS ------------- //
press 'j' or 'J' to save WaveSynth settings to a JSON file.
press 'o' to open a new JSON file.
press 'O' to reload the current JSON file, if there is one, reverting all edits.
// ------------- MISCELLANEOUS COMMANDS ------------- //
Press 'r' to toggles display window to fit screen or display at size.
Press 's' to save the current image to a .png file.
Press 'S' to save audio from WaveSynth.
Press 'v' to toggle video recording.
Press 'V' to record a complete video loop from frame 0 to stop frame.
Press 't' to sort wave data operators in control panel by frequency (lowest first), useful when saving to JSON.
Press 'z' to find nearest zero crossing in the audio signal and play from there.
Press 'q' to show animation status on screen (will not be recorded).
Press '?' to print window dimensions, video frame rate, and audio settings to the console.
press 'h' or 'H' to show this help message in the console.

::: KEY COMMANDS ONLY WORK WHEN DISPLAY WINDOW IS ACTIVE :::

Nested Class Summary

Nested Classes

Modifier and Type

Class

Description

class

WaveSynthEditor.CompareWaveData

Comparator class for sorting waveDataList by frequency or phase
Field Summary

Fields

Modifier and Type

Field

Description

(package private) g4p_controls.GLabel

amp_label

(package private) float

ampFac

Sets how much to scale amplitudes with scaleAmps()

(package private) g4p_controls.GTextField

ampField

(package private) int

animSteps

(package private) int

animStop

(package private) float

attackTime

(package private) ddf.minim.MultiChannelBuffer

audioBuffer

(package private) boolean

audioDirty

(package private) int

audioLength

(package private) ddf.minim.AudioOutput

audioOut

(package private) float[]

audioSignal

(package private) BoustropheGen

bGenHz

(package private) BoustropheGen

bGenVt

(package private) int

bgFillColor

(package private) g4p_controls.GLabel

blend_label

(package private) g4p_controls.GTextField

blendField

(package private) g4p_controls.GButton

btnColor

(package private) g4p_controls.GLabel

cap_label

(package private) g4p_controls.GCheckbox

capCheck

(package private) g4p_controls.GSpinner

capSpinner

(package private) processing.core.PGraphics

colorPG

(package private) float

colorShift

Sets how much to shift colors with shiftColors() 1.0f/24 is 15 degrees around the 360-degree HSB color circle, expressed as a fraction in the range (0..1).

(package private) g4p_controls.GLabel

colorTitle

(package private) g4p_controls.GView

colorView

(package private) String

comments

(package private) g4p_controls.GTextArea

commentsField

(package private) g4p_controls.GWindow

controlWindow

(package private) int

count

(package private) File

currentDataFile

(package private) String

currentFileName

(package private) WaveData

currentWD

(package private) g4p_controls.GLabel

cycles_label

(package private) g4p_controls.GTextField

cyclesField

(package private) String

dataPath

(package private) g4p_controls.GLabel

dc_label

(package private) g4p_controls.GTextField

dcField

(package private) float

decayTime

(package private) g4p_controls.GButton

delWaveBtn

(package private) int

designHeight

(package private) int

designWidth

(package private) g4p_controls.GButton

dupWaveBtn

(package private) g4p_controls.GLabel

fps_label

(package private) g4p_controls.GDropList

fpsMenu

(package private) g4p_controls.GLabel

freq_label

(package private) float

freqFac

Sets how much to scale frequencies with scaleFreqs() tritone (half octave): (Math.sqrt(2.0)); semitone: (Math.pow(2.0, 1.0/12));

(package private) g4p_controls.GTextField

freqField

(package private) float

gainInc

Sets the increment to apply to wavesynth gain (brightness)

(package private) g4p_controls.GLabel

gamma_label

(package private) g4p_controls.GTextField

gammaField

(package private) PixelMapGen

gen

(package private) int

genHeight

(package private) int

genWidth

(package private) g4p_controls.GPanel

globalPanel

(package private) HilbertGen

hGen

(package private) g4p_controls.GCheckbox

histoCheck

(package private) g4p_controls.GLabel

histoHigh_label

(package private) g4p_controls.GTextField

histoHighField

(package private) g4p_controls.GLabel

histoLow_label

(package private) g4p_controls.GTextField

histoLowField

(package private) boolean

imageDirty

(package private) boolean

isAnimating

(package private) boolean

isCaptureFrames

(package private) boolean

isDesignMode

Set designMode true to use designWidth and designHeight for display width and height.

(package private) boolean

isFindZeroCrossing

(package private) boolean

isFitToScreen

(package private) boolean

isLooping

(package private) boolean

isOversize

(package private) boolean

isRecordingVideo

(package private) boolean

isSecondScreen

(package private) boolean

isVerbose

(package private) processing.data.JSONObject

json

(package private) String

jsonFile

(package private) String

jsonFolder

(package private) processing.core.PImage

mapImage

(package private) PixelAudioMapper

mapper

(package private) int

mapSize

(package private) float

maxAmplitude

(package private) int

maxWindowHeight

(package private) int

maxWindowWidth

(package private) MultiGen

mGen

(package private) ddf.minim.Minim

minim

Minim audio library

(package private) g4p_controls.GCheckbox

muteWave

(package private) g4p_controls.GButton

newWaveBtn

(package private) g4p_controls.GButton

nextBtn

(package private) g4p_controls.GLabel

noise_label

(package private) g4p_controls.GTextField

noiseField

(package private) int

noteDuration

(package private) processing.core.PGraphics

offscreen

(package private) boolean

oldIsAnimating

(package private) g4p_controls.GButton

openBtn

(package private) float

outputGain

(package private) final ConcurrentLinkedQueue<Runnable>

pendingWaveEdits

Storage for deferred edits to draw() loop.

(package private) g4p_controls.GLabel

phase_label

(package private) g4p_controls.GTextField

phaseField

(package private) float

phaseShift

Sets how much to shift phase with shiftPhases()

(package private) PixelAudio

pixelaudio

(package private) PASamplerInstrumentPool

pool

(package private) int

poolSize

(package private) g4p_controls.GButton

prevBtn

(package private) g4p_controls.GCheckbox

recordCheck

(package private) g4p_controls.GButton

refreshBtn

(package private) float

releaseTime

(package private) int

renderHeight

(package private) int

renderWidth

(package private) int[]

rgbSignal

(package private) g4p_controls.GButton

runVideoBtn

(package private) int

samplelen

(package private) int

samplePos

(package private) float

sampleRate

(package private) ADSRParams

samplerEnv

(package private) float

samplerGain

(package private) int

samplerMaxVoices

(package private) int

sampleX

(package private) int

sampleY

(package private) g4p_controls.GButton

saveAsBtn

(package private) g4p_controls.GButton

saveBtn

(package private) int

scaledWindowHeight

(package private) int

scaledWindowWidth

(package private) int

screen2x

(package private) int

screen2y

(package private) String

screenMsg

(package private) int

sel_col

(package private) boolean

showAnimationStatus

(package private) int

snapCount

(package private) g4p_controls.GCheckbox

soloWave

(package private) int

startTime

(package private) int

step

(package private) g4p_controls.GLabel

steps_label

(package private) g4p_controls.GSpinner

stepsSpinner

(package private) g4p_controls.GLabel

stop_label

(package private) g4p_controls.GSpinner

stopSpinner

(package private) int

stopTime

(package private) float

sustainLevel

(package private) ArrayList<TimedLocation>

timeLocsArray

(package private) String

videoFilename

(package private) int

videoFrameRate

(package private) g4p_controls.GLabel

videoName_label

(package private) g4p_controls.GTextField

videoNameField

(package private) String

videoPath

(package private) com.hamoid.VideoExport

videx

(package private) int

waveDataIndex

(package private) g4p_controls.GLabel

waveDataLabel

(package private) g4p_controls.GPanel

waveDataPanel

(package private) WaveSynth

wavesynth

(package private) ArrayList<WaveData>

wdList

(package private) float

windowScale

(package private) ArrayList<WaveSynth>

wsCrew

(package private) int

wsIndex

(package private) DiagonalZigzagGen

zGen

Fields inherited from class processing.core.PApplet
args, ARGS_BGCOLOR, ARGS_DISABLE_AWT, ARGS_DISPLAY, ARGS_EDITOR_LOCATION, ARGS_EXTERNAL, ARGS_FULL_SCREEN, ARGS_HIDE_STOP, ARGS_LOCATION, ARGS_PRESENT, ARGS_SKETCH_FOLDER, ARGS_STOP_COLOR, ARGS_UI_SCALE, ARGS_WINDOW_COLOR, DEFAULT_HEIGHT, DEFAULT_WIDTH, disableAWT, displayHeight, displayWidth, dmouseX, dmouseY, emouseX, emouseY, exitCalled, EXTERNAL_MOVE, EXTERNAL_STOP, finished, firstMouse, focused, frameCount, frameRate, frameRateLastNanos, g, height, insideDraw, javaPlatform, javaVersion, javaVersionName, key, keyCode, keyEvent, keyPressed, keyRepeatEnabled, looping, matchPatterns, mouseButton, mouseEvent, mousePressed, mouseX, mouseY, pixelDensity, pixelHeight, pixels, pixelWidth, platform, pmouseX, pmouseY, ratioLeft, ratioScale, ratioTop, recorder, redraw, rheight, rmouseX, rmouseY, rwidth, surface, useNativeSelect, width, windowX, windowY

Fields inherited from interface processing.core.PConstants
ADD, ALPHA, ALT, AMBIENT, ARC, ARGB, ARROW, BACKSPACE, BASELINE, BEVEL, BEZIER_VERTEX, BLEND, BLUR, BOTTOM, BOX, BREAK, BURN, CENTER, CHATTER, CHORD, CLAMP, CLOSE, CODED, COMPLAINT, CONTROL, CORNER, CORNERS, CROSS, CURVE_VERTEX, CUSTOM, DARKEST, DEG_TO_RAD, DELETE, DIAMETER, DIFFERENCE, DILATE, DIRECTIONAL, DISABLE_ASYNC_SAVEFRAME, DISABLE_BUFFER_READING, DISABLE_DEPTH_MASK, DISABLE_DEPTH_SORT, DISABLE_DEPTH_TEST, DISABLE_KEY_REPEAT, DISABLE_NATIVE_FONTS, DISABLE_OPENGL_ERRORS, DISABLE_OPTIMIZED_STROKE, DISABLE_STROKE_PERSPECTIVE, DISABLE_STROKE_PURE, DISABLE_TEXTURE_MIPMAPS, DODGE, DOWN, DXF, ELLIPSE, ENABLE_ASYNC_SAVEFRAME, ENABLE_BUFFER_READING, ENABLE_DEPTH_MASK, ENABLE_DEPTH_SORT, ENABLE_DEPTH_TEST, ENABLE_KEY_REPEAT, ENABLE_NATIVE_FONTS, ENABLE_OPENGL_ERRORS, ENABLE_OPTIMIZED_STROKE, ENABLE_STROKE_PERSPECTIVE, ENABLE_STROKE_PURE, ENABLE_TEXTURE_MIPMAPS, ENTER, EPSILON, ERODE, ESC, EXCLUSION, FX2D, GIF, GRAY, GROUP, HALF_PI, HAND, HARD_LIGHT, HINT_COUNT, HSB, IMAGE, INVERT, JAVA2D, JPEG, LANDSCAPE, LEFT, LIGHTEST, LINE, LINE_LOOP, LINE_STRIP, LINES, LINUX, MACOS, MACOSX, MAX_FLOAT, MAX_INT, MIN_FLOAT, MIN_INT, MITER, MODEL, MODELVIEW, MOVE, MULTIPLY, NORMAL, OPAQUE, OPEN, OPENGL, ORTHOGRAPHIC, OTHER, OVERLAY, P2D, P3D, PATH, PDF, PERSPECTIVE, PI, PIE, platformNames, POINT, POINTS, POLYGON, PORTRAIT, POSTERIZE, PROBLEM, PROJECT, PROJECTION, QUAD, QUAD_BEZIER_VERTEX, QUAD_STRIP, QUADRATIC_VERTEX, QUADS, QUARTER_PI, RAD_TO_DEG, RADIUS, RECT, REPEAT, REPLACE, RETURN, RGB, RIGHT, ROUND, SCREEN, SHAPE, SHIFT, SOFT_LIGHT, SPAN, SPHERE, SPOT, SQUARE, SUBTRACT, SVG, TAB, TARGA, TAU, TEXT, THIRD_PI, THRESHOLD, TIFF, TOP, TRIANGLE, TRIANGLE_FAN, TRIANGLE_STRIP, TRIANGLES, TWO_PI, UP, VERTEX, WAIT, WHITESPACE, WINDOWS, X, Y, Z
Constructor Summary

Constructors

Constructor

Description

WaveSynthEditor()
Method Summary

Modifier and Type

Method

Description

void

adjustAudioGain(float g)

Sets audioOut.gain.

void

ampField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

(package private) void

applyPendingWaveEdits()

Run deferred GUI edits.

(package private) void

audioMouseClick(int mx, int my)

Bottleneck method for triggering an audio event at display/mouse coordinates (mx, my).

void

blendField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

buildGlobalPanel()

void

buildWaveDataPanel()

int

calcSampleLen()

void

capCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)

void

capSpinner_hit(g4p_controls.GSpinner source, g4p_controls.GEvent event)

void

capturePhaseValues(ArrayList<WaveData> waveDataList)

Applies the current phase values to the initial values of the WaveSynth, so that the current state of the image display will appear as the first frame of animation.

void

comments_hit(g4p_controls.GTextArea source, g4p_controls.GEvent event)

(package private) void

commitCurrentWaveData()

Single commit method for all WaveData fields.

void

createColorChooserGUI(int x, int y, int w, int h, int border)

void

createCommentsField()

void

createControlWindow()

void

createGlobalControls()

void

createGUI()

Initialize GUI and control window -- initialize wavesynth before calling this method.

HilbertGen

createHilbertGen(int edgeLength)

void

createWaveDataControls()

void

cycles_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

dc_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

decWaveData()

void

delWave_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

draw()

void

drawCircle(int x, int y)

Draws a circle at the location of an audio trigger (mouseDown event).

void

dupWave_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

enableWDListControls(boolean enable)

(package private) void

ensureSamplerReady()

Prepares Sampler instruments and assets

void

fileSelectedOpen(File selection)

void

fileSelectedWrite(File selection)

void

fpsMenu_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)

void

freqField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

gammaField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

handleColorChooser(g4p_controls.GButton button, g4p_controls.GEvent event)

G4P code for color chooser.

MultiGen

hilbertLoop3x2(int genW, int genH)

Generates a looping fractal signal path consisting of 6 HilbertGens, arranged 3 wide and 2 tall, to fit a 3 * genW by 2 * genH image.

void

histoCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)

void

histoHigh_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

histoLow_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

imageFileSelectedWrite(File selection)

void

incWaveData()

void

initAudio()

CALL IN SETUP()

void

initGlobalPanel()

ArrayList<WaveData>

initWaveDataList()

void

initWaveDataPanel()

WaveSynth

initWaveSynth(WaveSynth synth)

Sets the initial values of a WaveSynth instance.

void

keyPressed()

built-in keyPressed handler, forwards events to parseKey.

(package private) void

listDisplays()

Get a list of available displays and output information about them to the console.

void

loadGlobalPanelValues()

void

loadWaveData()

void

loadWaveDataPanelValues(WaveData wd)

static void

main(String[] args)

Used in Eclipse IDE and other Java environments to launch application.

(package private) void

markWaveSynthAudioDirty()

(package private) void

markWaveSynthVisualDirty()

void

mouseClicked()

void

muteWave_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)

void

newWave_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

next_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

openBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

parseKey(char theKey, int keyCode)

ParseKey handles keyPressed events.

void

phaseField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

int

playSample(int samplePos, int samplelen, float amplitude)

Plays an audio sample with WFSamplerInstrument and default ADSR.

int

playSample(int samplePos, int samplelen, float amplitude, ADSRParams env)

Plays an audio sample with WFSamplerInstrument and custom ADSR.

void

prev_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

printWaveData(WaveSynth synth)

Outputs current wavesynth settings and WaveData list.

void

printWDStates(ArrayList<WaveData> waveDataList)

Prints mute/active status of WaveData operators in supplied waveDataList.

void

recordCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)

(package private) void

refreshAudioIfDirty()

void

refreshBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

refreshGlobalPanel()

processing.core.PImage

renderFrame(int frame)

void

renderSignal()

Calls WaveSynth to render a audio sample array derived from the same math that creates the image, then loads the derived audio data to audioBuffer, ready to be played.

(package private) void

renderVisualFrame()

void

resizeWindow()

void

runTimeArray()

Run the animation for audio events.

void

runVideoBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

(package private) int

sampleToScreenX(int x)

(package private) int

sampleToScreenY(int y)

void

saveAsBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

static void

saveAudioToFile(float[] samples, float sampleRate, String fileName)

Saves audio data to 16-bit integer PCM format, which Processing can also open.

void

saveBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)

void

saveImageToFile(processing.core.PImage img, String fileName)

void

saveToAudio()

Save audio buffer to a file called "wavesynth_(wsIndex).wav".

void

saveToImage()

void

saveWaveData()

void

scaleAmps(ArrayList<WaveData> waveDataList, float scale)

Scales the amplitude of an ArrayList of WaveData objects.

void

scaleFreqs(ArrayList<WaveData> waveDataList, float scale)

Scales the frequencies of an ArrayList of WaveData objects.

(package private) int

screenToSampleX(int x)

(package private) int

screenToSampleY(int y)

void

setAudioGain(float g)

Sets audioOut.gain.

void

setScaling()

Calculates window sizes for displaying mapImage at actual size and at full screen.

void

settings()

The settings() method is required when setting size from variables

void

setup()

Prepare for launch by setting all variables required for the draw() loop.

void

setWaveDataPanelColor(int sel_col)

void

shiftColors(ArrayList<WaveData> waveDataList, float shift)

Shifts the colors of an ArrayList of WaveData objects.

void

shiftPhases(ArrayList<WaveData> waveDataList, float shift)

Shifts the phase of an ArrayList of WaveData objects.

void

showHelp()

void

showPhaseValues(ArrayList<WaveData> waveDataList)

Prints the phase values of an ArrayList of WaveData objects.

void

soloWave_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)

void

stepAnimation()

Step through the animation, called by the draw() method.

void

stepsSpinner_hit(g4p_controls.GSpinner source, g4p_controls.GEvent event)

void

stepWaveData(boolean up)

Steps through the WaveSynth's list of WaveData, shows the current WaveData operator in the control panel.

void

stop()

turn off audio processing when we exit

void

stopSpinner_hit(g4p_controls.GSpinner source, g4p_controls.GEvent event)

void

swapGen()

void

swapGen(PixelMapGen gen)

Sets a new PixelMapGen for a PixelAudioMapper

private void

syncEditorAfterWaveSynthLoad()

void

toggleAnimation()

Turn animation on or off.

void

toggleLooping()

void

toggleRecording()

Turn video recording on or off.

void

toggleWDMute(int elem)

Mutes or unmutes a WaveData operator (view in the control panel).

void

toggleZeroCrossing(boolean newFindZero)

void

unmuteAllWD(ArrayList<WaveData> waveDataList)

Unmutes all the operators in supplied waveDataList.

(package private) void

updateAudioChain(float[] sig)

(package private) void

updateAudioChain(float[] sig, float bufferSampleRate)

Bottleneck "commit" method for audio state.

void

videoNameField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)

void

waveDataPanel_hit(g4p_controls.GPanel source, g4p_controls.GEvent event)

void

winDraw(processing.core.PApplet appc, g4p_controls.GWinData data)

void

writeToScreen(String msg, int x, int y, int weight, boolean isWhite)

Displays a line of text to the screen, usually in the draw loop.

Methods inherited from class processing.core.PApplet
abs, abs, acos, alpha, ambient, ambient, ambient, ambientLight, ambientLight, append, append, append, append, append, append, applyMatrix, applyMatrix, applyMatrix, applyMatrix, applyMatrix, arc, arc, arraycopy, arraycopy, arraycopy, arrayCopy, arrayCopy, arrayCopy, asin, atan, atan2, attrib, attrib, attrib, attribColor, attribNormal, attribPosition, background, background, background, background, background, background, background, beginCamera, beginContour, beginPGL, beginRaw, beginRaw, beginRecord, beginRecord, beginShape, beginShape, bezier, bezier, bezierDetail, bezierPoint, bezierTangent, bezierVertex, bezierVertex, binary, binary, binary, binary, blend, blend, blendColor, blendMode, blue, box, box, brightness, calcSketchPath, camera, camera, ceil, checkAlpha, checkExtension, choice, choice, circle, clear, clip, color, color, color, color, color, color, color, color, colorMode, colorMode, colorMode, colorMode, concat, concat, concat, concat, concat, concat, concat, constrain, constrain, copy, copy, copy, cos, createFont, createFont, createFont, createGraphics, createGraphics, createGraphics, createImage, createInput, createInput, createInputRaw, createOutput, createOutput, createPath, createPath, createPrimaryGraphics, createReader, createReader, createReader, createShape, createShape, createShape, createWriter, createWriter, createWriter, cursor, cursor, cursor, cursor, curve, curve, curveDetail, curvePoint, curveTangent, curveTightness, curveVertex, curveVertex, dataFile, dataPath, day, debug, degrees, delay, dequeueEvents, desktopFile, desktopPath, die, die, directionalLight, displayDensity, displayDensity, dispose, dist, dist, edge, ellipse, ellipseMode, emissive, emissive, emissive, endCamera, endContour, endPGL, endRaw, endRecord, endShape, endShape, exec, exec, exit, exitActual, exitCalled, exp, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, expand, fill, fill, fill, fill, fill, fill, filter, filter, filter, floor, flush, focusGained, focusLost, frameMoved, frameRate, frustum, fullScreen, fullScreen, fullScreen, fullScreen, get, get, get, getExtension, getGraphics, getMatrix, getMatrix, getMatrix, getSurface, green, handleDraw, handleKeyEvent, handleMethods, handleMouseEvent, hex, hex, hex, hex, hideMenuBar, hint, hour, hue, image, image, image, imageMode, initSurface, insertFrame, isLooping, join, join, keyPressed, keyReleased, keyReleased, keyTyped, keyTyped, launch, lerp, lerpColor, lerpColor, lightFalloff, lights, lightSpecular, line, line, link, listFiles, listFiles, listPaths, loadBytes, loadBytes, loadBytes, loadFont, loadImage, loadImage, loadJSONArray, loadJSONArray, loadJSONObject, loadJSONObject, loadPixels, loadShader, loadShader, loadShape, loadShape, loadStrings, loadStrings, loadStrings, loadStrings, loadTable, loadTable, loadXML, loadXML, log, loop, mag, mag, main, main, main, makeGraphics, map, mask, match, matchAll, max, max, max, max, max, max, method, millis, min, min, min, min, min, min, minute, modelX, modelY, modelZ, month, mouseClicked, mouseDragged, mouseDragged, mouseEntered, mouseEntered, mouseExited, mouseExited, mouseMoved, mouseMoved, mousePressed, mousePressed, mouseReleased, mouseReleased, mouseWheel, mouseWheel, nf, nf, nf, nf, nf, nf, nfc, nfc, nfc, nfc, nfp, nfp, nfp, nfp, nfs, nfs, nfs, nfs, noClip, noCursor, noFill, noise, noise, noise, noiseDetail, noiseDetail, noiseSeed, noLights, noLoop, norm, normal, noSmooth, noStroke, noTexture, noTint, orientation, ortho, ortho, ortho, parseBoolean, parseBoolean, parseBoolean, parseBoolean, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseByte, parseChar, parseChar, parseChar, parseChar, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseFloat, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseInt, parseJSONArray, parseJSONObject, parseXML, parseXML, pause, perspective, perspective, pixelDensity, point, point, pointLight, pop, popMatrix, popStyle, postEvent, postWindowMoved, postWindowResized, pow, print, print, print, print, print, print, print, print, print, printArray, printCamera, println, println, println, println, println, println, println, println, println, println, println, printMatrix, printProjection, printStackTrace, push, pushMatrix, pushStyle, quad, quadraticVertex, quadraticVertex, radians, random, random, randomGaussian, randomSeed, rect, rect, rect, rectMode, red, redraw, registerMethod, requestImage, requestImage, resetMatrix, resetShader, resetShader, resume, reverse, reverse, reverse, reverse, reverse, reverse, reverse, rotate, rotate, rotateX, rotateY, rotateZ, round, runSketch, runSketch, runSketch, saturation, save, saveBytes, saveBytes, saveBytes, saveFile, saveFrame, saveFrame, saveJSONArray, saveJSONArray, saveJSONObject, saveJSONObject, savePath, saveStream, saveStream, saveStream, saveStream, saveStream, saveStrings, saveStrings, saveStrings, saveTable, saveTable, saveXML, saveXML, scale, scale, scale, screenX, screenX, screenY, screenY, screenZ, second, selectCallback, selectFolder, selectFolder, selectFolder, selectInput, selectInput, selectInput, selectOutput, selectOutput, selectOutput, set, set, setMatrix, setMatrix, setMatrix, setSize, shader, shader, shape, shape, shape, shapeMode, shearX, shearY, shell, shininess, shorten, shorten, shorten, shorten, shorten, shorten, shorten, showDepthWarning, showDepthWarningXYZ, showMethodWarning, showMissingWarning, showSurface, showVariationWarning, sin, size, size, size, sketchDisplay, sketchFile, sketchFullScreen, sketchHeight, sketchOutputPath, sketchOutputStream, sketchPath, sketchPath, sketchPixelDensity, sketchRenderer, sketchSmooth, sketchWidth, sketchWindowColor, smooth, smooth, sort, sort, sort, sort, sort, sort, sort, sort, sort, sort, specular, specular, specular, sphere, sphereDetail, sphereDetail, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, splice, split, split, splitTokens, splitTokens, spotLight, sq, sqrt, square, start, startSurface, str, str, str, str, str, str, str, str, str, str, stroke, stroke, stroke, stroke, stroke, stroke, strokeCap, strokeJoin, strokeWeight, style, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, subset, tan, text, text, text, text, text, text, text, text, text, text, text, textAlign, textAlign, textAscent, textDescent, textFont, textFont, textLeading, textMode, textSize, texture, textureMode, textureWrap, textWidth, textWidth, textWidth, thread, tint, tint, tint, tint, tint, tint, translate, translate, triangle, trim, trim, unbinary, unhex, unregisterMethod, updatePixels, updatePixels, urlDecode, urlEncode, vertex, vertex, vertex, vertex, vertex, windowMove, windowMoved, windowRatio, windowResizable, windowResize, windowResized, windowTitle, year

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Details
- bgFillColor

  int bgFillColor
- isDesignMode

  boolean isDesignMode

  Set designMode true to use designWidth and designHeight for display width and height. Set to false to use renderWidth and renderHeight for display width and height. Set renderWidth and renderHeight to the dimensions of the PixelMapGen you want render and animate.
- genWidth

  int genWidth
- genHeight

  int genHeight
- designWidth

  int designWidth
- designHeight

  int designHeight
- renderWidth

  int renderWidth
- renderHeight

  int renderHeight
- isOversize

  boolean isOversize
- isFitToScreen

  boolean isFitToScreen
- maxWindowWidth

  int maxWindowWidth
- maxWindowHeight

  int maxWindowHeight
- scaledWindowWidth

  int scaledWindowWidth
- scaledWindowHeight

  int scaledWindowHeight
- windowScale

  float windowScale
- pixelaudio

  PixelAudio pixelaudio
- hGen

  HilbertGen hGen
- zGen

  DiagonalZigzagGen zGen
- bGenHz

  BoustropheGen bGenHz
- bGenVt

  BoustropheGen bGenVt
- mGen

  MultiGen mGen
- gen

  PixelMapGen gen
- mapper

  PixelAudioMapper mapper
- mapSize

  int mapSize
- mapImage

  processing.core.PImage mapImage
- offscreen

  processing.core.PGraphics offscreen
- rgbSignal

  int[] rgbSignal
- wdList

  ArrayList<WaveData> wdList
- wavesynth

  WaveSynth wavesynth
- wsCrew

  ArrayList<WaveSynth> wsCrew
- currentWD

  WaveData currentWD
- waveDataIndex

  int waveDataIndex
- currentDataFile

  File currentDataFile
- currentFileName

  String currentFileName
- videoFilename

  String videoFilename
- comments

  String comments
- snapCount

  int snapCount
- isCaptureFrames

  boolean isCaptureFrames
- videx

  com.hamoid.VideoExport videx
- json

  processing.data.JSONObject json
- dataPath

  String dataPath
- videoPath

  String videoPath
- jsonFile

  String jsonFile
- jsonFolder

  String jsonFolder
- phaseShift

  float phaseShift

  Sets how much to shift phase with shiftPhases()
- colorShift

  float colorShift

  Sets how much to shift colors with shiftColors() 1.0f/24 is 15 degrees around the 360-degree HSB color circle, expressed as a fraction in the range (0..1).
- freqFac

  float freqFac

  Sets how much to scale frequencies with scaleFreqs() tritone (half octave): (Math.sqrt(2.0)); semitone: (Math.pow(2.0, 1.0/12));
- ampFac

  float ampFac

  Sets how much to scale amplitudes with scaleAmps()
- gainInc

  float gainInc

  Sets the increment to apply to wavesynth gain (brightness)
- isAnimating

  boolean isAnimating
- isLooping

  boolean isLooping
- oldIsAnimating

  boolean oldIsAnimating
- animSteps

  int animSteps
- animStop

  int animStop
- isRecordingVideo

  boolean isRecordingVideo
- videoFrameRate

  int videoFrameRate
- step

  int step
- startTime

  int startTime
- stopTime

  int stopTime
- isVerbose

  boolean isVerbose
- isSecondScreen

  boolean isSecondScreen
- screen2x

  int screen2x
- screen2y

  int screen2y
- minim

  ddf.minim.Minim minim

  Minim audio library
- audioOut

  ddf.minim.AudioOutput audioOut
- sampleRate

  float sampleRate
- audioSignal

  float[] audioSignal
- audioBuffer

  ddf.minim.MultiChannelBuffer audioBuffer
- audioLength

  int audioLength
- outputGain

  float outputGain
- noteDuration

  int noteDuration
- samplelen

  int samplelen
- pool

  PASamplerInstrumentPool pool
- poolSize

  int poolSize
- samplerMaxVoices

  int samplerMaxVoices
- samplerGain

  float samplerGain
- samplerEnv

  ADSRParams samplerEnv
- maxAmplitude

  float maxAmplitude
- attackTime

  float attackTime
- decayTime

  float decayTime
- sustainLevel

  float sustainLevel
- releaseTime

  float releaseTime
- sampleX

  int sampleX
- sampleY

  int sampleY
- samplePos

  int samplePos
- timeLocsArray

  ArrayList<TimedLocation> timeLocsArray
- count

  int count
- wsIndex

  int wsIndex
- isFindZeroCrossing

  boolean isFindZeroCrossing
- imageDirty

  boolean imageDirty
- audioDirty

  boolean audioDirty
- screenMsg

  String screenMsg
- showAnimationStatus

  boolean showAnimationStatus
- pendingWaveEdits

  final ConcurrentLinkedQueue<Runnable> pendingWaveEdits

  Storage for deferred edits to draw() loop.
- controlWindow

  g4p_controls.GWindow controlWindow
- commentsField

  g4p_controls.GTextArea commentsField
- globalPanel

  g4p_controls.GPanel globalPanel
- blendField

  g4p_controls.GTextField blendField
- blend_label

  g4p_controls.GLabel blend_label
- gammaField

  g4p_controls.GTextField gammaField
- gamma_label

  g4p_controls.GLabel gamma_label
- noiseField

  g4p_controls.GTextField noiseField
- noise_label

  g4p_controls.GLabel noise_label
- stepsSpinner

  g4p_controls.GSpinner stepsSpinner
- steps_label

  g4p_controls.GLabel steps_label
- stopSpinner

  g4p_controls.GSpinner stopSpinner
- stop_label

  g4p_controls.GLabel stop_label
- histoCheck

  g4p_controls.GCheckbox histoCheck
- histoHighField

  g4p_controls.GTextField histoHighField
- histoHigh_label

  g4p_controls.GLabel histoHigh_label
- histoLowField

  g4p_controls.GTextField histoLowField
- histoLow_label

  g4p_controls.GLabel histoLow_label
- fps_label

  g4p_controls.GLabel fps_label
- fpsMenu

  g4p_controls.GDropList fpsMenu
- recordCheck

  g4p_controls.GCheckbox recordCheck
- refreshBtn

  g4p_controls.GButton refreshBtn
- capSpinner

  g4p_controls.GSpinner capSpinner
- cap_label

  g4p_controls.GLabel cap_label
- capCheck

  g4p_controls.GCheckbox capCheck
- runVideoBtn

  g4p_controls.GButton runVideoBtn
- videoNameField

  g4p_controls.GTextField videoNameField
- videoName_label

  g4p_controls.GLabel videoName_label
- openBtn

  g4p_controls.GButton openBtn
- saveBtn

  g4p_controls.GButton saveBtn
- saveAsBtn

  g4p_controls.GButton saveAsBtn
- waveDataPanel

  g4p_controls.GPanel waveDataPanel
- freqField

  g4p_controls.GTextField freqField
- freq_label

  g4p_controls.GLabel freq_label
- ampField

  g4p_controls.GTextField ampField
- amp_label

  g4p_controls.GLabel amp_label
- phaseField

  g4p_controls.GTextField phaseField
- phase_label

  g4p_controls.GLabel phase_label
- cyclesField

  g4p_controls.GTextField cyclesField
- cycles_label

  g4p_controls.GLabel cycles_label
- dcField

  g4p_controls.GTextField dcField
- dc_label

  g4p_controls.GLabel dc_label
- prevBtn

  g4p_controls.GButton prevBtn
- nextBtn

  g4p_controls.GButton nextBtn
- waveDataLabel

  g4p_controls.GLabel waveDataLabel
- muteWave

  g4p_controls.GCheckbox muteWave
- soloWave

  g4p_controls.GCheckbox soloWave
- newWaveBtn

  g4p_controls.GButton newWaveBtn
- dupWaveBtn

  g4p_controls.GButton dupWaveBtn
- delWaveBtn

  g4p_controls.GButton delWaveBtn
- btnColor

  g4p_controls.GButton btnColor
- colorView

  g4p_controls.GView colorView
- colorTitle

  g4p_controls.GLabel colorTitle
- colorPG

  processing.core.PGraphics colorPG
- sel_col

  int sel_col
Constructor Details
- WaveSynthEditor

  public WaveSynthEditor()
Method Details
- main

  public static void main(String[] args)

  Used in Eclipse IDE and other Java environments to launch application. Delete in Processing.

  Parameters:

  args -
- settings

  public void settings()

  The settings() method is required when setting size from variables

  Overrides:

  settings in class processing.core.PApplet
- setup

  public void setup()

  Prepare for launch by setting all variables required for the draw() loop. Initialize the PixelAudio library, then create some PixelMapGens and a PixelAudioMapper Next set up a WaveSynth and point our global mapImage to the WaveSynth's variable mapImage. Check for extra displays, decide where to show the application window, and set the window scaling variables. Finally, build the GUI (using G4P library).

  Overrides:

  setup in class processing.core.PApplet
- stop

  public void stop()

  turn off audio processing when we exit

  Overrides:

  stop in class processing.core.PApplet
- createHilbertGen

  public HilbertGen createHilbertGen(int edgeLength)

  Parameters:

  edgeLength - length in pixels of Hilbert curve, must be a power of 2.

  Returns:

  a HilbertGen with its mapping arrays initialized
- hilbertLoop3x2

  public MultiGen hilbertLoop3x2(int genW, int genH)

  Generates a looping fractal signal path consisting of 6 HilbertGens, arranged 3 wide and 2 tall, to fit a 3 * genW by 2 * genH image. This particular MultiGen configuration is used so extensively in my sample code that I've given it a factory method in the HilbertGen class. It's written out here so you can see how it works. Note that genH must equal genW and both must be powers of 2. For the image size we're using in this example, genW = image width / 3 and genH = image height / 2.

  Parameters:

  genW - width of each HilbertGen

  genH - height of each HilbertGen

  Returns:

  a 3 x 2 array of Hilbert curves, connected in a loop (3 * genWidth by 2 * genHeight pixels)
- initWaveDataList

  public ArrayList<WaveData> initWaveDataList()

  Returns:

  an ArrayList of WaveData objects used to initialize a WaveSynth
- initWaveSynth

  public WaveSynth initWaveSynth(WaveSynth synth)

  Sets the initial values of a WaveSynth instance. Note particularly how varying sampleRate can change the appearance of the WaveSynth mapImage. SampleRate should not change the sound of the audio signal -- only the image changes. Some sampling rates are not standard for saving to file, so you may want to use a standard rate such as 48000Hz if you want to save audio to a file.

  Parameters:

  synth - a WaveSynth instance

  Returns:

  the WaveSynth with initial values set
- draw

  public void draw()

  Overrides:

  draw in class processing.core.PApplet
- writeToScreen

  public void writeToScreen(String msg, int x, int y, int weight, boolean isWhite)

  Displays a line of text to the screen, usually in the draw loop. Handy for debugging. typical call: writeToScreen("When does the mind stop and the world begin?", 64, 1000, 24, true);

  Parameters:

  msg - message to write

  x - x coordinate

  y - y coordinate

  weight - font weight

  isWhite - if true, white text, otherwise, black text
- stepAnimation

  public void stepAnimation()

  Step through the animation, called by the draw() method. Updates step and video recording state, but does not render or save frames.
- renderFrame

  public processing.core.PImage renderFrame(int frame)
- markWaveSynthVisualDirty

  void markWaveSynthVisualDirty()
- markWaveSynthAudioDirty

  void markWaveSynthAudioDirty()
- renderVisualFrame

  void renderVisualFrame()
- refreshAudioIfDirty

  void refreshAudioIfDirty()
- listDisplays

  void listDisplays()

  Get a list of available displays and output information about them to the console. Sets screen2x, screen2y, displayWidth and displayHeight from dimensions of a second display.
- setScaling

  public void setScaling()

  Calculates window sizes for displaying mapImage at actual size and at full screen. Press the 'r' key to resize the display window. This method will result in display on a second screen, if one is available. If mapImage is smaller than the screen, mapImage is displayed at size on startup and resizing zooms the image. If mapImage is bigger than the display, mapImage is fit to the screen on startup and resizing shows it at full size, partially filling the window.
- resizeWindow

  public void resizeWindow()
- screenToSampleX

  int screenToSampleX(int x)
- screenToSampleY

  int screenToSampleY(int y)
- sampleToScreenX

  int sampleToScreenX(int x)
- sampleToScreenY

  int sampleToScreenY(int y)
- mouseClicked

  public void mouseClicked()

  Overrides:

  mouseClicked in class processing.core.PApplet
- audioMouseClick

  void audioMouseClick(int mx, int my)

  Bottleneck method for triggering an audio event at display/mouse coordinates (mx, my).

  Parameters:

  mx -

  my -
- keyPressed

  public void keyPressed()

  built-in keyPressed handler, forwards events to parseKey.

  Overrides:

  keyPressed in class processing.core.PApplet
- parseKey

  public void parseKey(char theKey, int keyCode)

  ParseKey handles keyPressed events. Unlike keyPressed, it can be called by other methods. Note that keyPressed events only work when the image window, not the GUI control panel, is the active window. Click in the image display window to make it the active window.

  Parameters:

  theKey - char value of the key that was pressed
- showHelp

  public void showHelp()
- setAudioGain

  public void setAudioGain(float g)

  Sets audioOut.gain.

  Parameters:

  g - gain value for audioOut, in decibels
- adjustAudioGain

  public void adjustAudioGain(float g)

  Sets audioOut.gain.

  Parameters:

  g - gain value for audioOut, in decibels
- swapGen

  public void swapGen()
- swapGen

  public void swapGen(PixelMapGen gen)

  Sets a new PixelMapGen for a PixelAudioMapper

  Parameters:

  gen -
- toggleAnimation

  public void toggleAnimation()

  Turn animation on or off.
- toggleLooping

  public void toggleLooping()
- toggleRecording

  public void toggleRecording()

  Turn video recording on or off. Recording only takes place when animation is also on. To record a video loop, from frame 0 to the Stop Frame / Steps value in the GUI control panel, use this command sequence: Turn animation off if it is currently on. Press 'i' to go to frame 0. Press 'v' to start recording, or check record in the control panel. Press spacebar to start animation and recording. You can also just press the 'V' (capital vee) key to record from frame 0 to the stop frame.
- toggleZeroCrossing

  public void toggleZeroCrossing(boolean newFindZero)
- scaleAmps

  public void scaleAmps(ArrayList<WaveData> waveDataList, float scale)

  Scales the amplitude of an ArrayList of WaveData objects.

  Parameters:

  waveDataList - an ArrayList of WaveData objects

  scale - the amount to scale the amplitude of each WaveData object
- shiftColors

  public void shiftColors(ArrayList<WaveData> waveDataList, float shift)

  Shifts the colors of an ArrayList of WaveData objects.

  Parameters:

  waveDataList - an ArrayList of WaveData objects

  shift - the amount shift each color
- scaleFreqs

  public void scaleFreqs(ArrayList<WaveData> waveDataList, float scale)

  Scales the frequencies of an ArrayList of WaveData objects.

  Parameters:

  waveDataList - an ArrayList of WaveData objects

  scale - the amount to scale the frequency of each WaveData object
- shiftPhases

  public void shiftPhases(ArrayList<WaveData> waveDataList, float shift)

  Shifts the phase of an ArrayList of WaveData objects.

  Parameters:

  waveDataList - an ArrayList of WaveData objects

  shift - amount to shift the phase of each WaveData object
- showPhaseValues

  public void showPhaseValues(ArrayList<WaveData> waveDataList)

  Prints the phase values of an ArrayList of WaveData objects.

  Parameters:

  waveDataList - an ArrayList of WaveData objects
- capturePhaseValues

  public void capturePhaseValues(ArrayList<WaveData> waveDataList)

  Applies the current phase values to the initial values of the WaveSynth, so that the current state of the image display will appear as the first frame of animation. Save the WaveSynth to a JSON file to keep the new phase values.

  Parameters:

  waveDataList - an ArrayList of WaveData objects
- toggleWDMute

  public void toggleWDMute(int elem)

  Mutes or unmutes a WaveData operator (view in the control panel).

  Parameters:

  elem - the index number of a WaveData object stored in a WaveSynth's waveDataList field
- printWDStates

  public void printWDStates(ArrayList<WaveData> waveDataList)

  Prints mute/active status of WaveData operators in supplied waveDataList.

  Parameters:

  waveDataList - an ArrayList of WaveData objects
- unmuteAllWD

  public void unmuteAllWD(ArrayList<WaveData> waveDataList)

  Unmutes all the operators in supplied waveDataList.

  Parameters:

  waveDataList - an ArrayList of WaveData objects
- stepWaveData

  public void stepWaveData(boolean up)

  Steps through the WaveSynth's list of WaveData, shows the current WaveData operator in the control panel.

  Parameters:

  up - if true, increment waveDataIndex, otherwise, decrement it
- incWaveData

  public void incWaveData()
- decWaveData

  public void decWaveData()
- loadWaveData

  public void loadWaveData()
- fileSelectedOpen

  public void fileSelectedOpen(File selection)
- syncEditorAfterWaveSynthLoad

  private void syncEditorAfterWaveSynthLoad()
- printWaveData

  public void printWaveData(WaveSynth synth)

  Outputs current wavesynth settings and WaveData list.
- saveWaveData

  public void saveWaveData()
- fileSelectedWrite

  public void fileSelectedWrite(File selection)
- saveToImage

  public void saveToImage()
- imageFileSelectedWrite

  public void imageFileSelectedWrite(File selection)
- saveImageToFile

  public void saveImageToFile(processing.core.PImage img, String fileName)
- saveAudioToFile

  public static void saveAudioToFile(float[] samples, float sampleRate, String fileName) throws IOException, UnsupportedAudioFileException

  Saves audio data to 16-bit integer PCM format, which Processing can also open.

  Parameters:

  samples - an array of floats in the audio range (-1.0f, 1.0f)

  sampleRate - audio sample rate for the file

  fileName - name of the file to save to

  Throws:

  IOException - an Exception you'll need to catch to call this method (see keyPressed entry for 's')

  UnsupportedAudioFileException - another Exception (see keyPressed entry for 's')
- initAudio

  public void initAudio()

  CALL IN SETUP()
- ensureSamplerReady

  void ensureSamplerReady()

  Prepares Sampler instruments and assets
- updateAudioChain

  void updateAudioChain(float[] sig, float bufferSampleRate)

  Bottleneck "commit" method for audio state. Takes an arbitrary input signal and installs it as the canonical audio signal used by the application. This method: - Resizes/pads/truncates the input to mapper.getSize() - Copies the data to ensure no external aliasing - Updates audioSignal (canonical signal handled by application code) - Updates audioBuffer (audio buffer used by Minim audio library methods) - Propagates the buffer to active instruments: edit for your own instruments This is the ONLY method that should mutate the global audio signal state. In PixelAudio examples, the signal is typically loaded from a file, but it could also be signal cached in memory, a signal generated by code, audio captured live, etc.

  Parameters:

  sig - an audio signal

  bufferSampleRate - audio sample rate for sig, usually obtained when reading from an audio file
- updateAudioChain

  void updateAudioChain(float[] sig)
- saveToAudio

  public void saveToAudio()

  Save audio buffer to a file called "wavesynth_(wsIndex).wav".
- renderSignal

  public void renderSignal()

  Calls WaveSynth to render a audio sample array derived from the same math that creates the image, then loads the derived audio data to audioBuffer, ready to be played.
- playSample

  public int playSample(int samplePos, int samplelen, float amplitude, ADSRParams env)

  Plays an audio sample with WFSamplerInstrument and custom ADSR.

  Parameters:

  samplePos - position of the sample in the audio buffer

  samplelen - length of the sample (will be adjusted)

  amplitude - amplitude of the sample on playback

  env - an ADSR envelope for the sample

  Returns:

  the calculated sample length in samples
- playSample

  public int playSample(int samplePos, int samplelen, float amplitude)

  Plays an audio sample with WFSamplerInstrument and default ADSR.

  Parameters:

  samplePos - position of the sample in the audio buffer

  samplelen - length of the sample (will be adjusted)

  amplitude - amplitude of the sample on playback

  Returns:

  the calculated sample length in samples
- calcSampleLen

  public int calcSampleLen()
- runTimeArray

  public void runTimeArray()

  Run the animation for audio events.
- drawCircle

  public void drawCircle(int x, int y)

  Draws a circle at the location of an audio trigger (mouseDown event).

  Parameters:

  x - x coordinate of circle

  y - y coordinate of circle
- createGUI

  public void createGUI()

  Initialize GUI and control window -- initialize wavesynth before calling this method.
- applyPendingWaveEdits

  void applyPendingWaveEdits()

  Run deferred GUI edits.
- createControlWindow

  public void createControlWindow()
- createCommentsField

  public void createCommentsField()
- initGlobalPanel

  public void initGlobalPanel()
- createGlobalControls

  public void createGlobalControls()
- buildGlobalPanel

  public void buildGlobalPanel()
- loadGlobalPanelValues

  public void loadGlobalPanelValues()
- refreshGlobalPanel

  public void refreshGlobalPanel()
- initWaveDataPanel

  public void initWaveDataPanel()
- createWaveDataControls

  public void createWaveDataControls()
- createColorChooserGUI

  public void createColorChooserGUI(int x, int y, int w, int h, int border)
- setWaveDataPanelColor

  public void setWaveDataPanelColor(int sel_col)
- buildWaveDataPanel

  public void buildWaveDataPanel()
- loadWaveDataPanelValues

  public void loadWaveDataPanelValues(WaveData wd)
- winDraw

  public void winDraw(processing.core.PApplet appc, g4p_controls.GWinData data)
- comments_hit

  public void comments_hit(g4p_controls.GTextArea source, g4p_controls.GEvent event)
- blendField_hit

  public void blendField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- gammaField_hit

  public void gammaField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- stepsSpinner_hit

  public void stepsSpinner_hit(g4p_controls.GSpinner source, g4p_controls.GEvent event)
- stopSpinner_hit

  public void stopSpinner_hit(g4p_controls.GSpinner source, g4p_controls.GEvent event)
- histoCheck_hit

  public void histoCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
- histoHigh_hit

  public void histoHigh_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- histoLow_hit

  public void histoLow_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- videoNameField_hit

  public void videoNameField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- fpsMenu_hit

  public void fpsMenu_hit(g4p_controls.GDropList source, g4p_controls.GEvent event)
- recordCheck_hit

  public void recordCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
- refreshBtn_hit

  public void refreshBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- capSpinner_hit

  public void capSpinner_hit(g4p_controls.GSpinner source, g4p_controls.GEvent event)
- capCheck_hit

  public void capCheck_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
- runVideoBtn_hit

  public void runVideoBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- openBtn_hit

  public void openBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- saveBtn_hit

  public void saveBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- saveAsBtn_hit

  public void saveAsBtn_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- commitCurrentWaveData

  void commitCurrentWaveData()

  Single commit method for all WaveData fields.
- waveDataPanel_hit

  public void waveDataPanel_hit(g4p_controls.GPanel source, g4p_controls.GEvent event)
- freqField_hit

  public void freqField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- ampField_hit

  public void ampField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- phaseField_hit

  public void phaseField_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- cycles_hit

  public void cycles_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- dc_hit

  public void dc_hit(g4p_controls.GTextField source, g4p_controls.GEvent event)
- handleColorChooser

  public void handleColorChooser(g4p_controls.GButton button, g4p_controls.GEvent event)

  G4P code for color chooser.

  Parameters:

  button -

  event -
- prev_hit

  public void prev_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- next_hit

  public void next_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- newWave_hit

  public void newWave_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- dupWave_hit

  public void dupWave_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- delWave_hit

  public void delWave_hit(g4p_controls.GButton source, g4p_controls.GEvent event)
- muteWave_hit

  public void muteWave_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
- soloWave_hit

  public void soloWave_hit(g4p_controls.GCheckbox source, g4p_controls.GEvent event)
- enableWDListControls

  public void enableWDListControls(boolean enable)

Class WaveSynthEditor

WaveSynth Editor Sketch

SAMPLING RATES FOR AUDIO AND FOR WAVESYNTH IMAGES

Nested Class Summary

Field Summary

Fields inherited from class processing.core.PApplet

Fields inherited from interface processing.core.PConstants

Constructor Summary

Method Summary

Methods inherited from class processing.core.PApplet

Methods inherited from class java.lang.Object

Field Details

bgFillColor

isDesignMode

genWidth

genHeight

designWidth

designHeight

renderWidth

renderHeight

isOversize

isFitToScreen

maxWindowWidth

maxWindowHeight

scaledWindowWidth

scaledWindowHeight

windowScale

pixelaudio

hGen

zGen

bGenHz

bGenVt

mGen

gen

mapper

mapSize

mapImage

offscreen

rgbSignal

wdList

wavesynth

wsCrew

currentWD

waveDataIndex

currentDataFile

currentFileName

videoFilename

comments

snapCount

isCaptureFrames

videx

json

dataPath

videoPath

jsonFile

jsonFolder

phaseShift

colorShift

freqFac

ampFac

gainInc

isAnimating

isLooping

oldIsAnimating

animSteps

animStop

isRecordingVideo

videoFrameRate

step

startTime

stopTime

isVerbose

isSecondScreen

screen2x

screen2y

minim

audioOut

sampleRate

audioSignal

audioBuffer
